Solar Sensor: Service and Repair

Removing And Installing Sun Sensor

Removing sun sensor

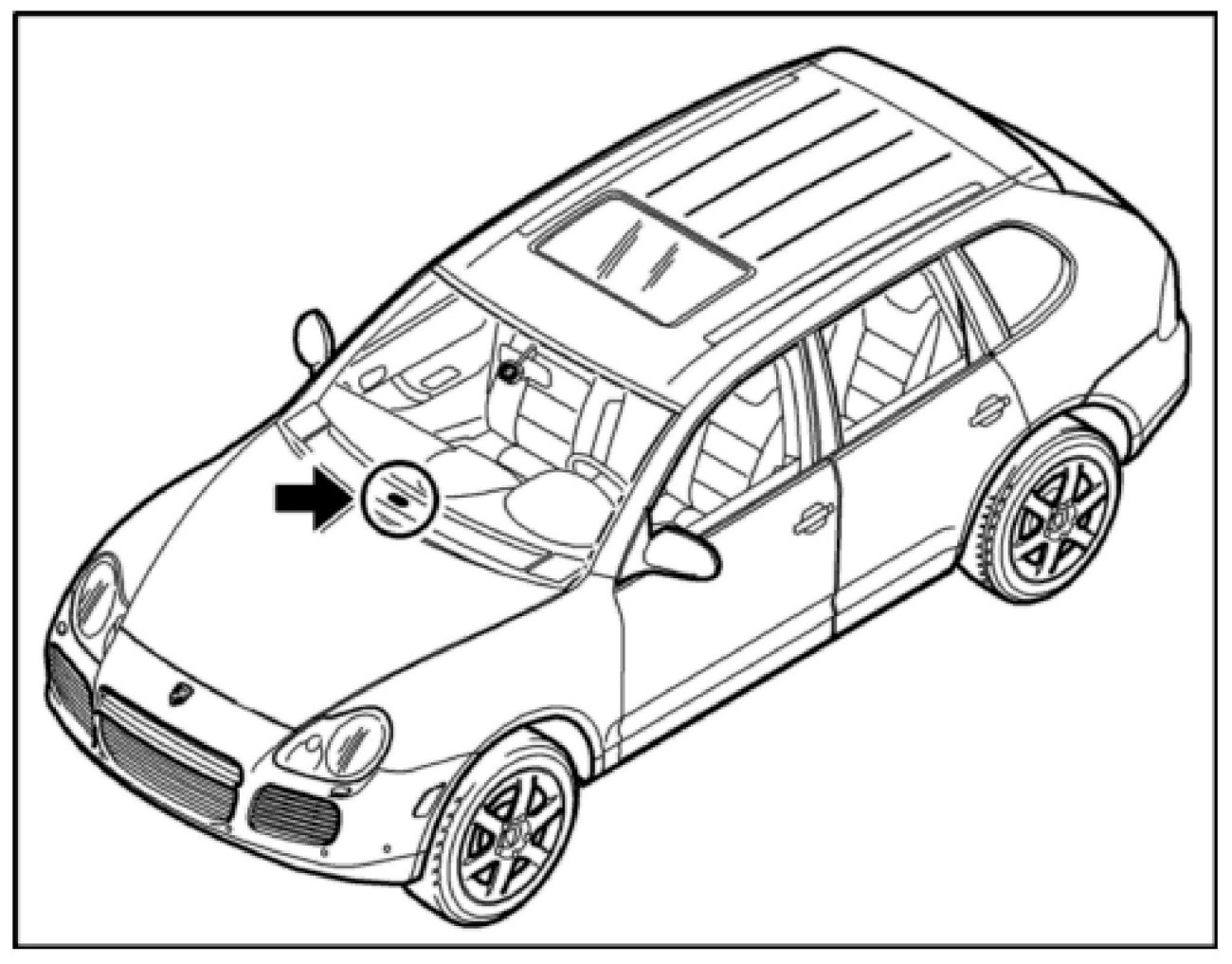

Overview







Removing sun sensor

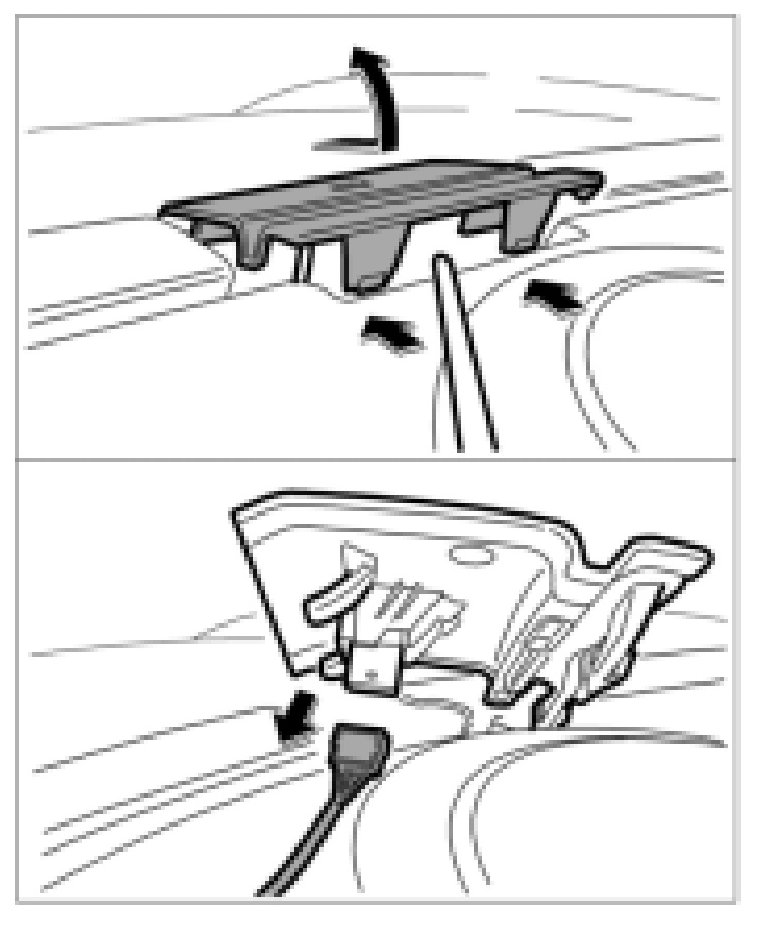

1. Lift cover on dashboard using plastic spatula and unclip.
2. Unplug electrical plug connection.

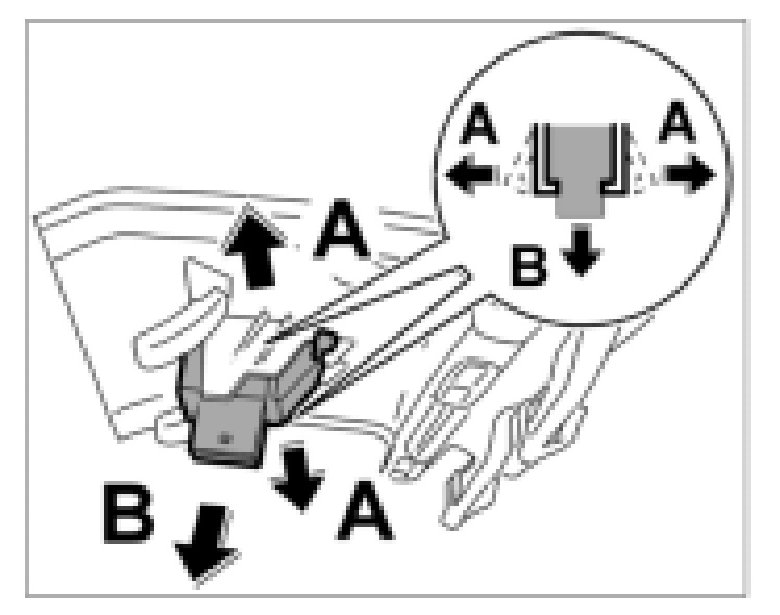

3. Pull holder -A-apart and remove sun sensor -B-.

Installing sun sensor

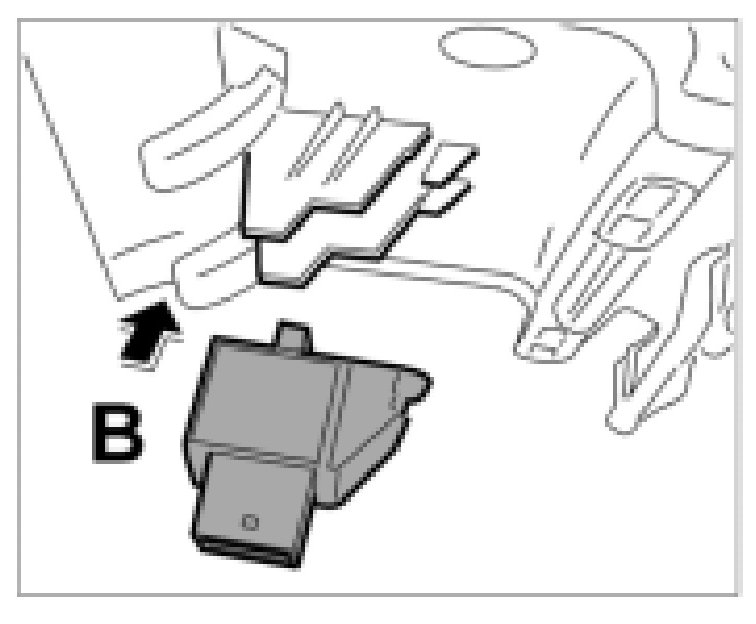

1. Press sensor -B- into the holder until the sensor lugs engage.

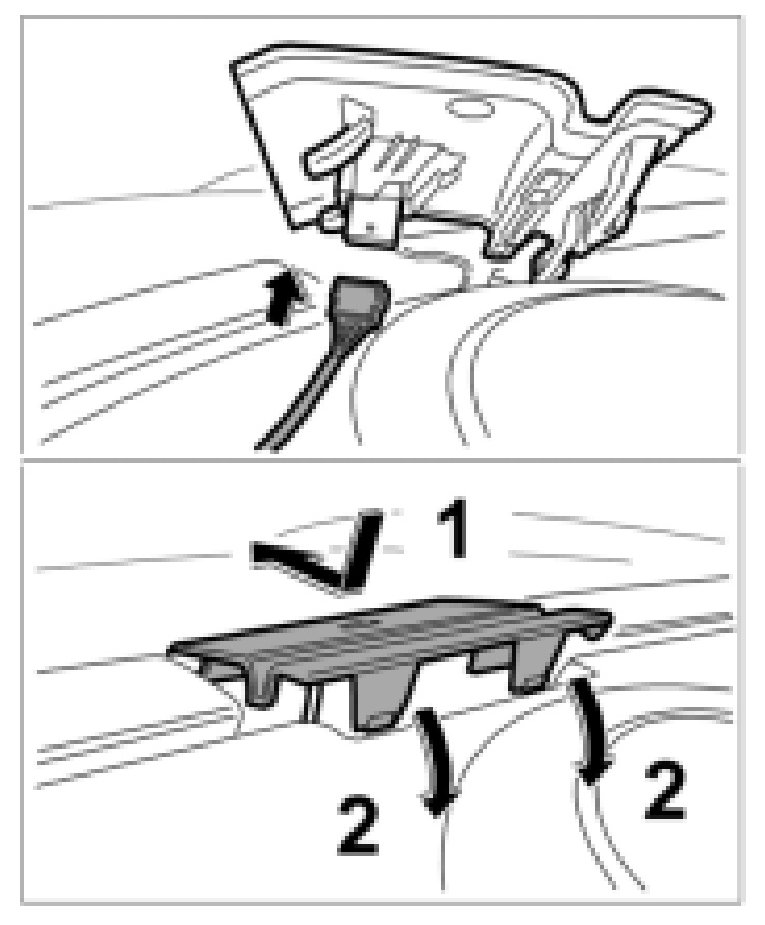

2. Plug in the electrical plug connection.
3. Position cover and clip into dashboard.
