Diagram Information and Instructions

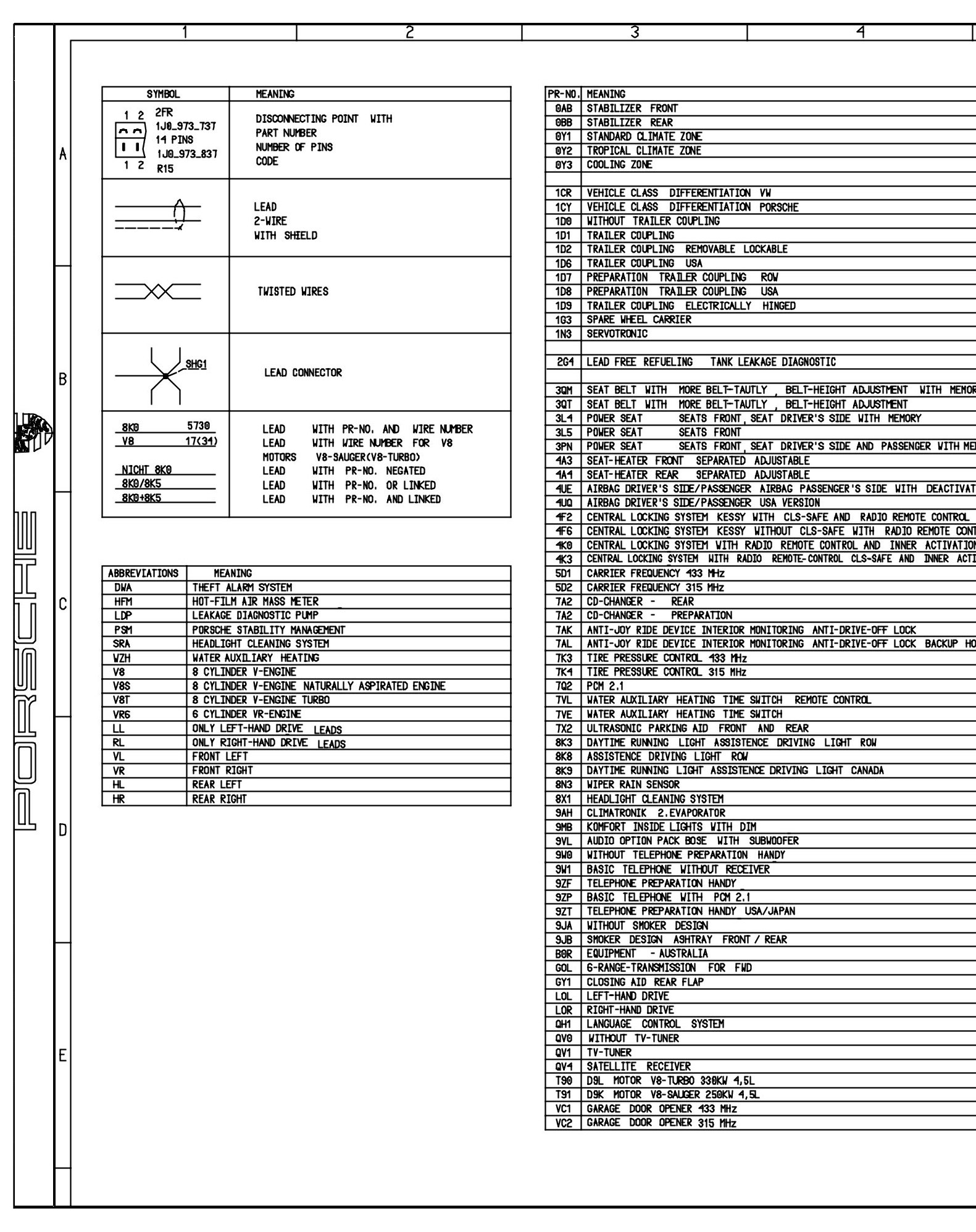

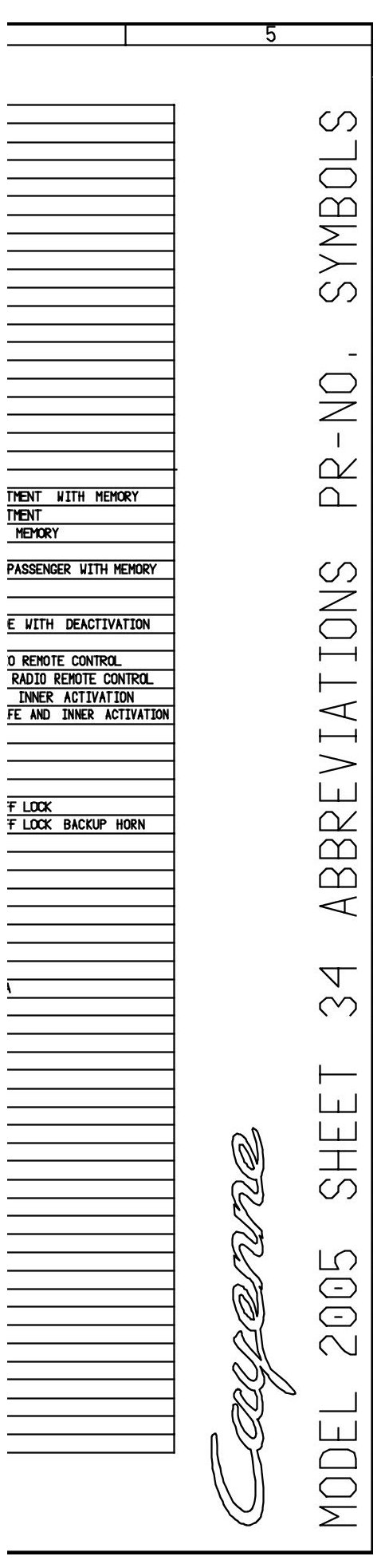

Abbreviations PR-No. Symbols - Sheet 34 (Part 1):



Abbreviations PR-No. Symbols - Sheet 34 (Part 2):
