System Specifications

Intake distributor 20 Nm
Intake distributor to support 20 Nm
Intake distributor support on cylinder head 20 Nm

Exhaust manifolds on cylinder head M8 24 Nm

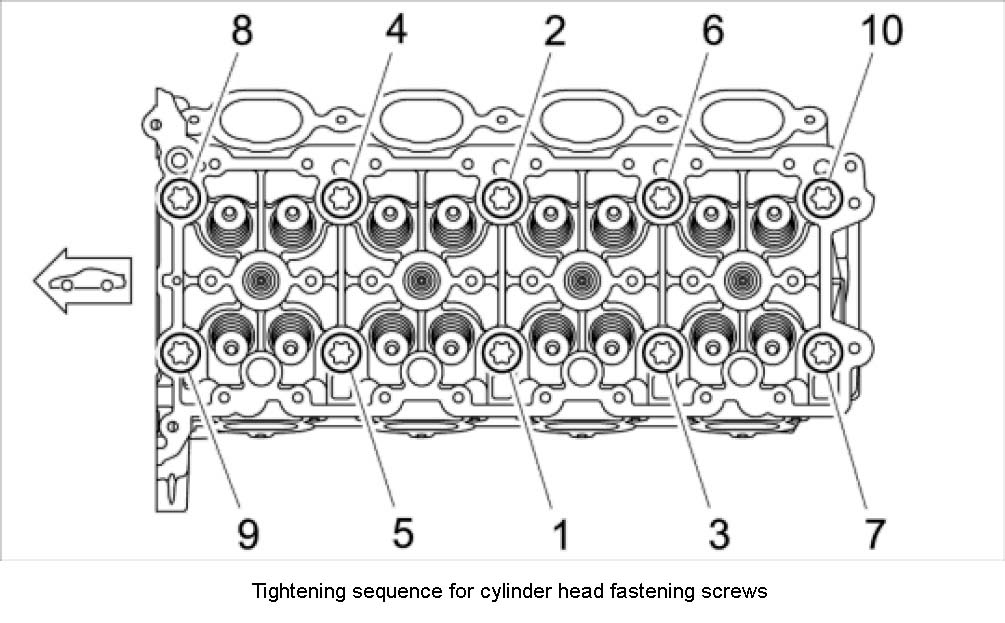

Cylinder head on crankcase
Initial tightening 30 Nm (22 ft-lb.)
Final tightening 50 Nm (37 ft-lb.)
Torque angle 2 X 90° (180°)

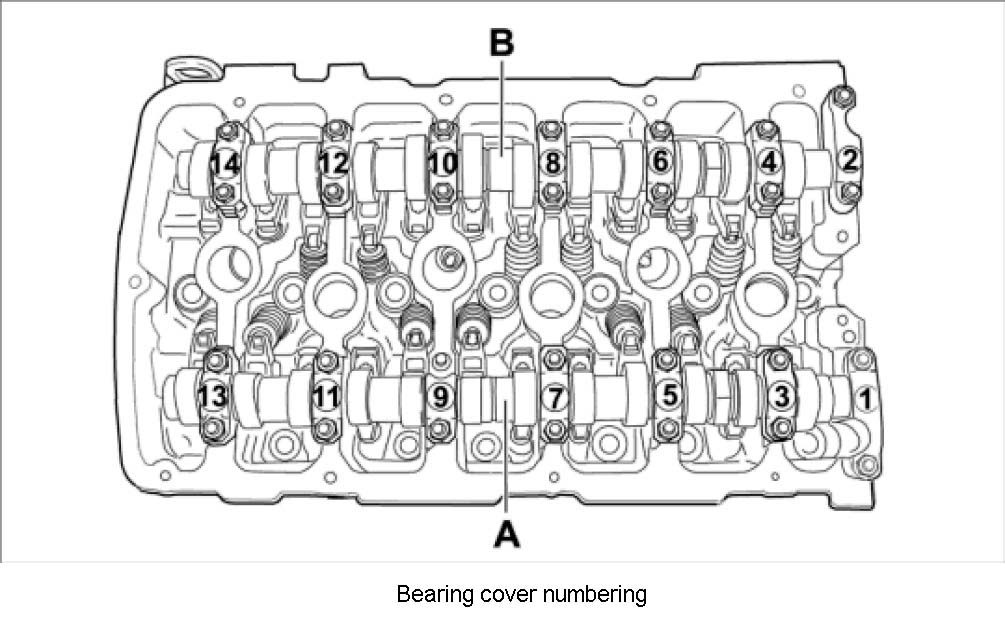

Bearing cap on cylinder head M7 X 45 10 Nm
Bearing cap on cylinder head M 7 (3.5 ft-lb.) + 90°
