Oil Temperature Sensor For ECM: Testing and Inspection

Diagnosis of Oil Temperature

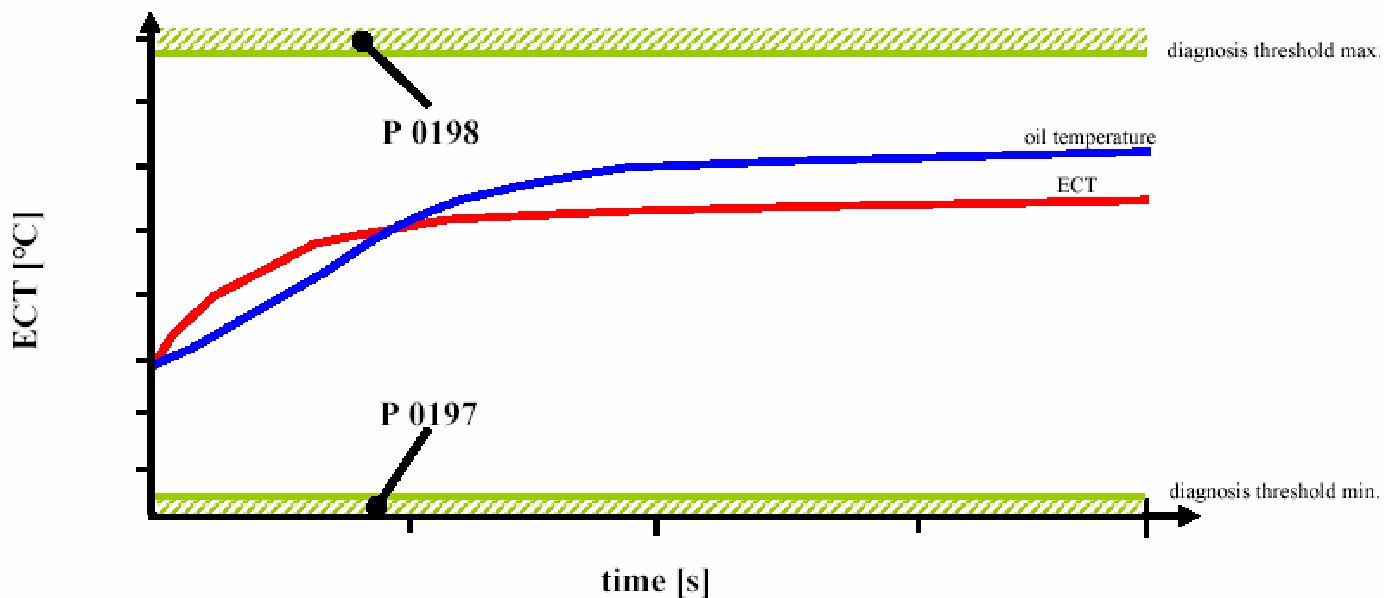

Range Check
The oil temperature is electrical O.K., if:
diagnosis threshold min. < oil temperature < diagnosis threshold max.







Plausibility check

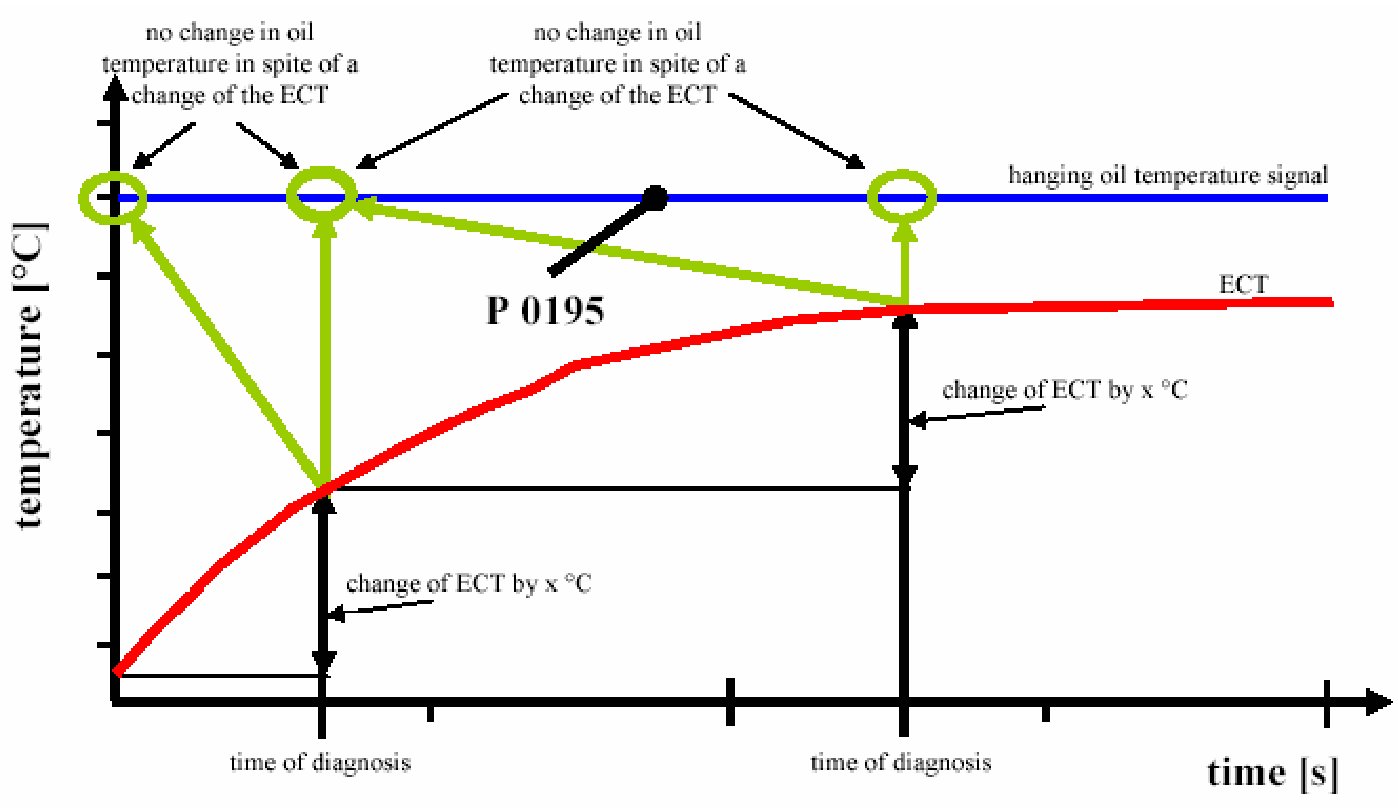

stuck signal check







flow chart:
