Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuses Support Under left side of dash, at kick panel. See Figure.
Fuses Support F Left rear of engine compartment. See Figure.
Maxi Fuse Under left side of dash, at kick panel.
Maxi Fuse (Fan) Right side of front luggage compartment.
Maxi Fuse (Rear) Left side of engine compartment, on fuses support.

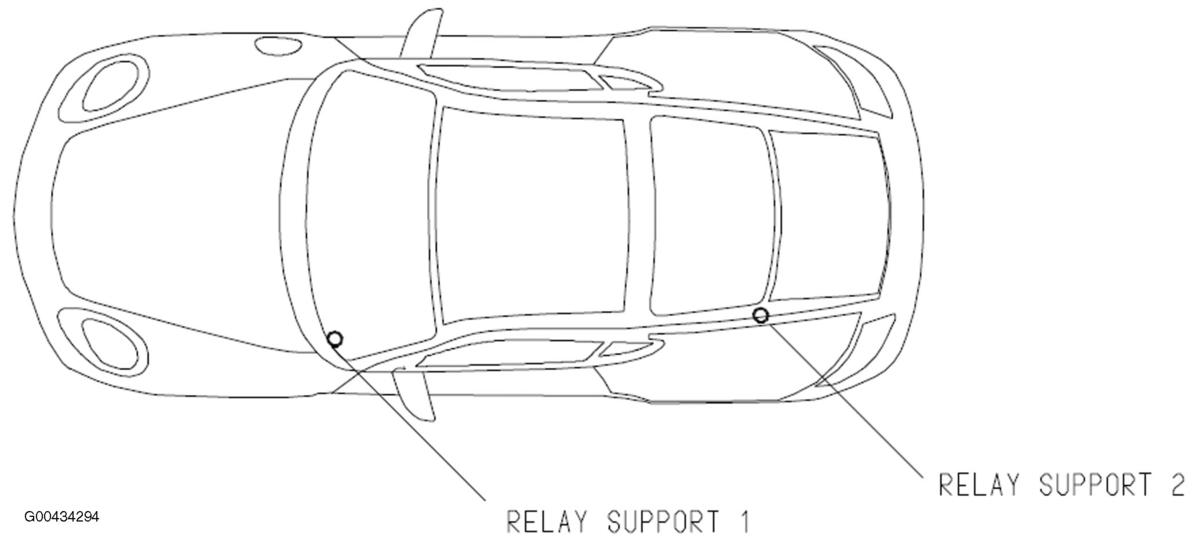

Relay Support 1 Under left side of dash, in footwell. See Figure.

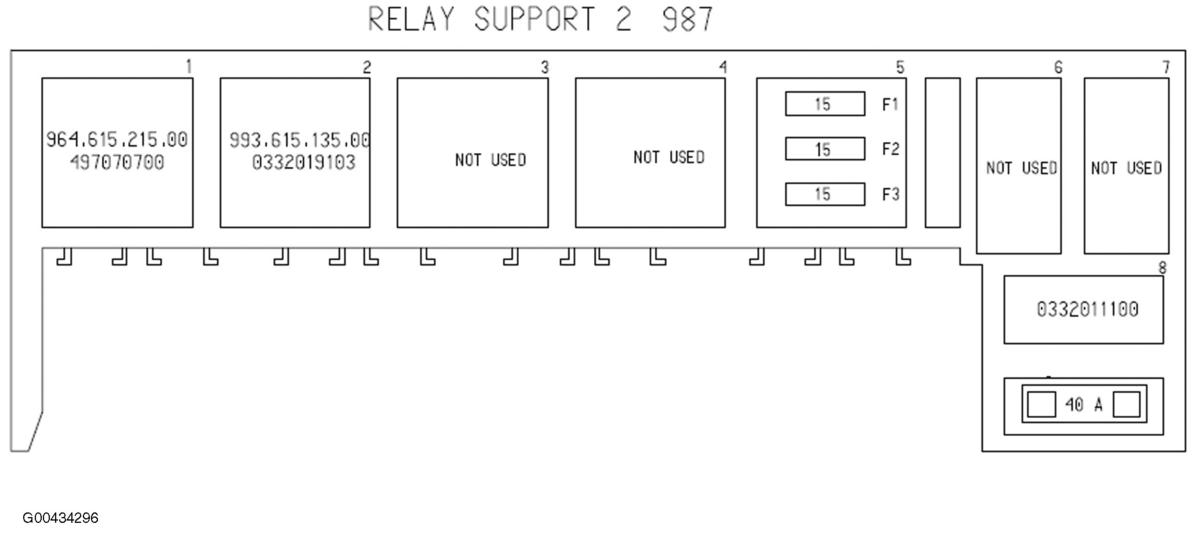

Relay Support 2 On left side of rear luggage compartment. See Figure.
