Removing AWS Control Unit

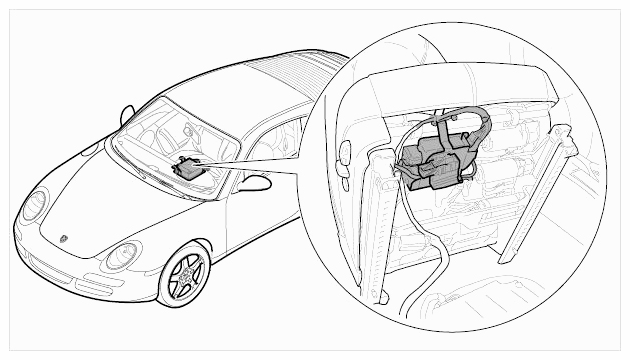

Fig 1: Identifying AWS Control Unit Removal Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

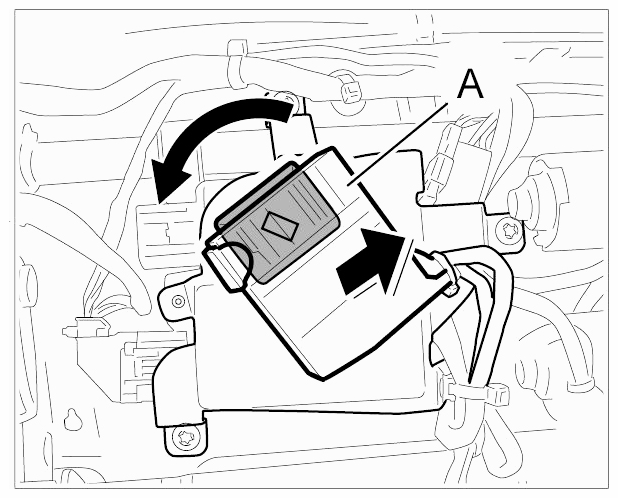

Turn seat central connector -A- at AWS holder to the left and remove from the holder.

Fig 2: Loosening Seat Central Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

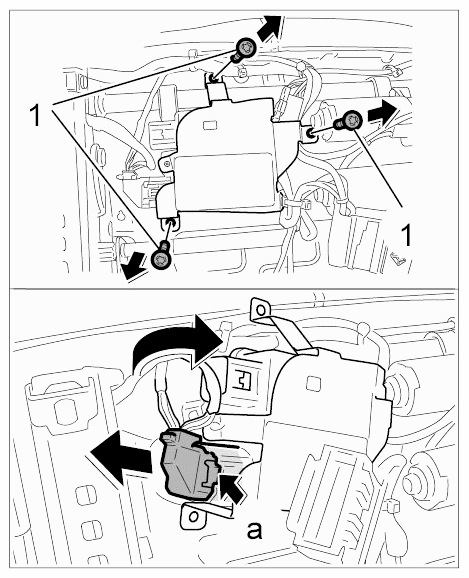

Unscrew the three fastening screws -1- for the AWS holder on the seat bracket.

Fig 3: Fastening Screws For AWS Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric connector on AWS control unit -a- , unplug and tilt the AWS holder to the right side.

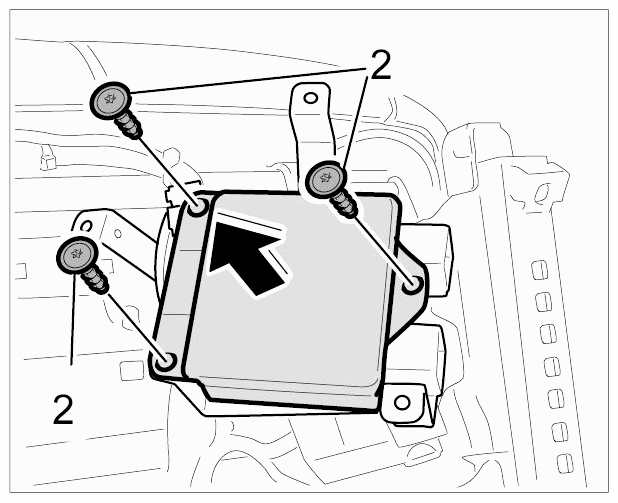

Unscrew the three fastening screws -2- of the AWS control unit and remove the control unit.

Fig 4: Unscrewing Fastening Screws For AWS Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
