Installing Gateway Control Module

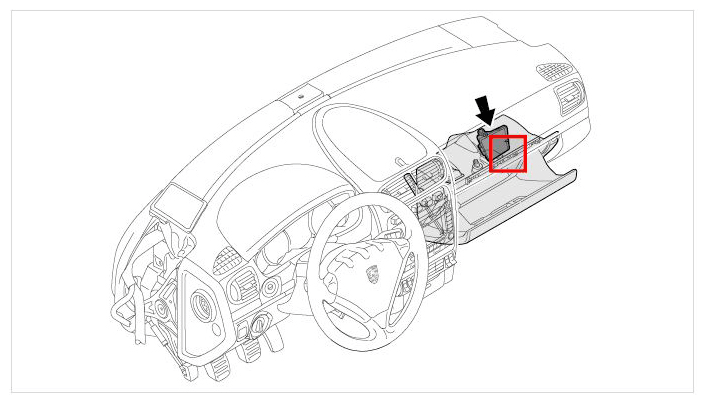

Fig 1: Overview Of Gateway Control Module

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

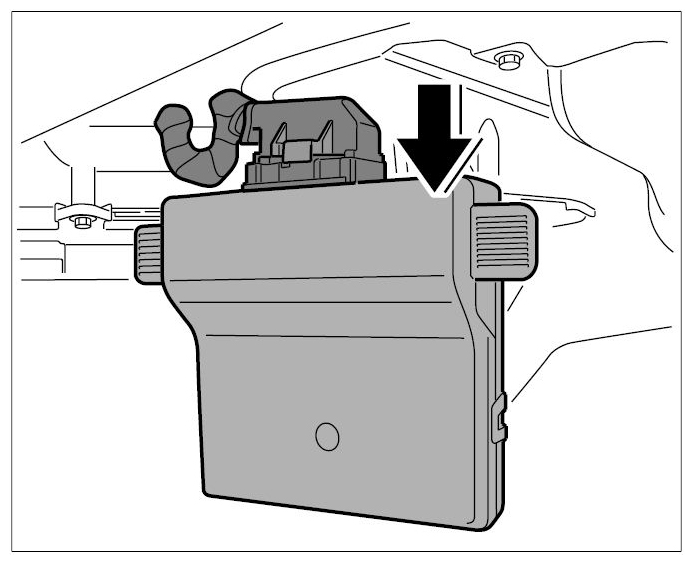

Insert the plug until it is felt to engage.

Fig 2: Connecting Plug Of Gateway Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

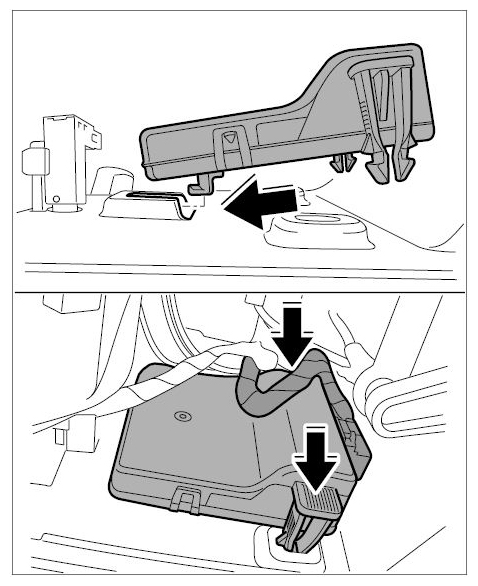

Insert the gateway control module with the guide pin in the guide on the glove compartment and clip in.

Fig 3: Clipping In Gateway Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Program gateway control module. → Programming Gateway Control Unit
