Removing Gateway Control Module

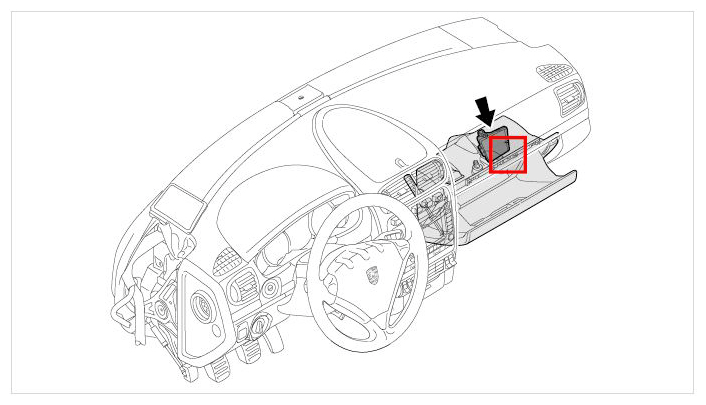

Fig 1: Overview Of Gateway Control Module

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The gateway control module is located on the rear of the glove compartment.

1. Read out data in gateway control module. → Programming Gateway Control Unit
   CAUTION: Risk of destruction when removing electric components with the ignition on.

   → Switch off ignition and remove ignition key.

2. Switch off ignition and remove ignition key.
3. Unclip gateway control module on glove compartment -arrows A-  and remove.

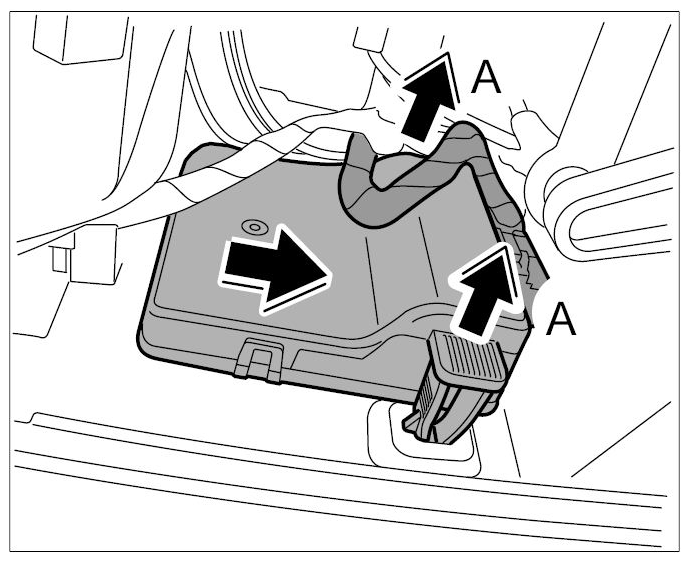

   Fig 2: Unclipping Gateway Control Module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release plug -arrow a-  and unplug.

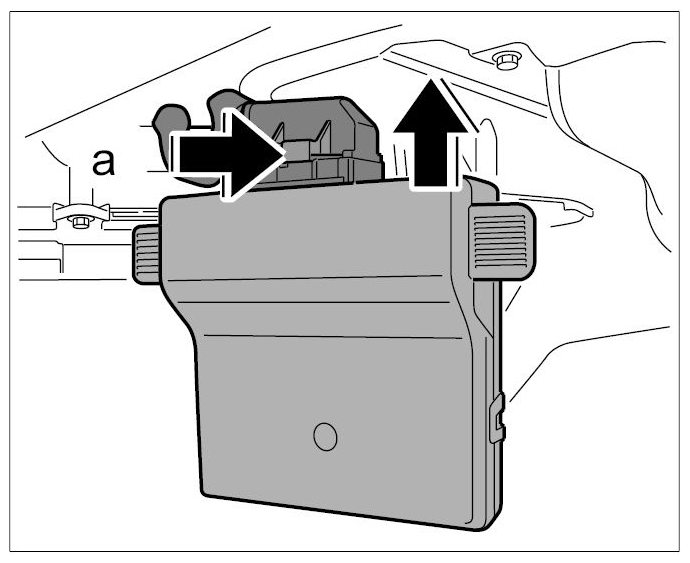

   Fig 3: Removing Plug Of Gateway Control Module

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
