Subsequent Work: Notes

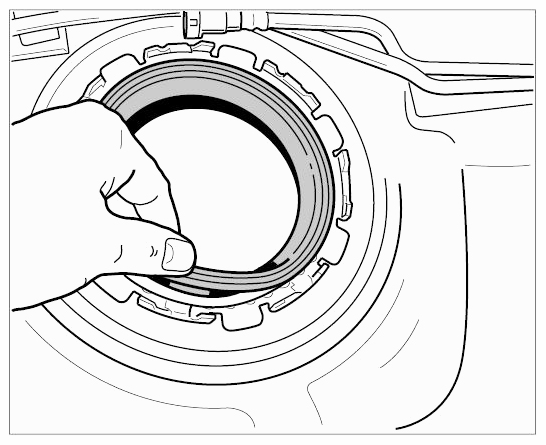

Fit new seal in the opening of the tank.

Fig 1: Installing Seal For Opening Of Tank
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

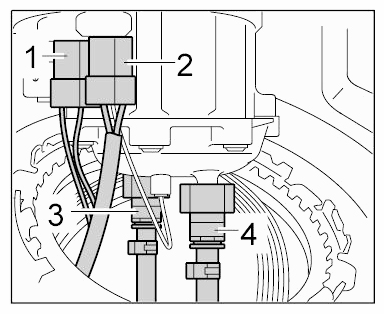

Connect connecting flange. Connect the electric connectors for the fuel level sensor and fuel pump. Then push on the fuel lines. The connectors must lock with an audible click.

Fig 2: Identifying Connecting Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

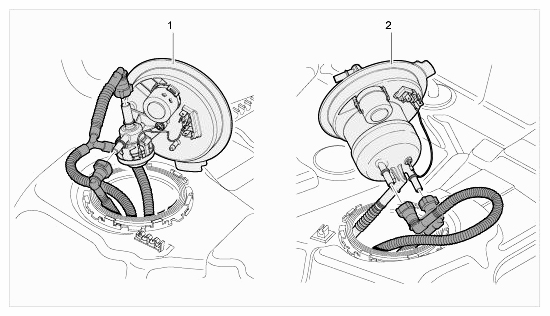

Fig 3: Identifying Left And Right Connection Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Right connection unit with pressure regulator
2. Left connection unit with fuel filter
Fit connecting flange into the opening of the tank. When doing so, make sure that the plastic lug is pointing forwards.
