Replacing Accelerator Pedal: Installing

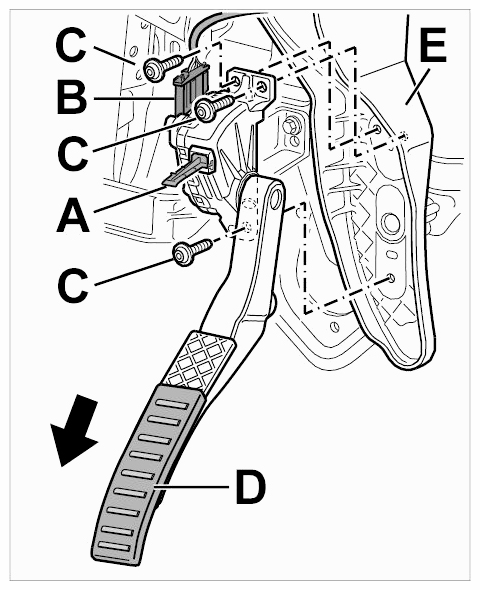

Fig 1: Installing Accelerator Pedal Module
G09409936Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Slide pedal cap -D-  onto the new accelerator pedal module.
  2. Fit new accelerator pedal module on the bracket -E-  using the three fastening screws -C-  . → Tightening torque: +10 Nm (+7.5 ftlb.-) 1+ N/m (+/-0.5 ftlb.)
  3. Connect plug connection -B-  .
