Assembling Frame For Roll-Over Protection System

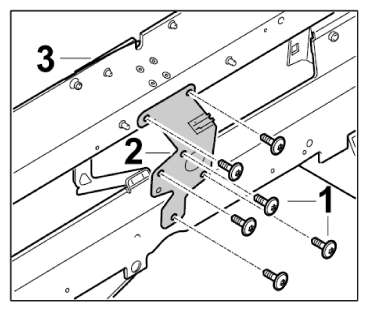

- Install holder for convertible-top compartment lid drive.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 1.1. Position holder -2-
on frame -3-
and secure with the fastening screws -1-
. → Tightening torque: 5 Nm

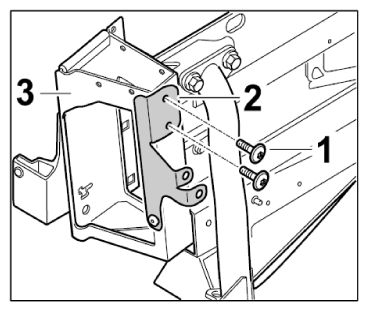

- Install holder for control unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 2.1. Position holder -2-
on frame -3-
and secure with the fastening screws -1-
. → Tightening torque: 5 Nm

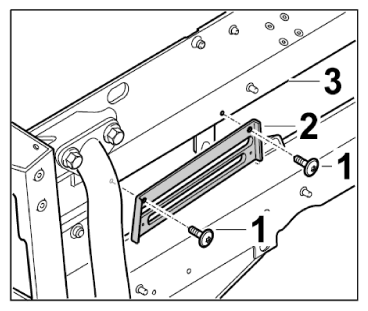

- Install the fastening angle for convertible-top compartment trim.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 3.1. Position fastening angle -2-
on frame -3-
and secure with the fastening screws -1-
. → Tightening torque: 10 Nm

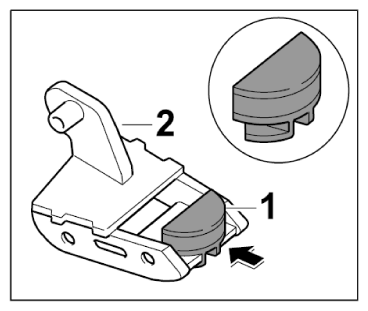

- Install the holder stop for convertible top compartment.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 4.1. Press the holder stop -1-
into the adapter -2-
(-arrow-
).

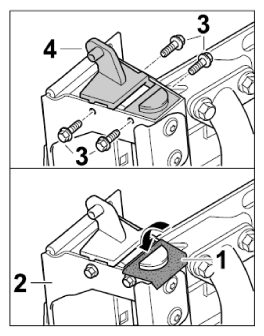

- Install adapter for rear cover linkage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 5.1. Position adapter -4-
on frame -2-
and secure with the fastening screws -3-
. → Torque: 10 Nm
- 5.2. Clean bonding surface with isopropanol before applying the felt -1-
.
- 5.3. Remove protective film and stick felt down -1-
(-arrow-
).

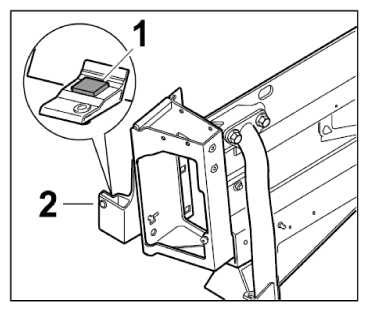

- Stick on felt tape.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 6.1. Clean bonding surface with isopropanol before applying the felt -1-
.
- 6.2. Pull off protective film stick down felt -1-
centrally onto the frame surface -2-
.
