Current Distributor

Current distributor (or power distributor) is located in passenger compartment footwell, on luggage compartment wall. See Figure. Supply voltage is distributed to various vehicle components and each connection is fuse protected. For current distributor layout, see Fig 1.

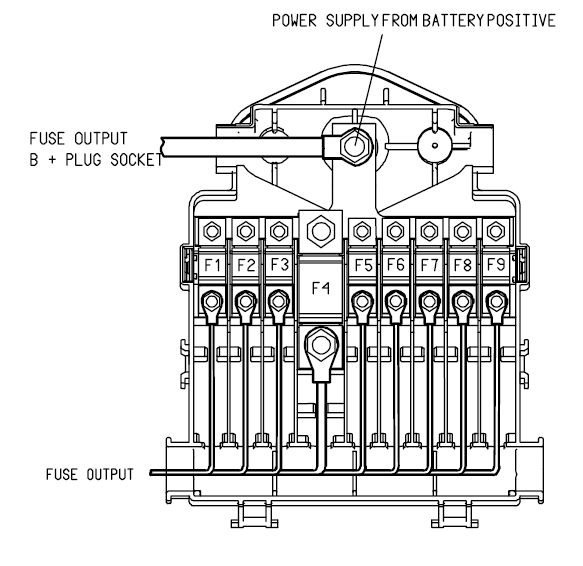

Fig 1: Identifying Current Distributor Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

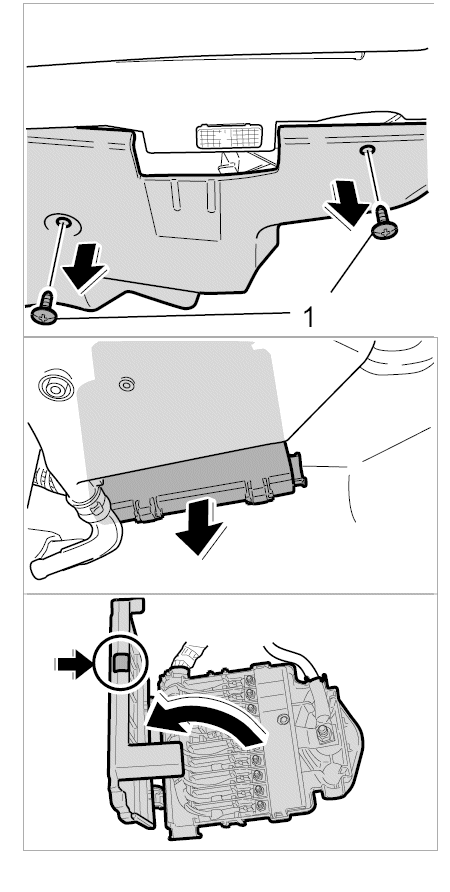

Fig 2: Accessing Current Distributor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Current Distributor Fuses

Fuse No.	Amps	Fuse Function
F1	80A	Fuses A1-A5
F2	80A	Fuse B10, Electrical system CU (extent)
F3	70A	Fuses A7 & A8, Front end CU (high beam/low beam right, turn signal/side marker light left)
F4	150A	Fuse A9 & A10, Fuses D1-D3, Fuses E1-E3
F5	50A	PSM CU, Engine relay
F6	80A	Fuses B1-B7, Emergency power relay, Heater relay, Relay K1, 15
F7	80A	Fuses C9 & C10, Term.86S, DME relay 87
F8	70A	Fuse A6, Electrical system CU, Interior light, Front end CU (high beam/low beam left, turn signal/side marker light right)
F9	80A	Fuse E4, Front end CU, Turn signal/side marker light left, Front fog light, Two-tone horns
