Replacing Accelerator Pedal: Removing

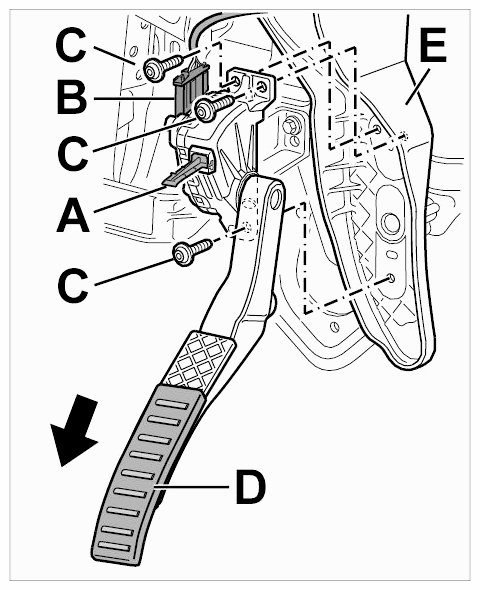

Fig 1: Removing Accelerator Pedal Module
G09409935Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull plug connection -B-  off the accelerator pedal module.
  2. Remove accelerator pedal module. To do this, remove the three fastening screws -C-  .
  3. Take the accelerator pedal module out of the footwell and remove the pedal cap -D-  by pulling it downwards.
