Disassembling Frame For Roll-Over Protection System

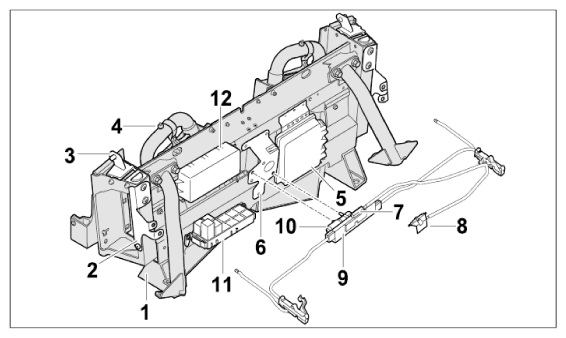

Fig 1: Frame For Roll-Over Protection System Diagram

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove adapter for rear cover linkage.

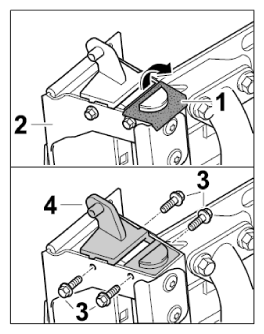

Fig 2: Removing Adapter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Pull form felt -1- out of the trim surround -2- (-arrow- ) and dispose of it.
2. 1.2. Unscrew fastening screws -3- and pull the adapter -4- up and off.
Remove the holder stop for convertible top compartment.

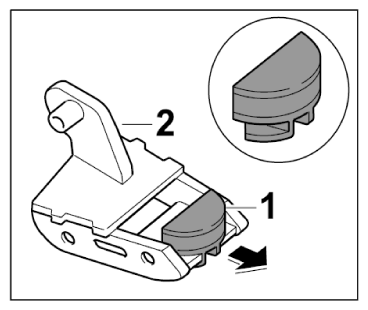

Fig 3: Removing Holder Stop
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Pull the holder stop -1- out of the adapter -2- (-arrow- ).
  The holder stop can be removed when both the adapter and the roll-over bar cover are installed.
Remove the fastening angle for convertible-top compartment trim.

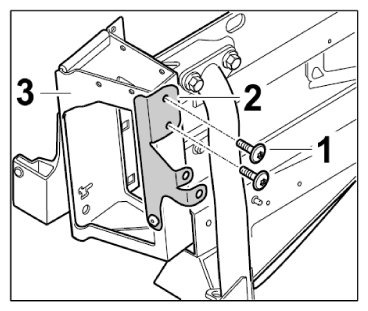

Fig 4: Removing Fastening Angle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Unscrew fastening screws -1- and remove the bracket -2- from the trim -3- .
Remove holder for control unit.

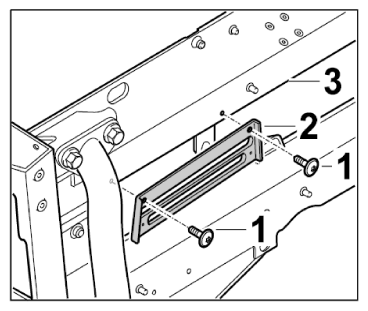

Fig 5: Removing Holder For Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Unscrew fastening screws -1- and remove the holder -2- from the trim -3- .
Remove holder for top box cover drive.

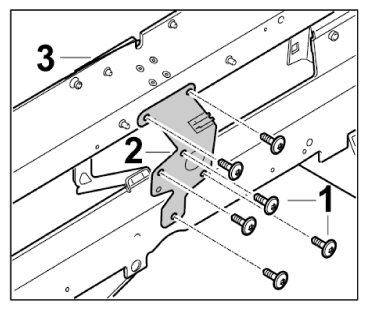

Fig 6: Removing Holder For Top Box Cover Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Unscrew fastening screws -1- and remove the holder -2- from the trim -3- .
