DME Relay Terminal 87



Fuse Assignment - Sheet 92

DME Relay Terminal 87 - F7, F8

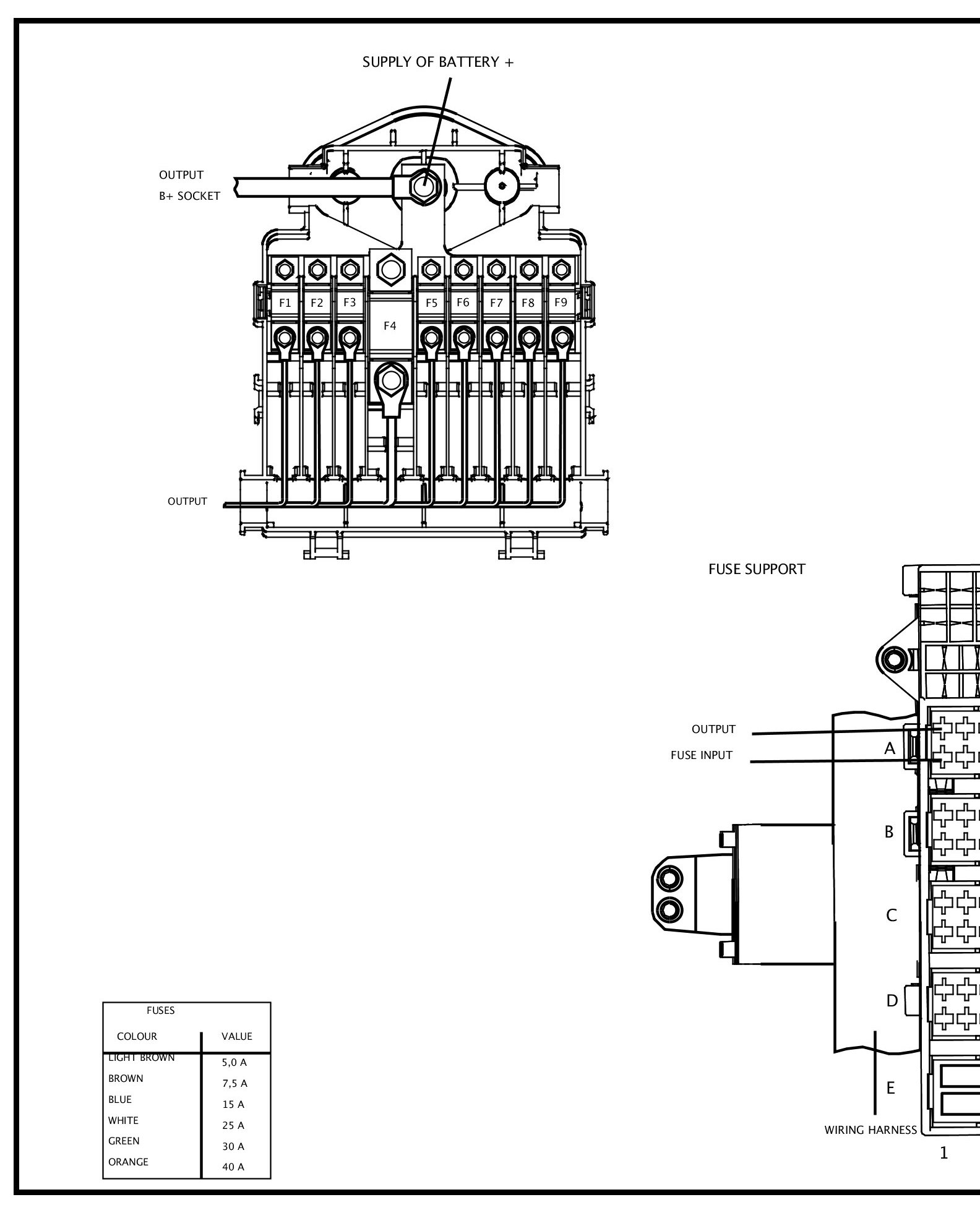

Fuse Assignment - Sheet 92 (Part 1):

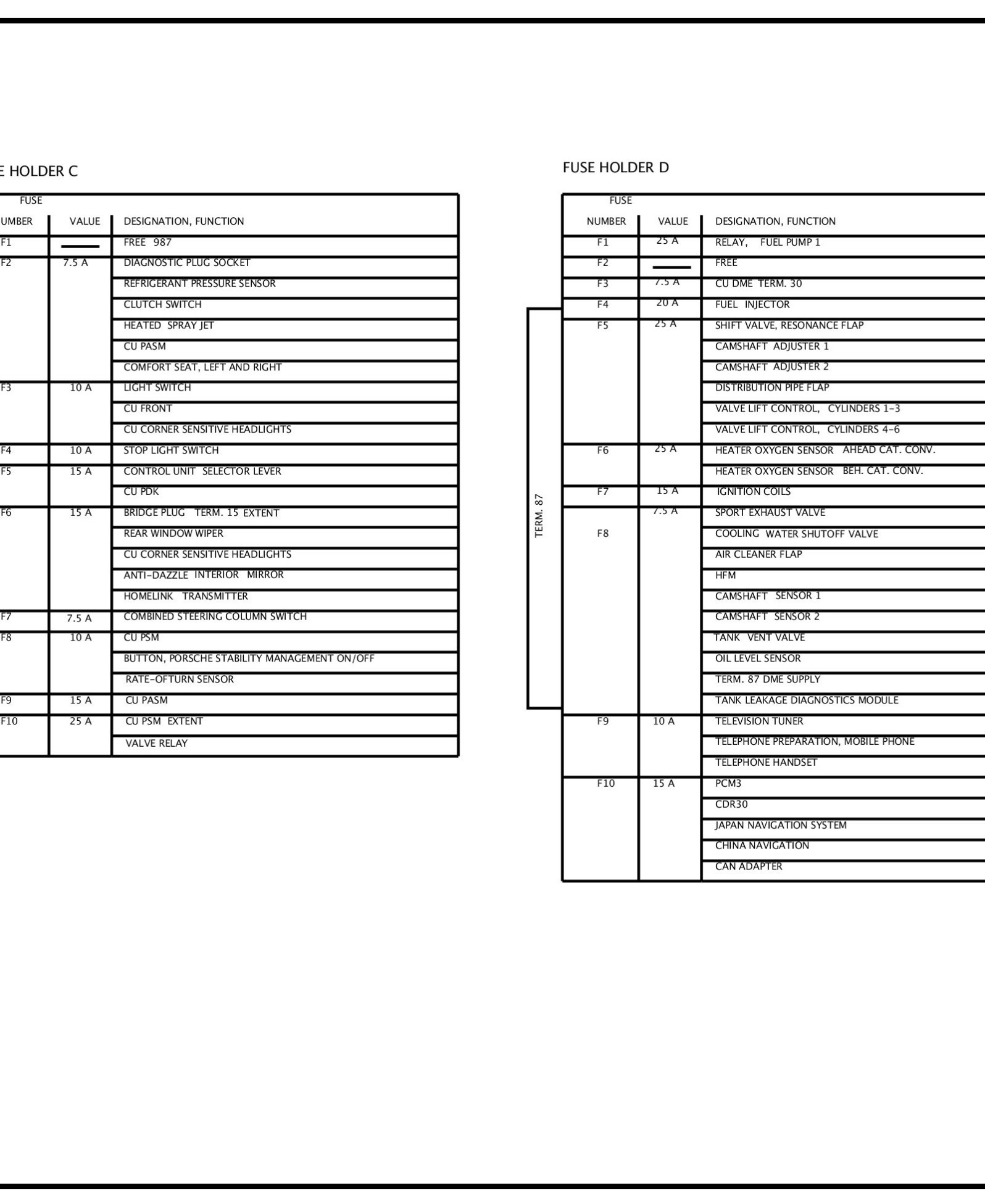

Fuse Assignment - Sheet 92 (Part 2):





Fuse Assignment - Sheet 92 (Part 4):
