Main Relay (Computer/Fuel System): Locations



Fuse Assignment - Sheet 92

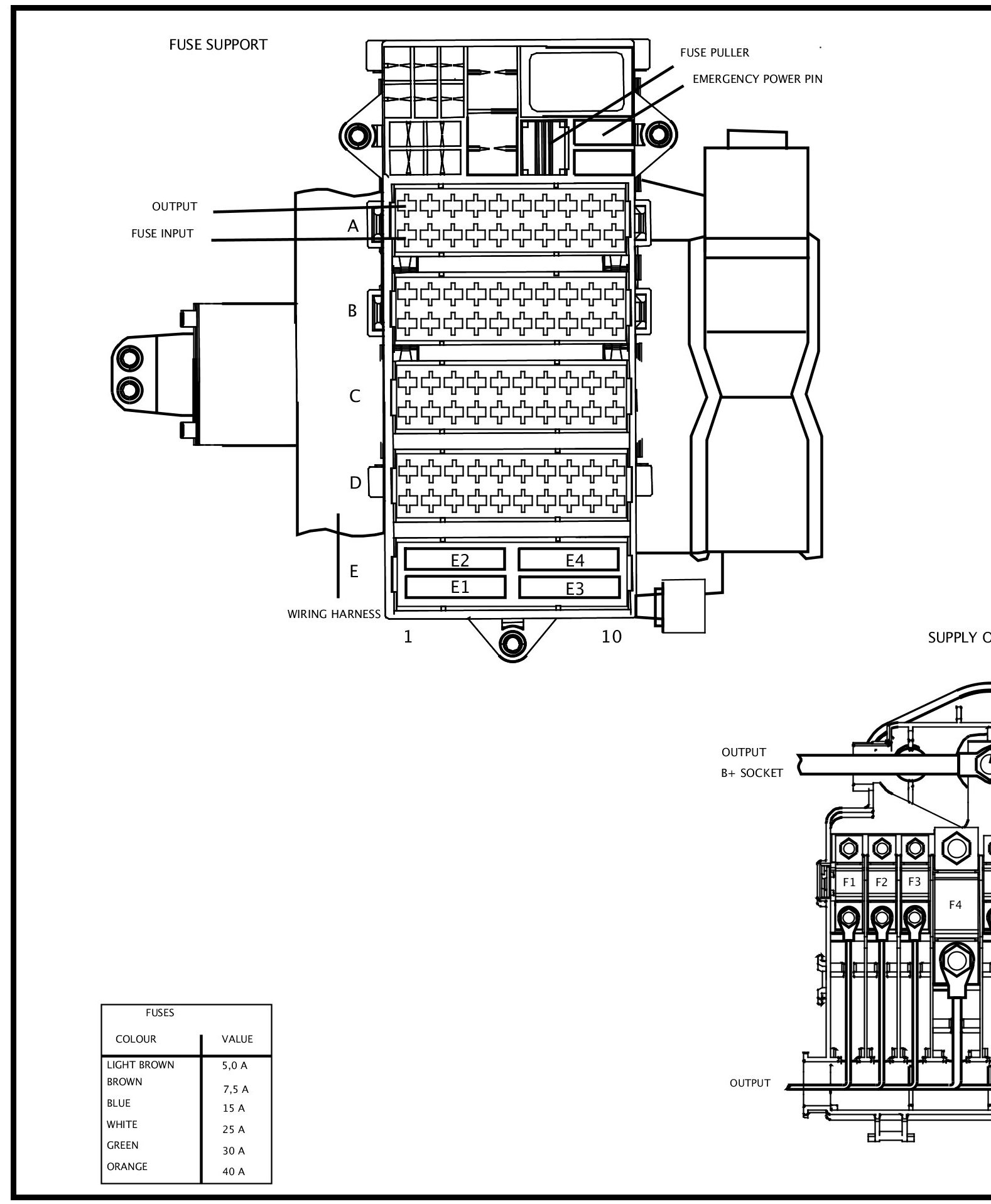

Fuse Assignment - Sheet 92 (Part 1):

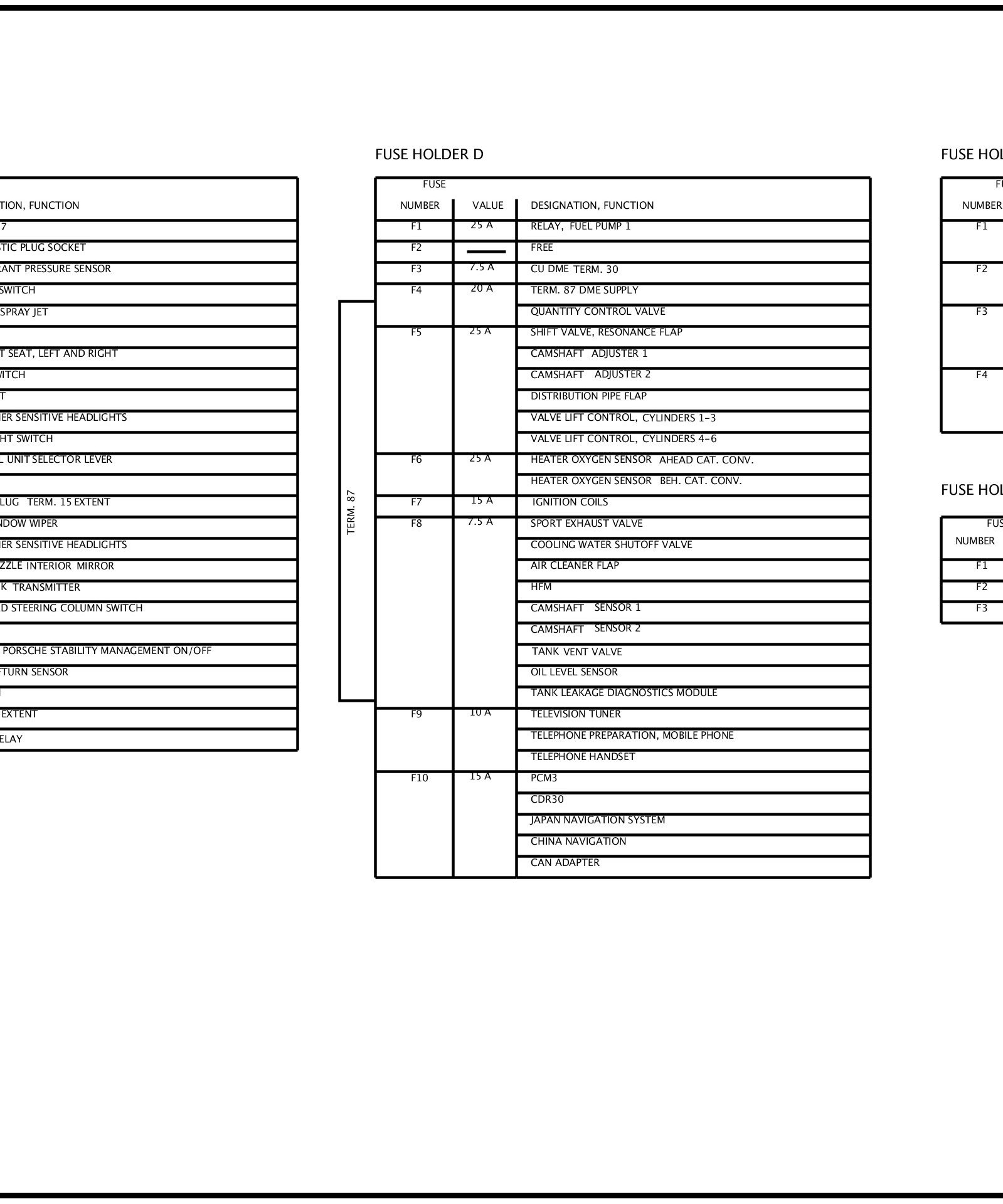

Fuse Assignment - Sheet 92 (Part 2):

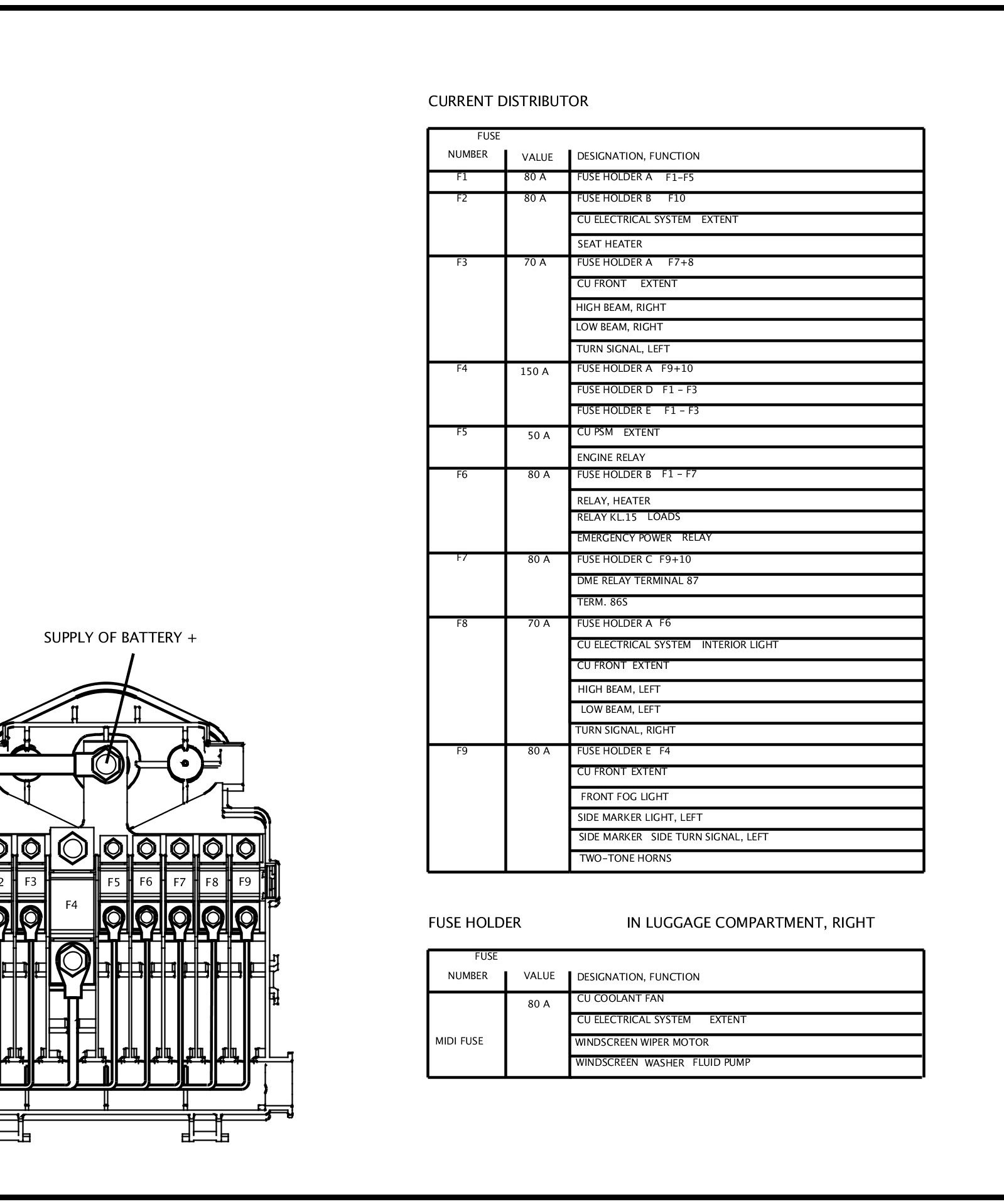

Fuse Assignment - Sheet 92 (Part 3):

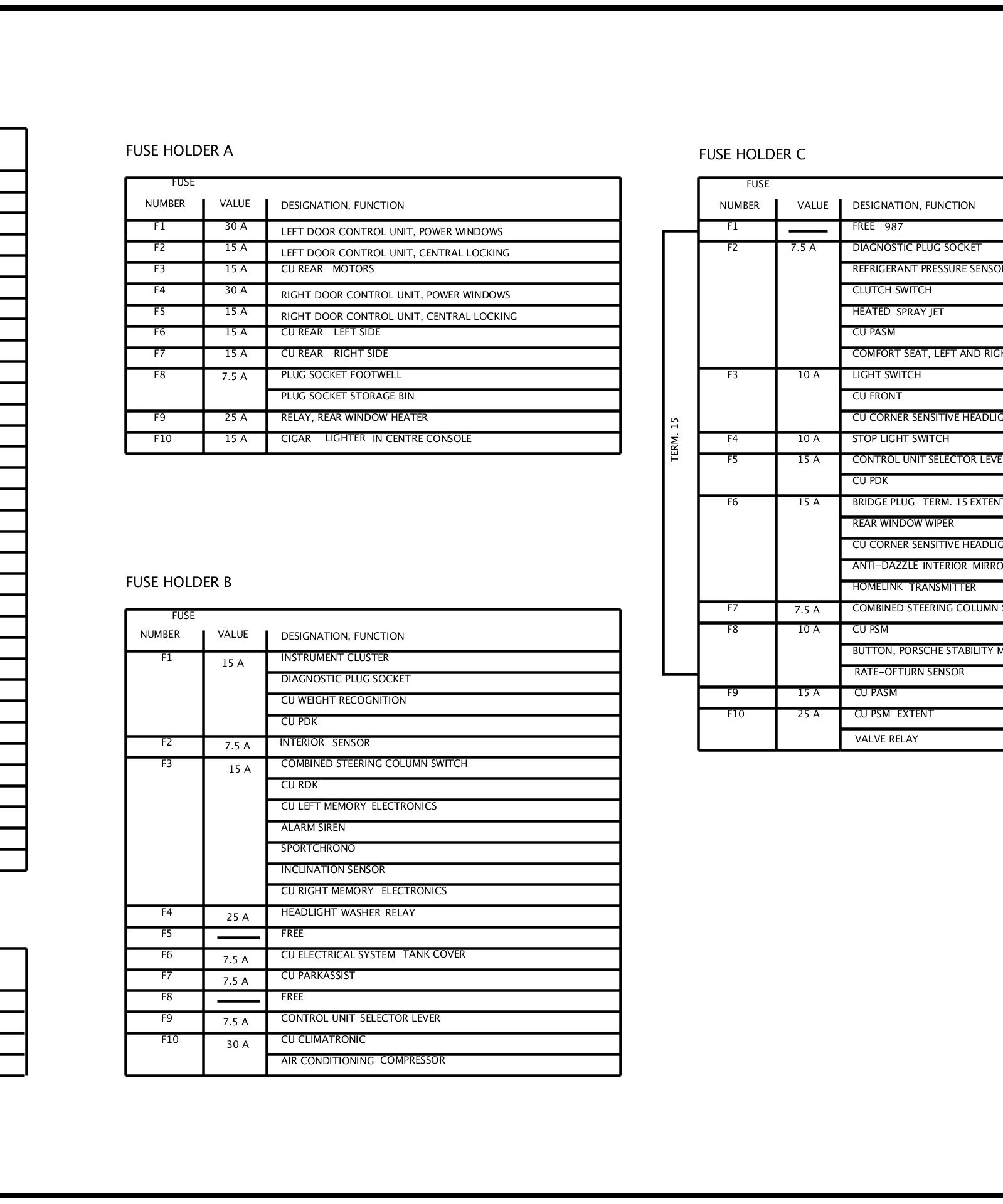

Fuse Assignment - Sheet 92 (Part 4):

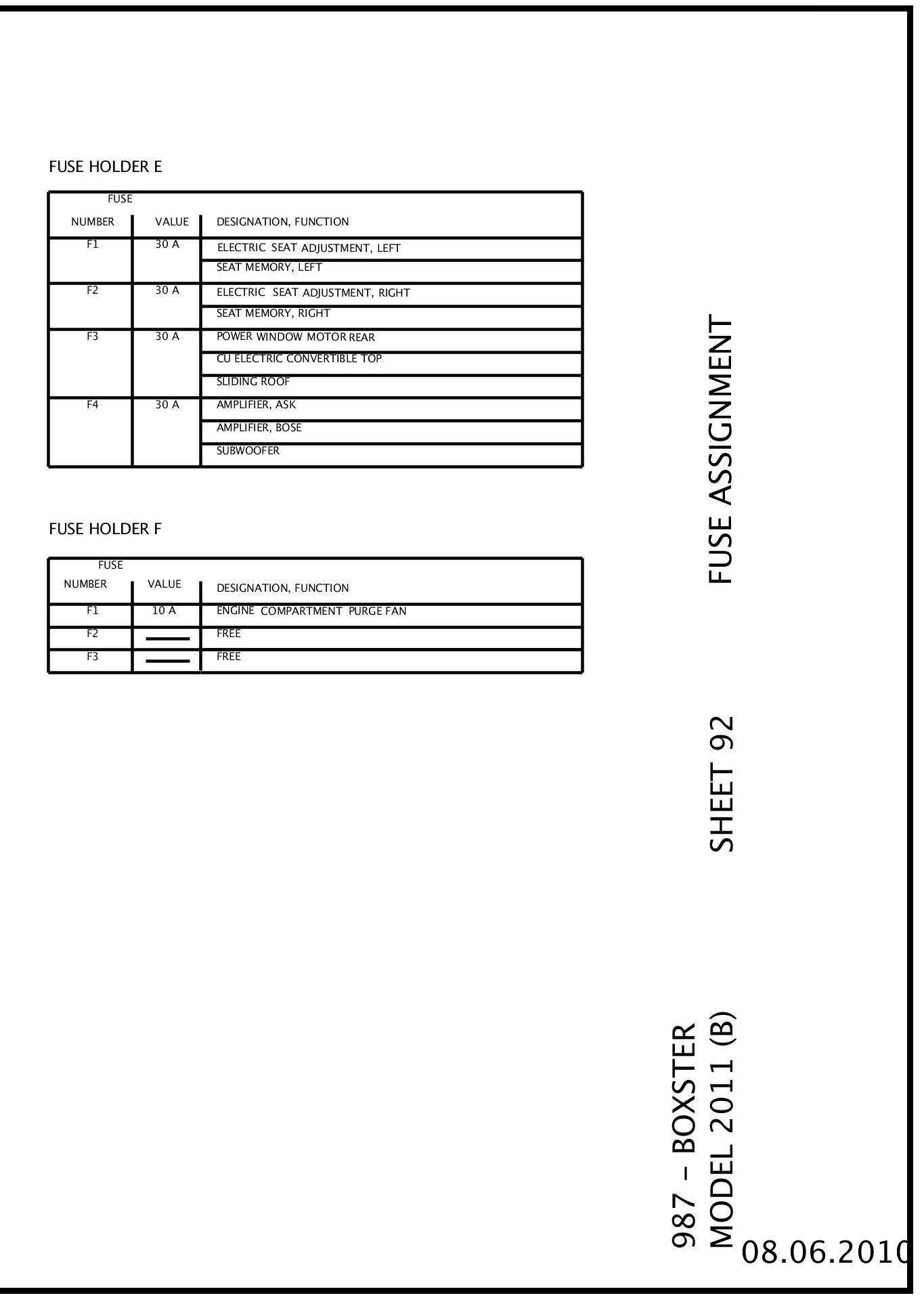

Fuse Assignment - Sheet 92 (Part 5):
