Removing Pedestrian Protection

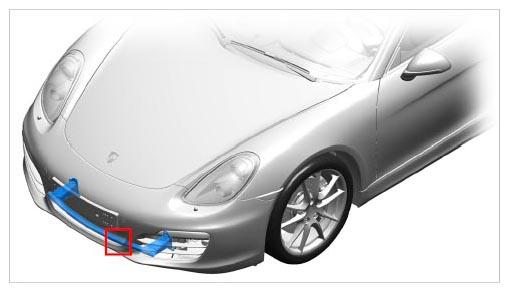

Fig 1: Identifying Pedestrian Protection Position
G10027488Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen the nuts -2-  on the pedestrian protection -1-  .
  2. Remove pedestrian protection -1-  from the body.

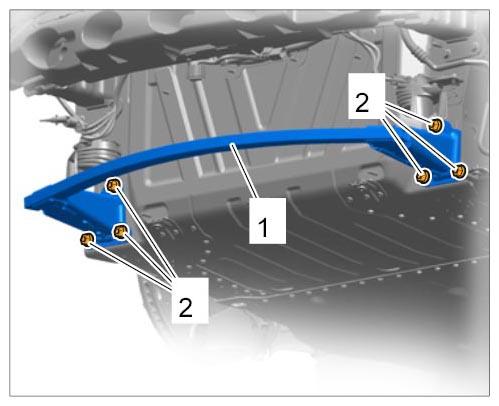

    3. Fig 2: Removing Pedestrian Protection
    G10027489Courtesy of PORSCHE CARS NORTH AMERICA, INC.
