WM, 696855 Replacing Occupant Detection Control Unit: Information
Information
If occupant classification components (installed for country equipment USA/Canada) must be replaced, the repair kit comprising padding with affixed mat for occupant classification system and occupant classification control unit must always be replaced as a complete unit.

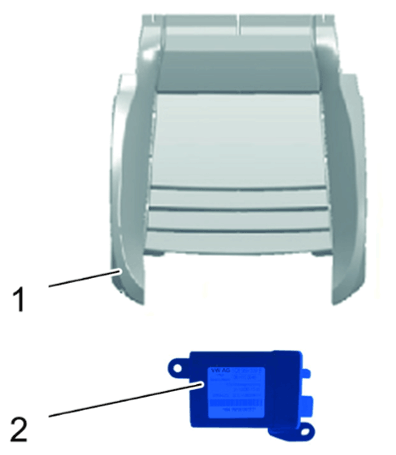

The spare parts are contained in a repair kit (comprising padding with affixed mat for occupant classification system -1- and occupant classification control unit -2- ), which must always be replaced as a complete unit.
-1- Padding with affixed mat for occupant classification system
-2- Occupant classification control unit
A mixed installation, e.g. "old" padding and "new" control unit, is not permitted .
The padding with affixed mat for occupant classification system and the occupant classification control unit are calibrated together by the manufacturer and must therefore only be replaced as a complete unit.
The occupant classification control unit must not be coded.
The mat for the occupant classification system must not be removed from the foam part.
