Installing Vehicle Electrical System Control Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Push on top row of plugs until they are felt to engage.

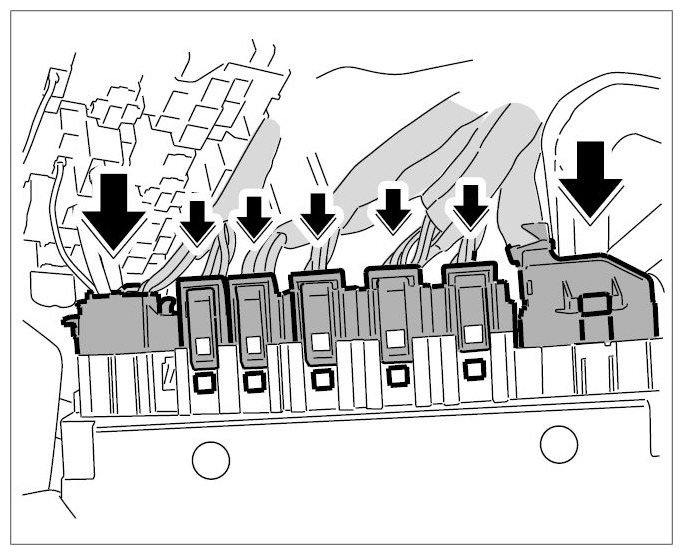

Fig 1: Connecting Top Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on bottom row of plugs until they are felt to engage.

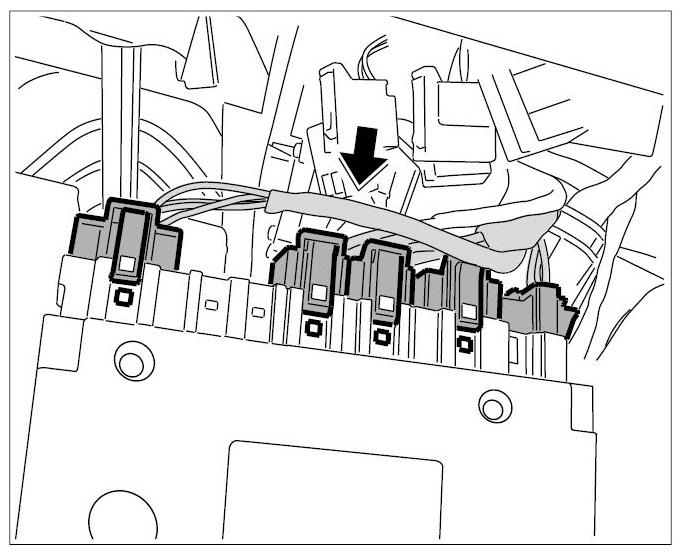

Fig 2: Connecting Bottom Plugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push control unit upwards into the holder, making sure it engages. Make sure the electrical leads are not pinched.
