Programming Data Update On Central Computer

NOTE: Voltage drop

Irreparable damage to control unit
Damage to control unit
Fault entries in the control unit
Control unit programming/coding is aborted
Malfunctions in the control unit, even during programming
→ Switch off ignition before disconnecting the control unit.

→ Make sure that the power supply is not interrupted during programming/coding.

→ Connect the battery charger with at least > current 90 A to the vehicle battery.

Information

Different text may be displayed with higher software versions.

Open red Engineering menu in the central computer.
1. 1.1 Press rotary/push knob and Media for 4 seconds on the front display and operator control unit.
  First press rotary/push knob and then Media .
2. 1.2 Select Software download .
Read and follow the instructions and information on the central computer.
Insert SD card or USB stick containing the vehicle-specific software data into the central computer.

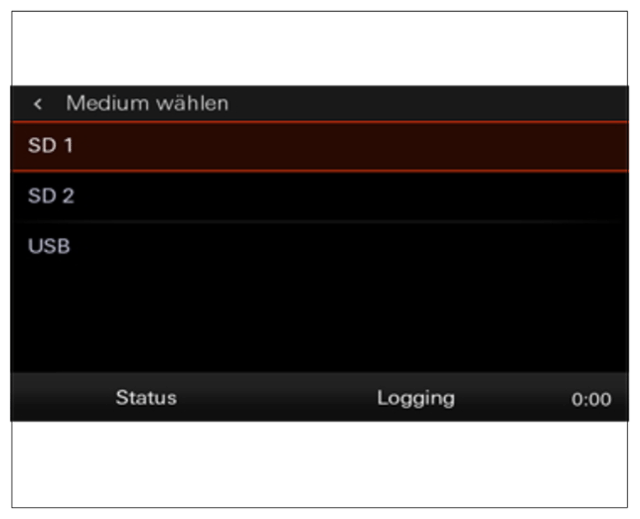

Select and activate SD1 or - if available - USB .
Info: No update is possible with SD2 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Selecting SD1 or USB

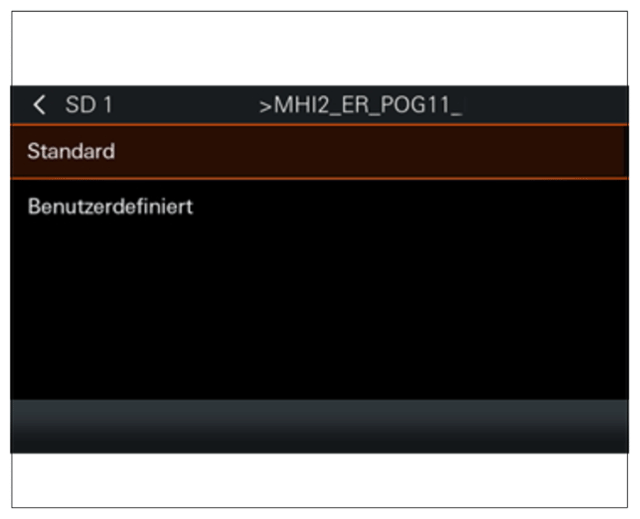

Select Standard .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Selecting "Standard"

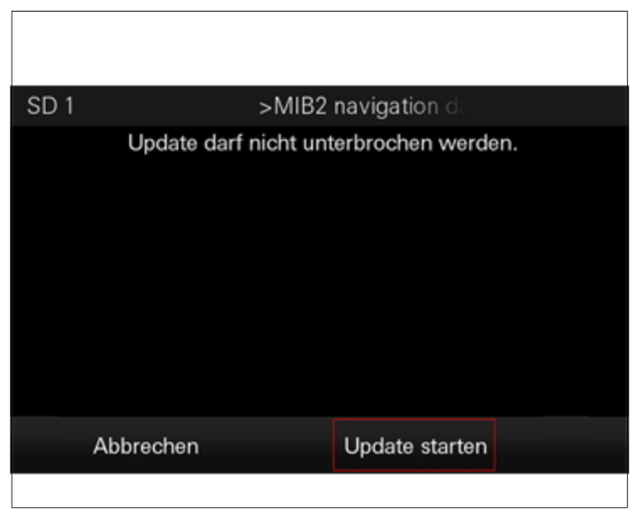

Press Start update .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing "Start update"
Press Start update again in the next menu.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing "Start update"

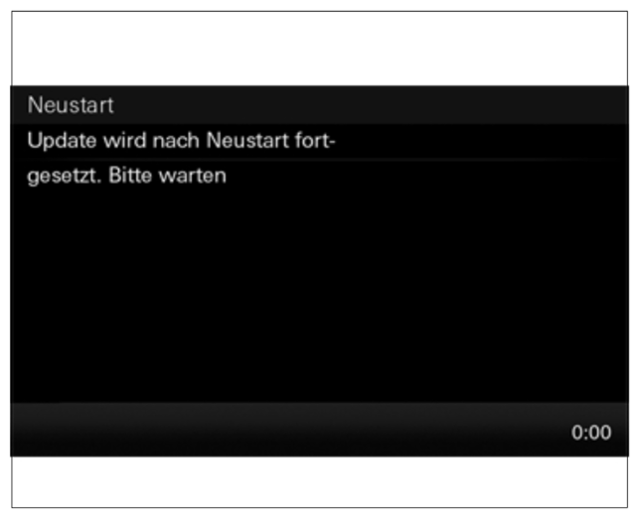

The central computer restarts and the screen turns black. The individual components and modules are then updated.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Restarting

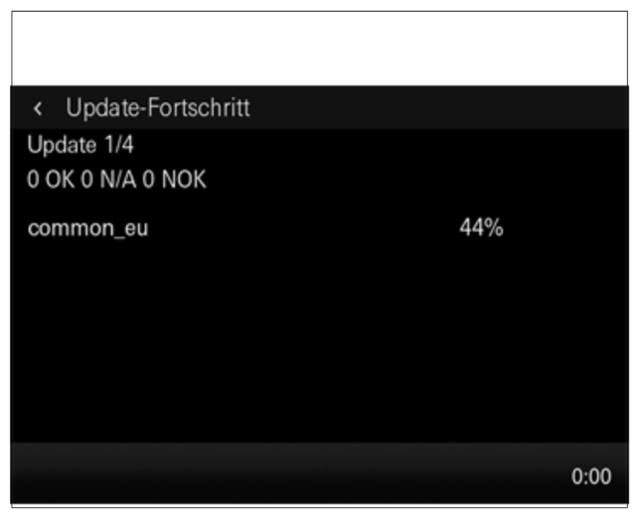

The update progress is shown as a percentage for each module.
The update takes approx. 30 min.

The central computer is restarted several times during the update.

The display and operator control unit screen remains black for up to 3 minutes while restarting.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Update progress display

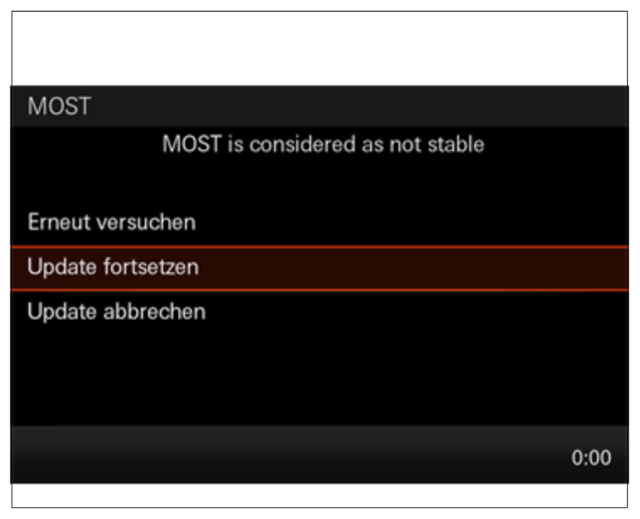

If there is no MOST ring installed in the vehicle, Continue update must be selected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Continue update

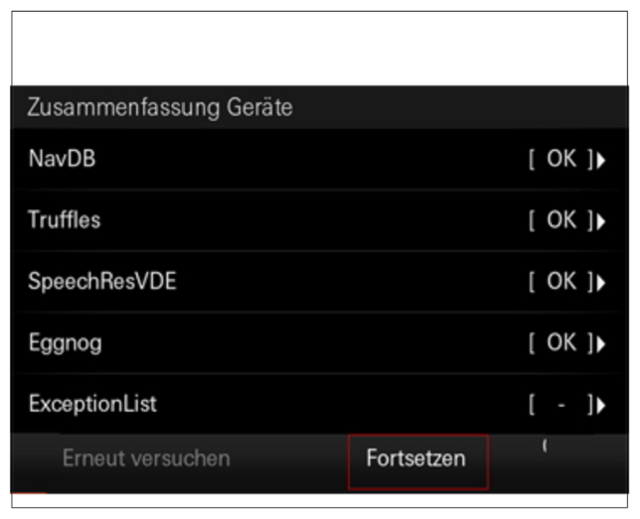

After the update, the updated components will be marked OK. Press Continue.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

"Update status" and "Continue update" display

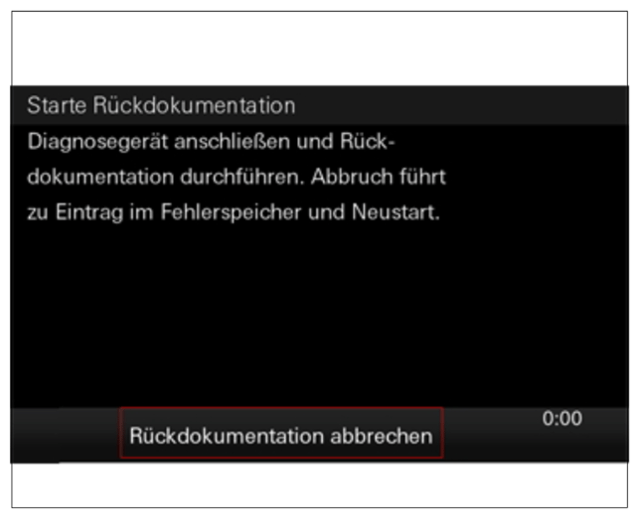

Select Start backup documentation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Start backup documentation
Connect the Tester to the vehicle and start it.
Select the vehicle type if necessary.
Select the PCM control unit in the overview. Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
Select Maintenance/repairs . Press F12 to continue.
Select Update confirmation . Press F8 to continue.
The backup documentation process is performed.
The system is restarted.
After the restart, the update is finished.
Switch back to the overview.
Select Coding/programming . Press F12 to continue.
Select Automatic coding . Press F8 to start.
Follow the instructions on the Tester.
Remove SD card or USB stick from the central computer.
Read out all fault memories and erase them if necessary.
Exit the diagnostic application. Disconnect the Tester from the vehicle.
Perform function test on central computer.
