Wheel Alignment Specifications & Adjustments: SAAB: Adjustment: Toe-In
- With wheels in straight ahead position, loosen tie rod jam nuts and turn adjustable sleeves until correct toe-in is obtained. Tighten jam nuts and recheck toe-in.

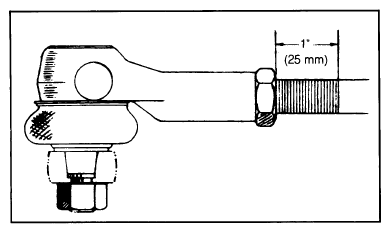

- After adjustment of toe-in, measure thread width of tie rod. Manual steering must not exceed 15/16" (24 mm) or 1" (25 mm) for power steering models. For tie rods opposite each other, the difference between measurements must not exceed 3/32" (2 mm).
Courtesy of AMERICAN MOTORS/RENAULT CORP.
