All Models
With wheels in straight-ahead position, loosen steering link (tie rod) lock nut and turn adjustable sleeve until correct toe-in is obtained. Tighten lock nuts and recheck toe-in.
NOTE:

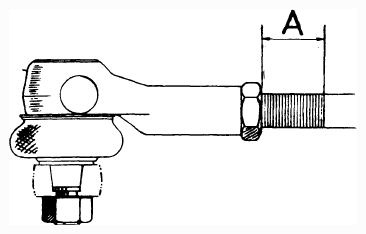

After adjustment of toe-in, measurement "A" (Fig 1) of tie rod must not exceed 1.0" (25 mm). For tie rods opposite to each other, the difference between measurement "A" must not exceed 0.08" (2 mm).
