Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Blocks

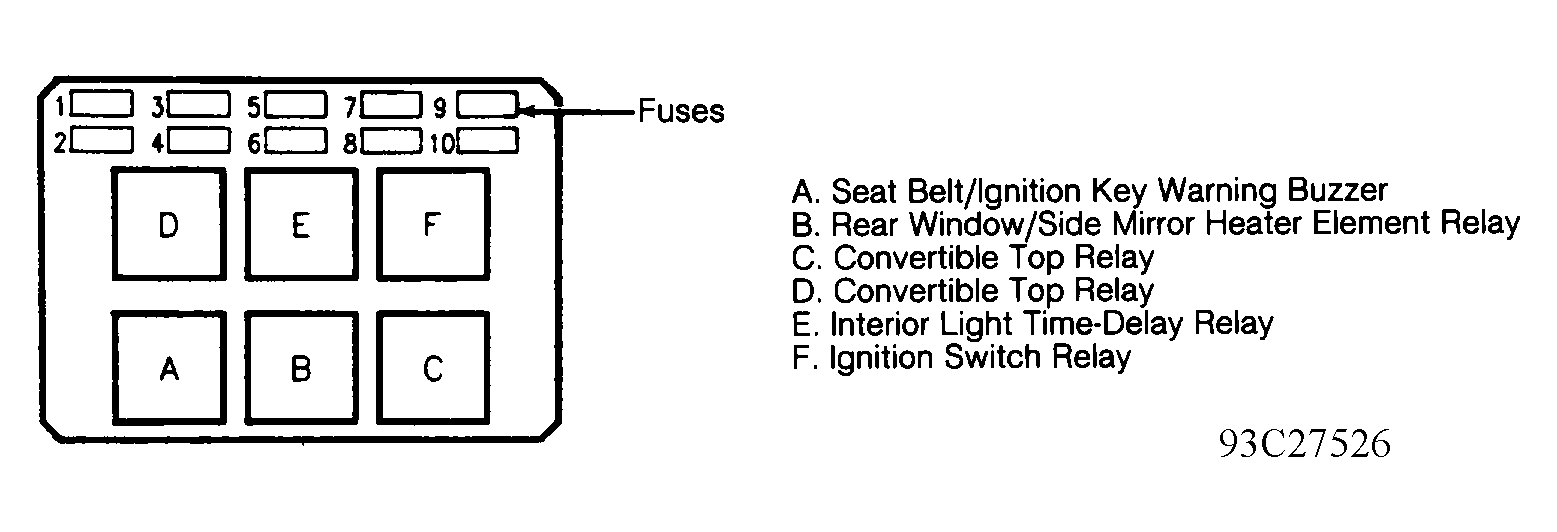

Interior Under rear seat, on left side. See Figure .

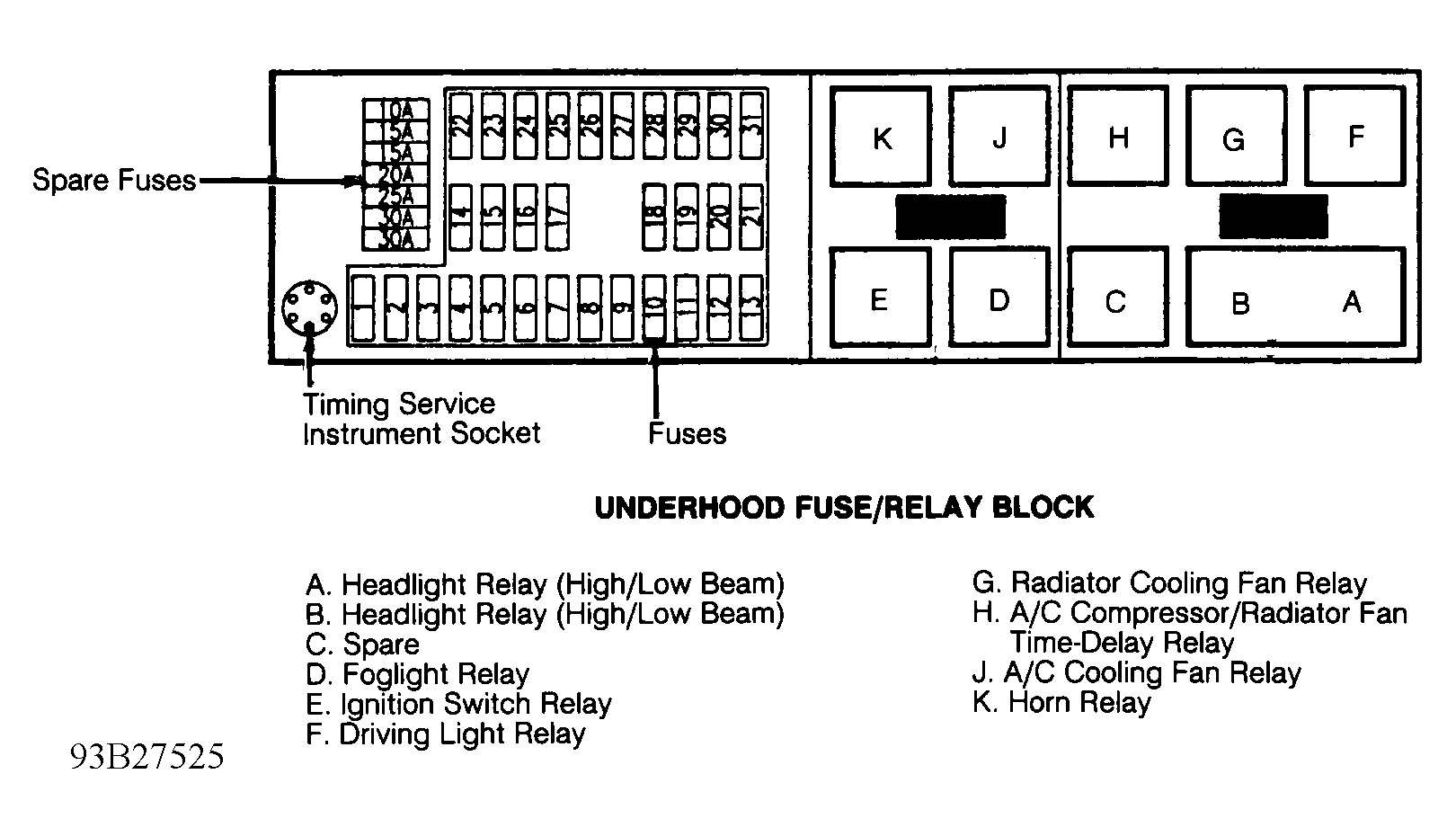

Underhood On left rear corner of engine compartment. See Figure .
