Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

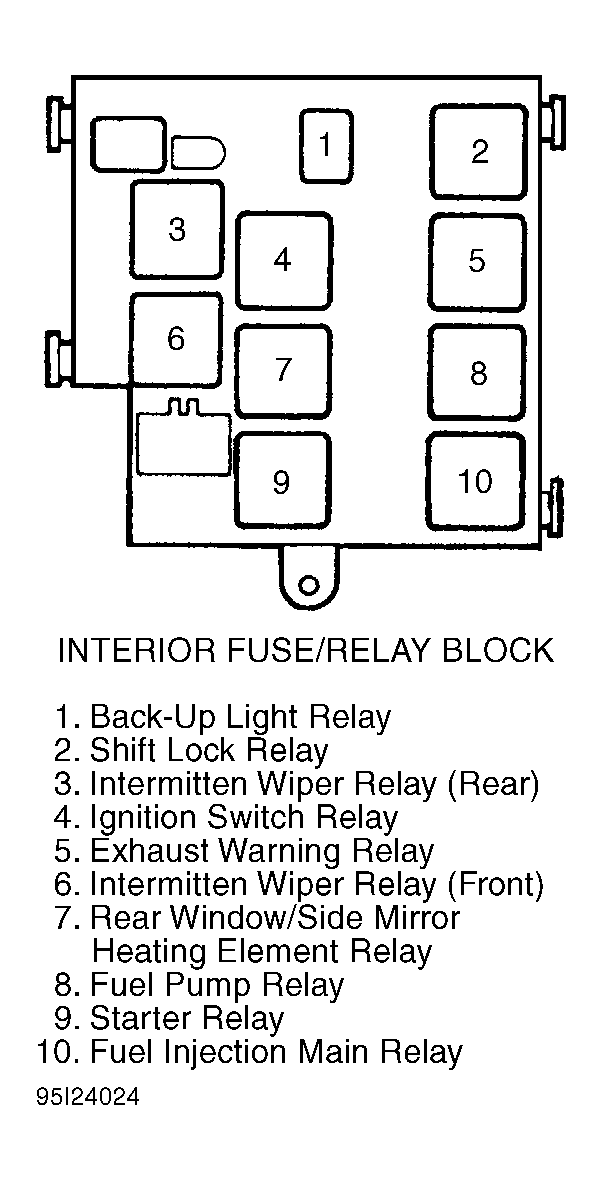

| Fuse/Relay Block (Interior) |
Under left side of dash, next to steering wheel. See Figure. |

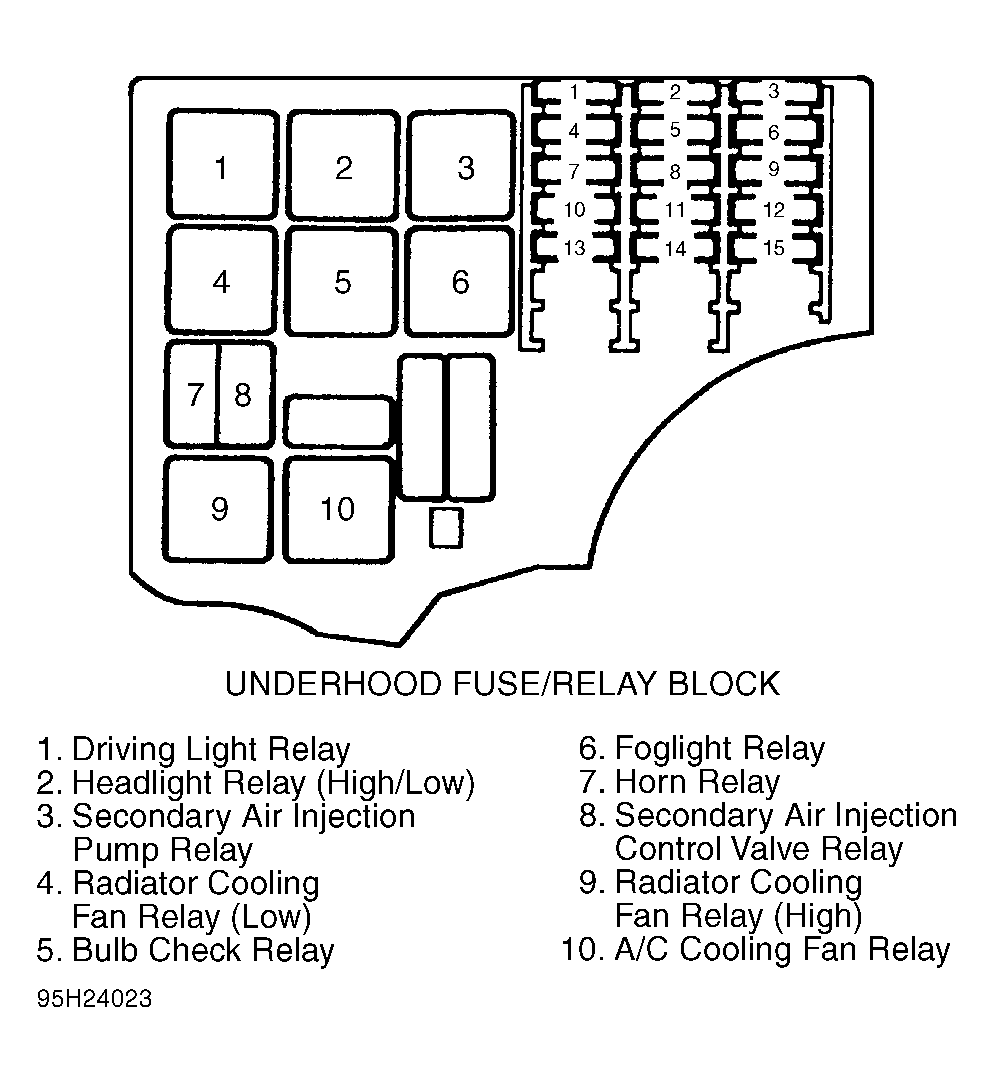

| Fuse/Relay Block (Underhood) |
On left rear corner of engine compartment. See Figure. |
| Maxi Fuse Holder |
Next to battery. |
