Electronic Control Module's Inputs

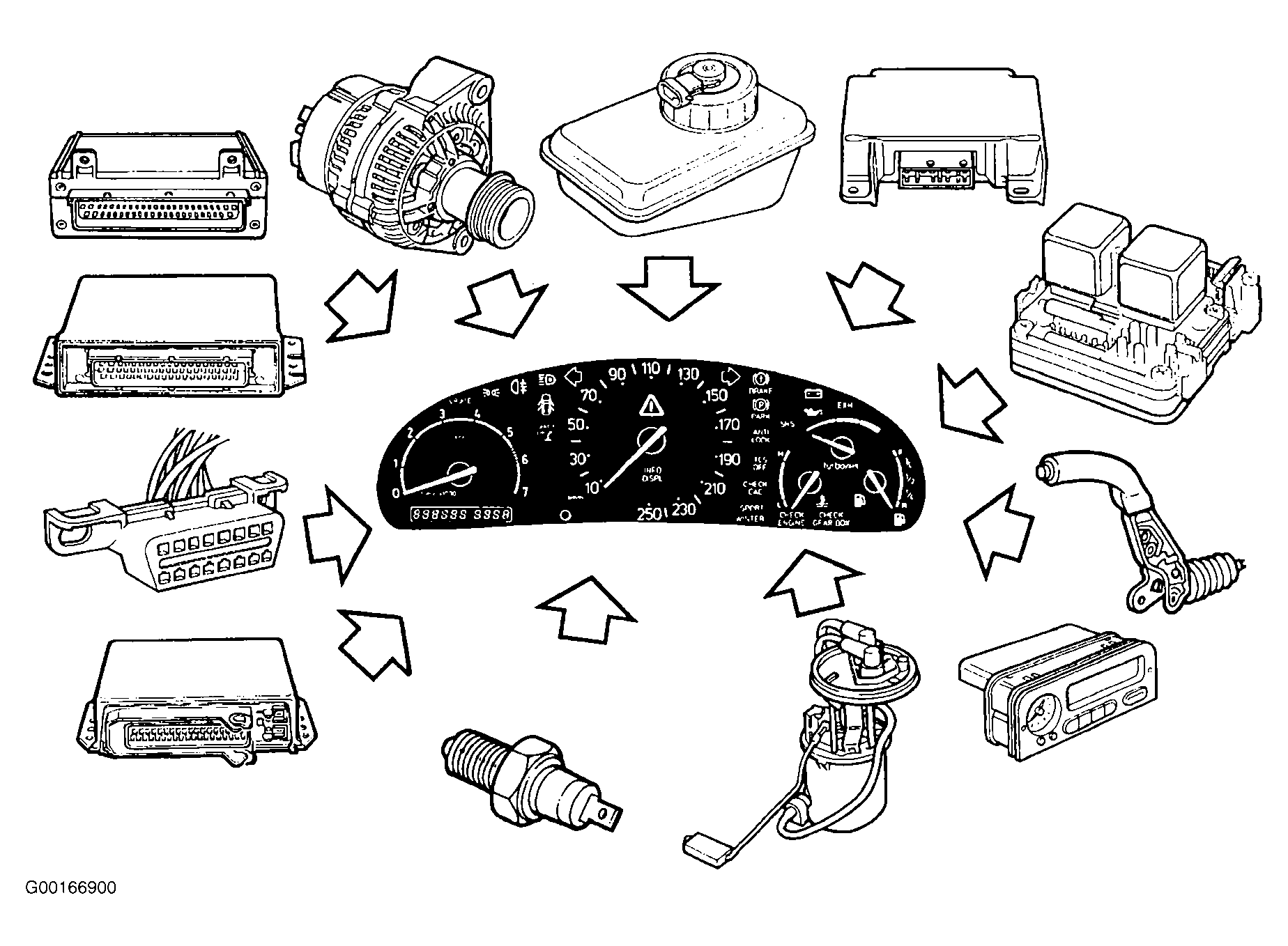

- Speed signal from the ABS electronic control module (pin 5). See Fig 1 .
- RPM signal from the engine control system (pin 6).
- Temperature signal from the ICE electronic control module (pin 7).
- Fuel level from the fuel level transmitter (pin 11).
- Fuel consumption signal from the engine control system (pin 8).
- Charging pressure signal from the TRIONIC engine control system (pins 9 and 10).
The 6 lamps below also switch on the central warning lamp.
- ABS (ANTI LOCK) from the ABS system (pin 16).
- Oil pressure from the oil pressure transmitter (pin 17).
- Brakes from the brake fluid level transmitter (pin 18).
- SRS 2 (SRS 2 is the central warning lamp) from the air bag electronic control module (pin 2).
- Handbrake (pin 1) only if the speed exceeds 5 km/h.
- Charging lamp (pin 15).

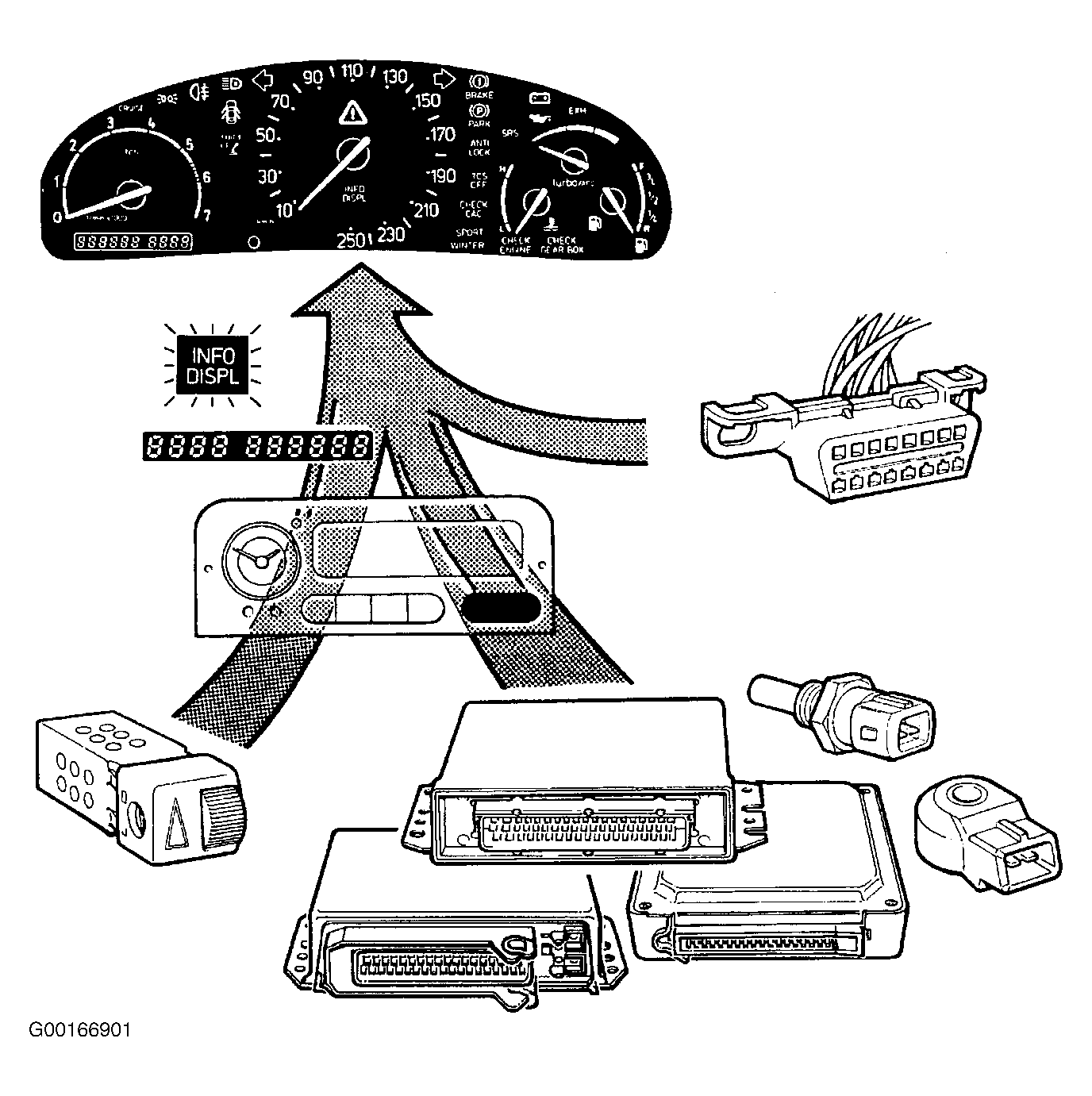

Input signals (pins 3 and 4). See Fig 2 .
- Display lighting value from the Saab Information Display (SID) module.
- Value for luminosity of car's interior from the Saab Information Display (SID) module.
- Rheostat value from the Saab Information Display (SID) module.
- INFO DISPL from the Saab Information Display (SID) module.
- BLACK PANEL from the Saab Information Display (SID) module.
- Diagnosis from the diagnosis output.
- Input signals (pins 3 and 4). See Fig 2 .
