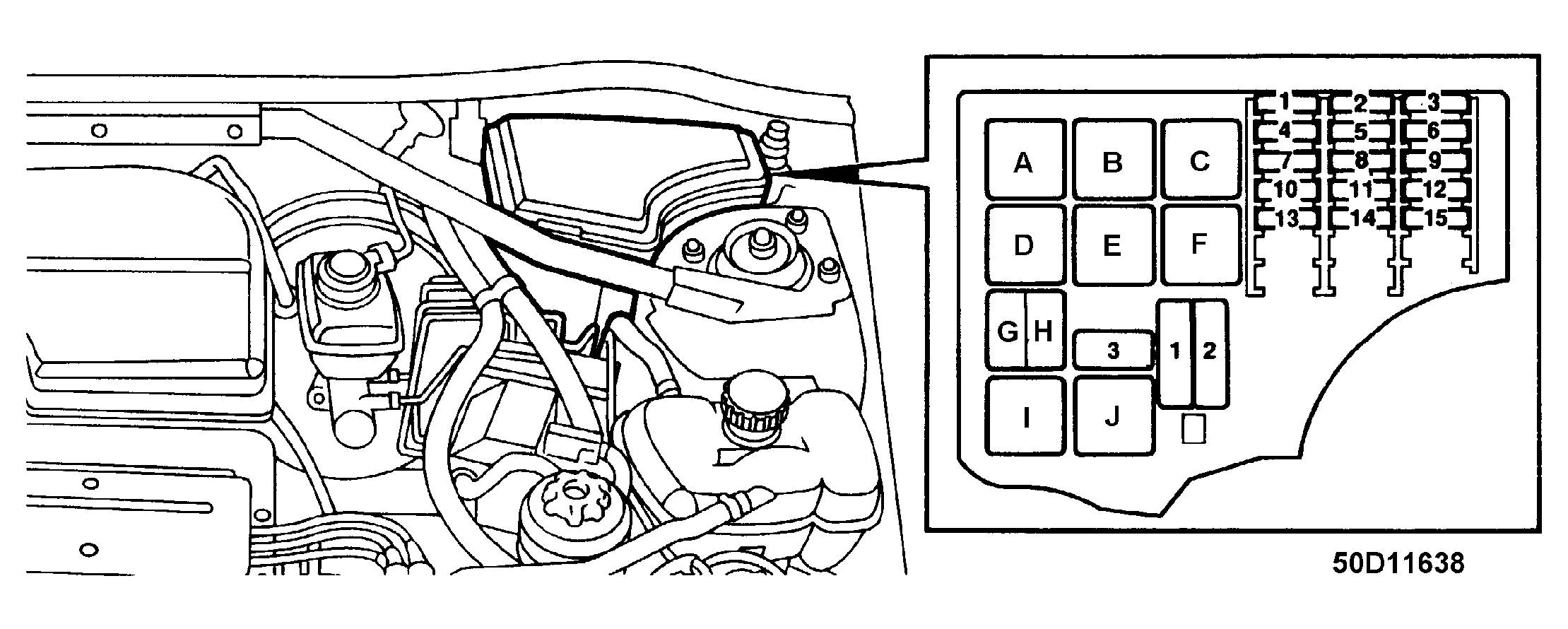

UNDERHOOD Fuse Panel Identification
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
- 1 - 10 Amp Horn
- 2 - 15 Amp Extra Foglihgts
- 3 - 40 Amp Radiator Fan, Low Speed
- 4 - Not Used
- 5 - 15 Amp Relay, A/C Compressor
- 6 - 15 Amp Dipped Beam, LH Side
- 7 - 15 Amp Dipped Beam, RH Side
- 8 - 15 Amp Full Beam, LH Side
- 9 - 15 Amp Full Beam, RH Side
- 10 - 7.5 Amp Headlamp Wipers
- 11 - 10 Amp Headlamp Beam Adjustment
- 12 - 10 Amp Valve, Secondary Air
