Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

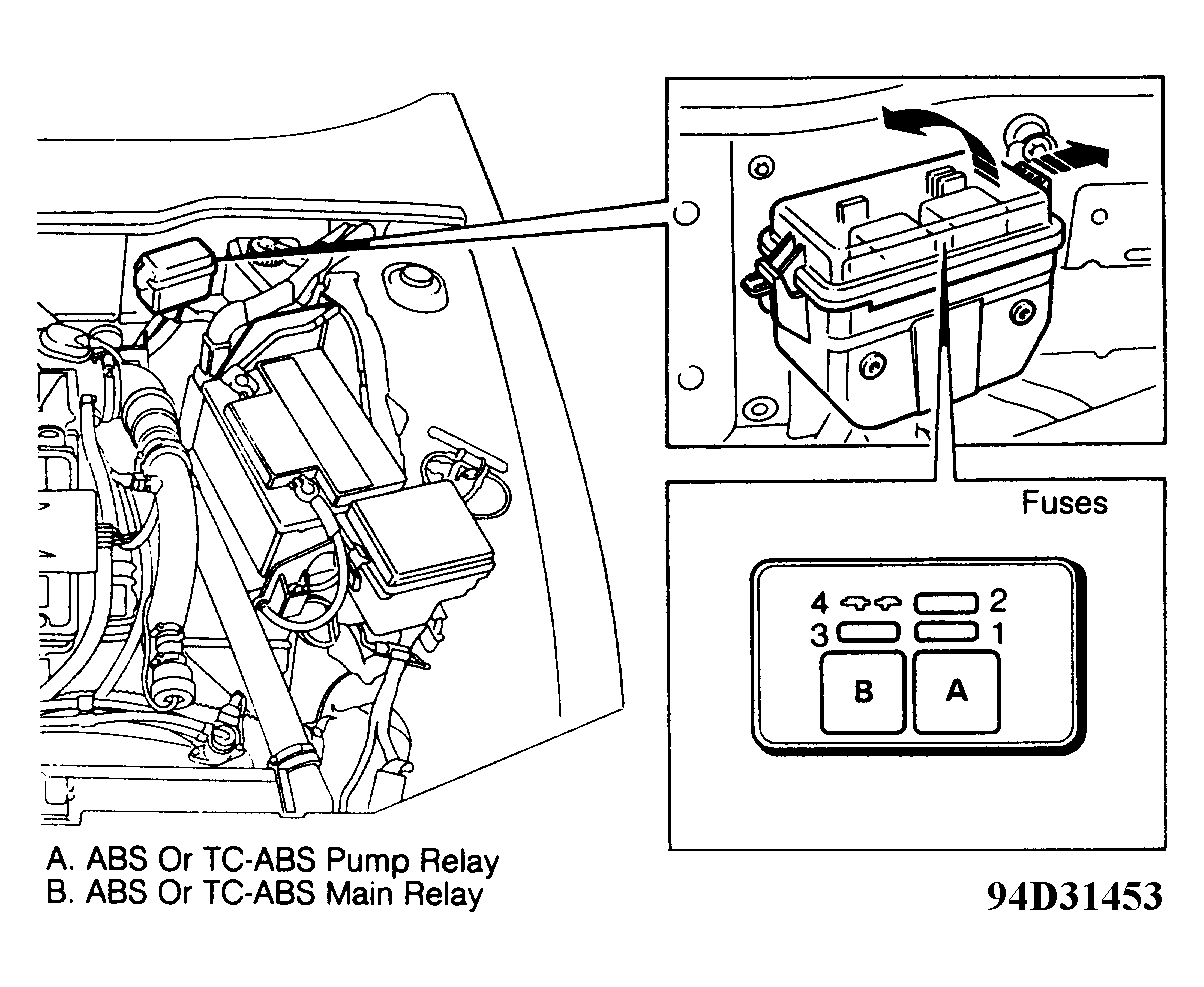

| Fuse/Relay Block (ABS/TC-ABS) |
Left rear corner of engine compartment. See Figure
. |

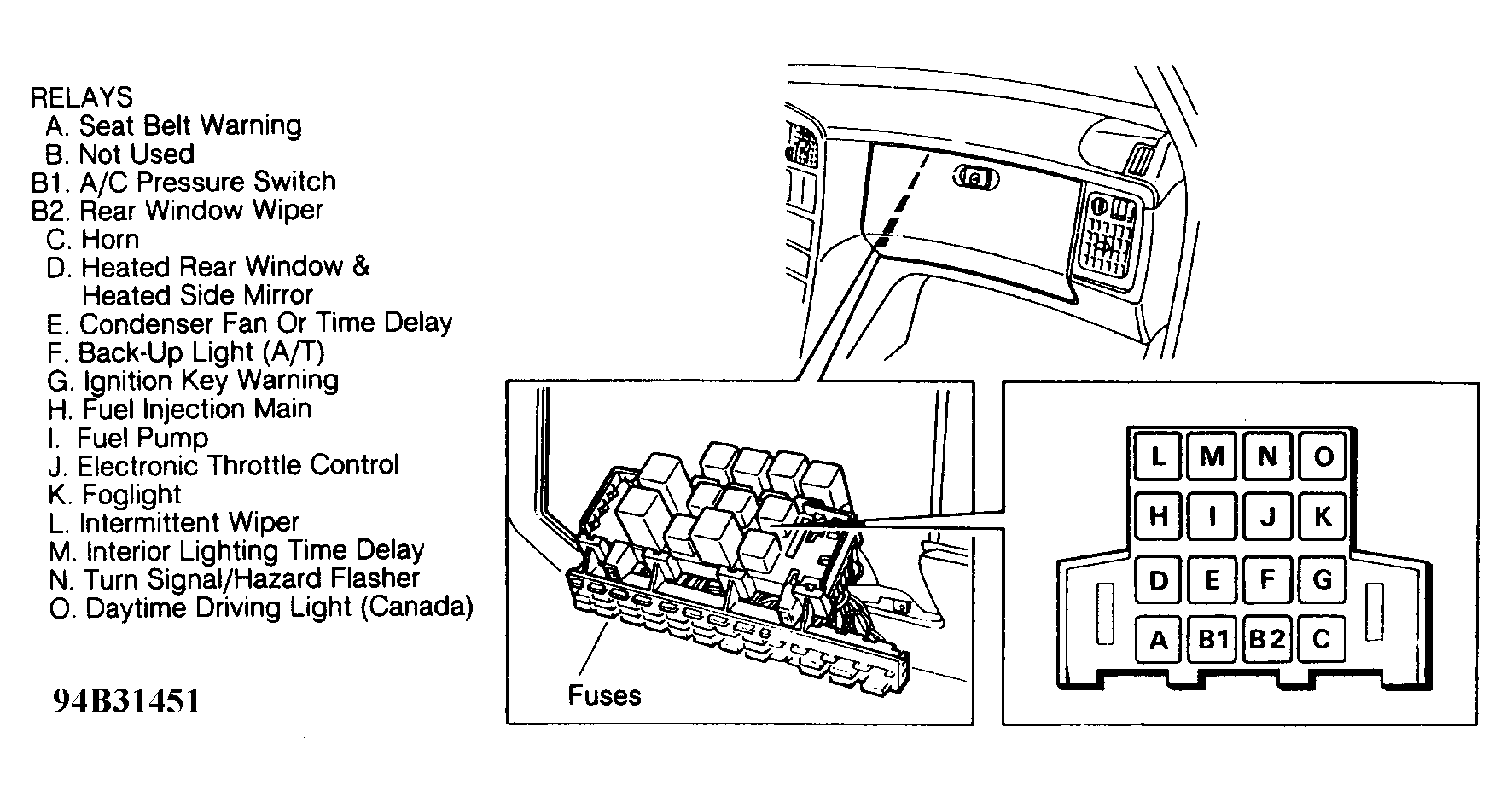

| Fuse/Relay Block (Passenger Compartment) |
In glove box. See Figure
. |

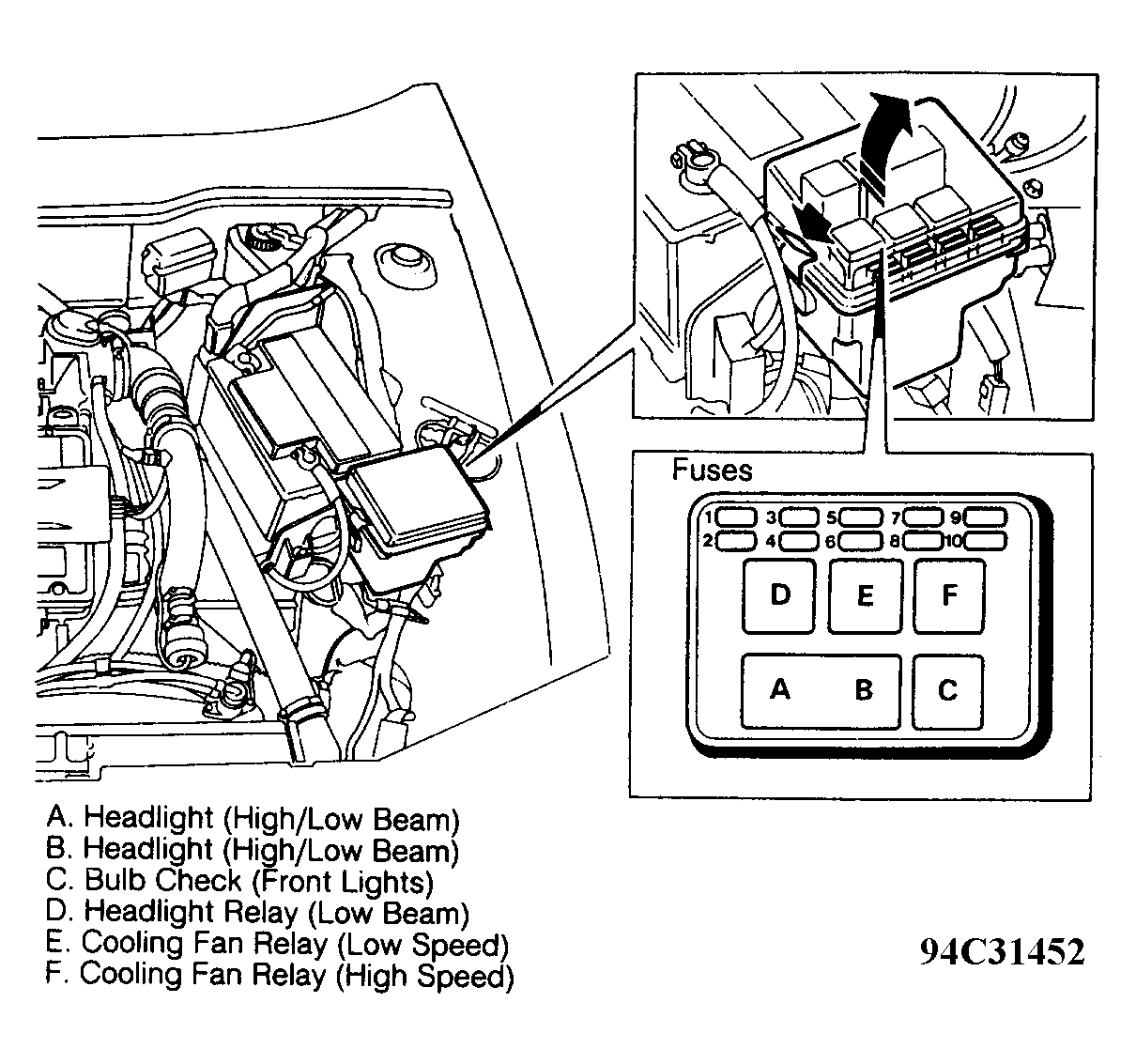

| Fuse/Relay Block (Engine Compartment) |
On left front inner fender panel. See Figure
. |
