Control Units
CONTROL UNITS

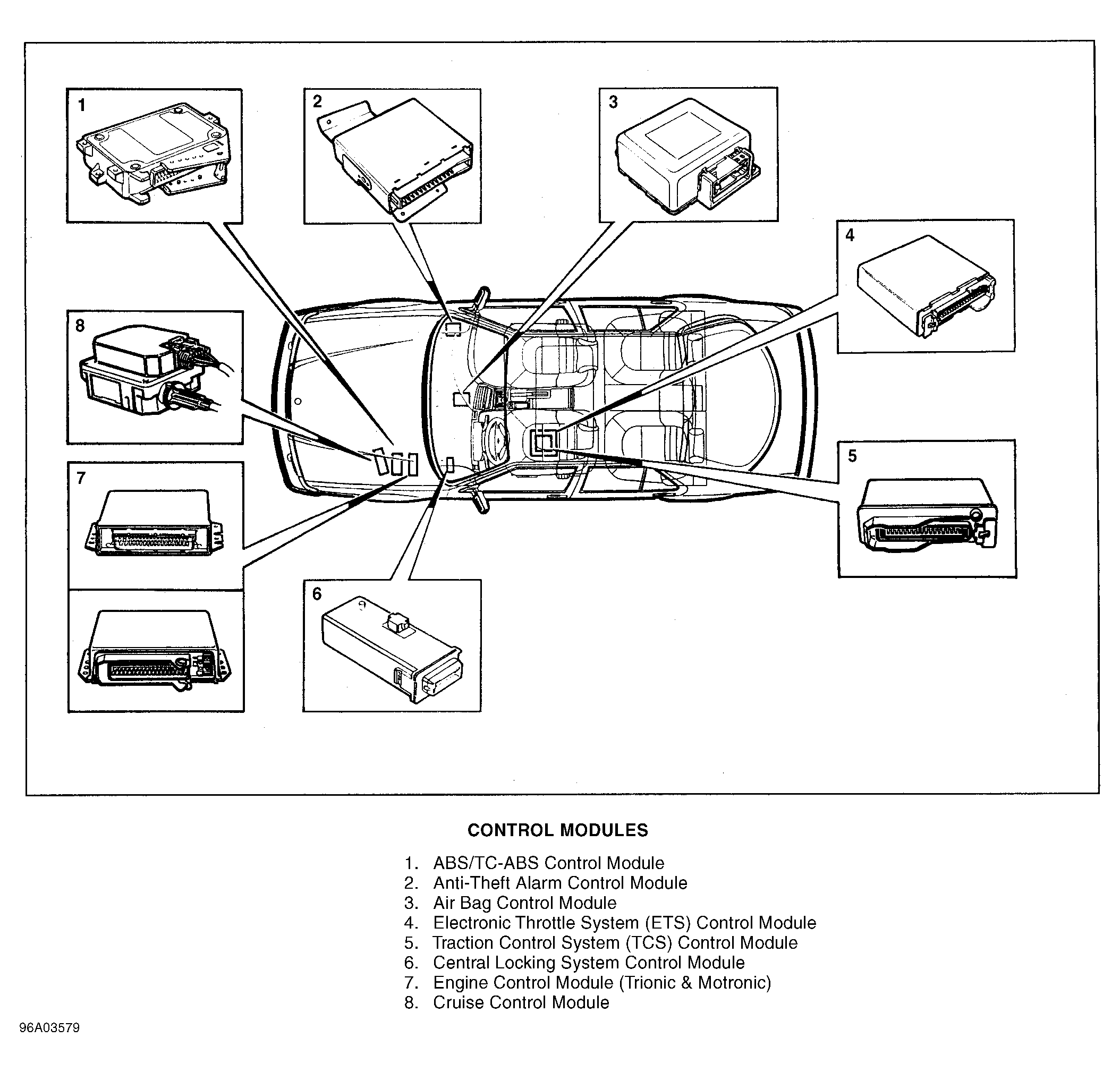

| Component | Component Location |
|---|---|
| ABS/TC-ABS Control Module | On left side of engine compartment, on battery tray. See Figure . |
| Air Bag Control Module | Behind front of center console. See Figure . |
| Anti-Theft Alarm Control Module | Behind right side of dash. See Figure . |
| Automatic Climate Control (ACC) Fan Speed Control Unit | On evaporator housing. |
| Automatic Climate Control (ACC) Unit | Part of ACC control panel, on center of dash. |
| Central Locking Control System Control Module | Behind left side of dash. See Figure . |
| Cruise Control Module | Near battery tray. See Figure . |
| Electronic Throttle System (ETS) Control Module | Under driver's seat. See Figure . |
| Engine Control Module (Trionic & Motronic) | On upper left side of firewall. See Figure . |
| Ignition Discharge Module | On valve cover. |
| Seat Adjustment Control Unit (With Memory Function) | Under driver's seat. |
| Traction Control System (TCS) Control Module | Under driver's seat. See Figure . |
