Servicing - A/T: Identification

Use illustrations for transaxle identification. See Fig 1 , Fig 2 or Fig 3 .

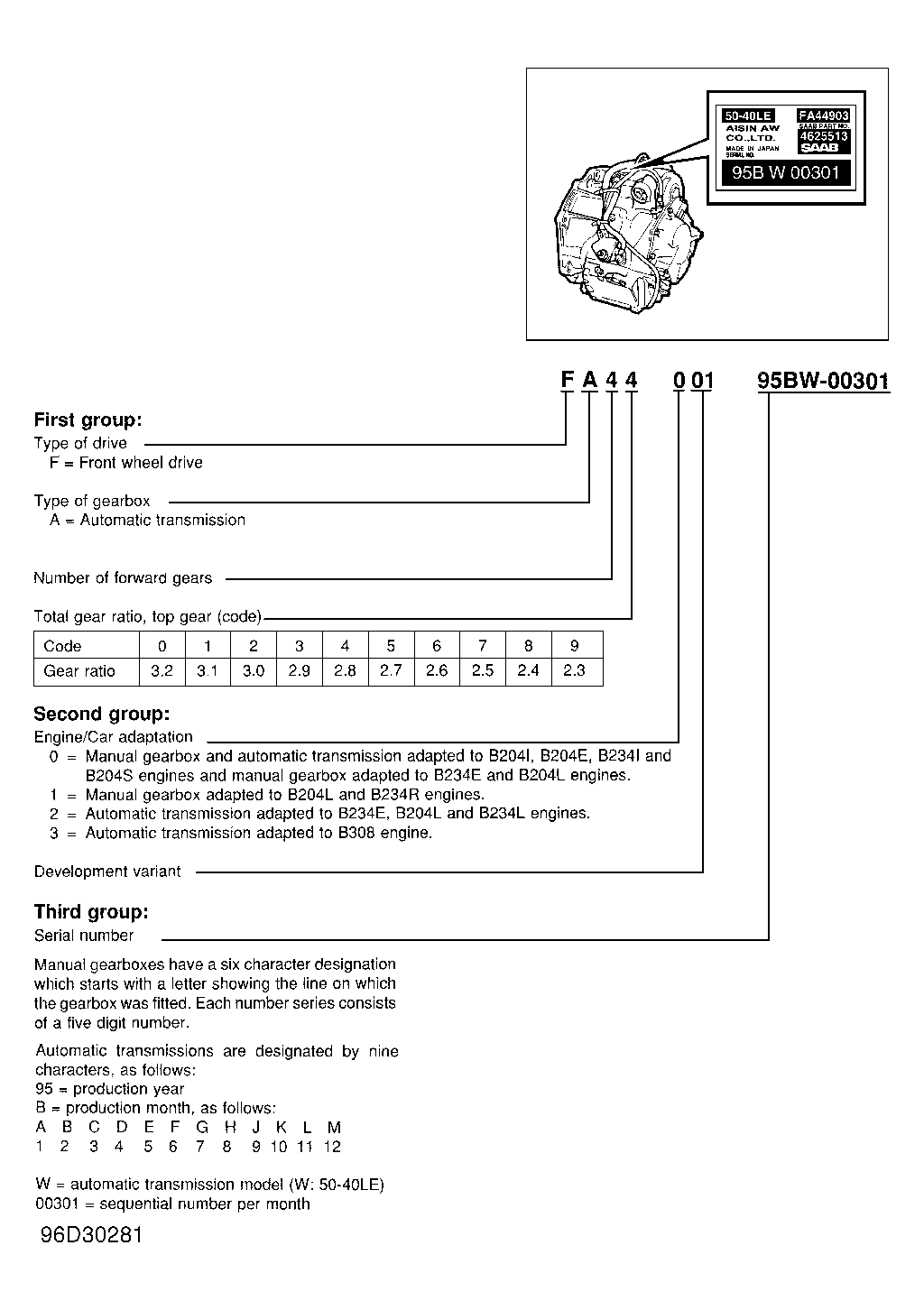

Fig 1: Identifying Transaxle (900 Series)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

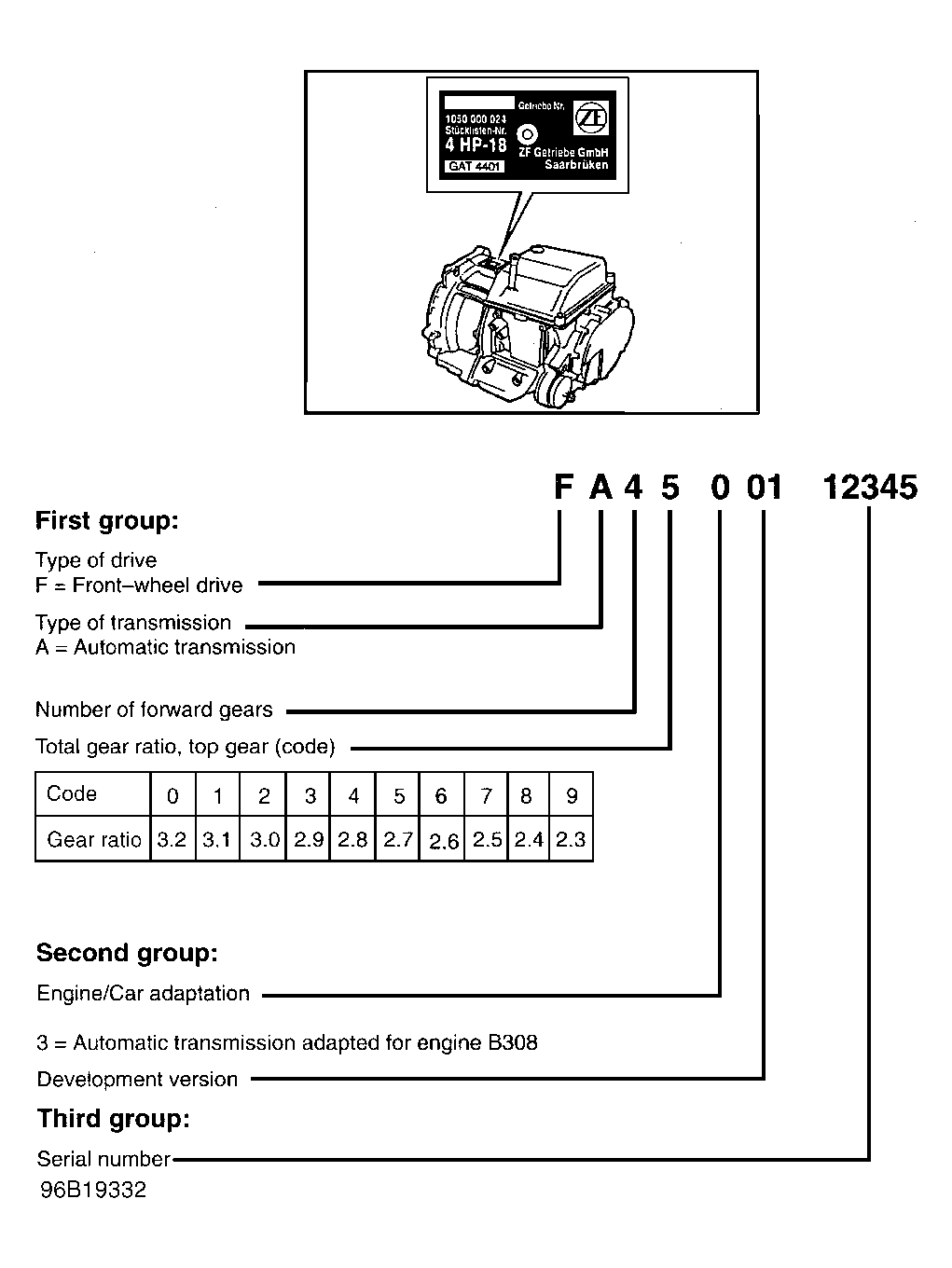

Fig 2: Identifying Transaxle (9000 4 Cyl. Series)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

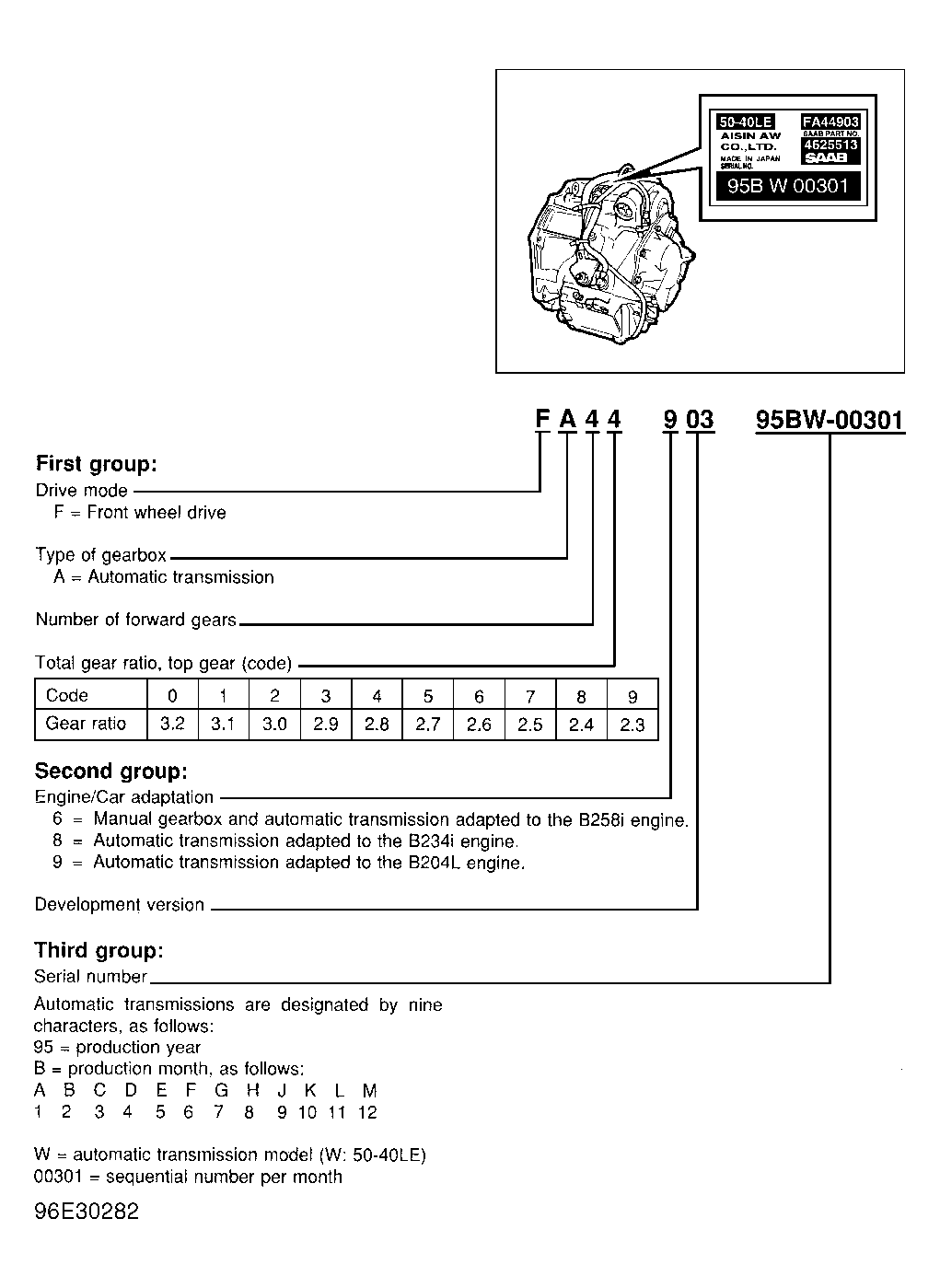

Fig 3: Identifying Transaxle (9000 V6 Series)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
