Control Units
CONTROL UNITS

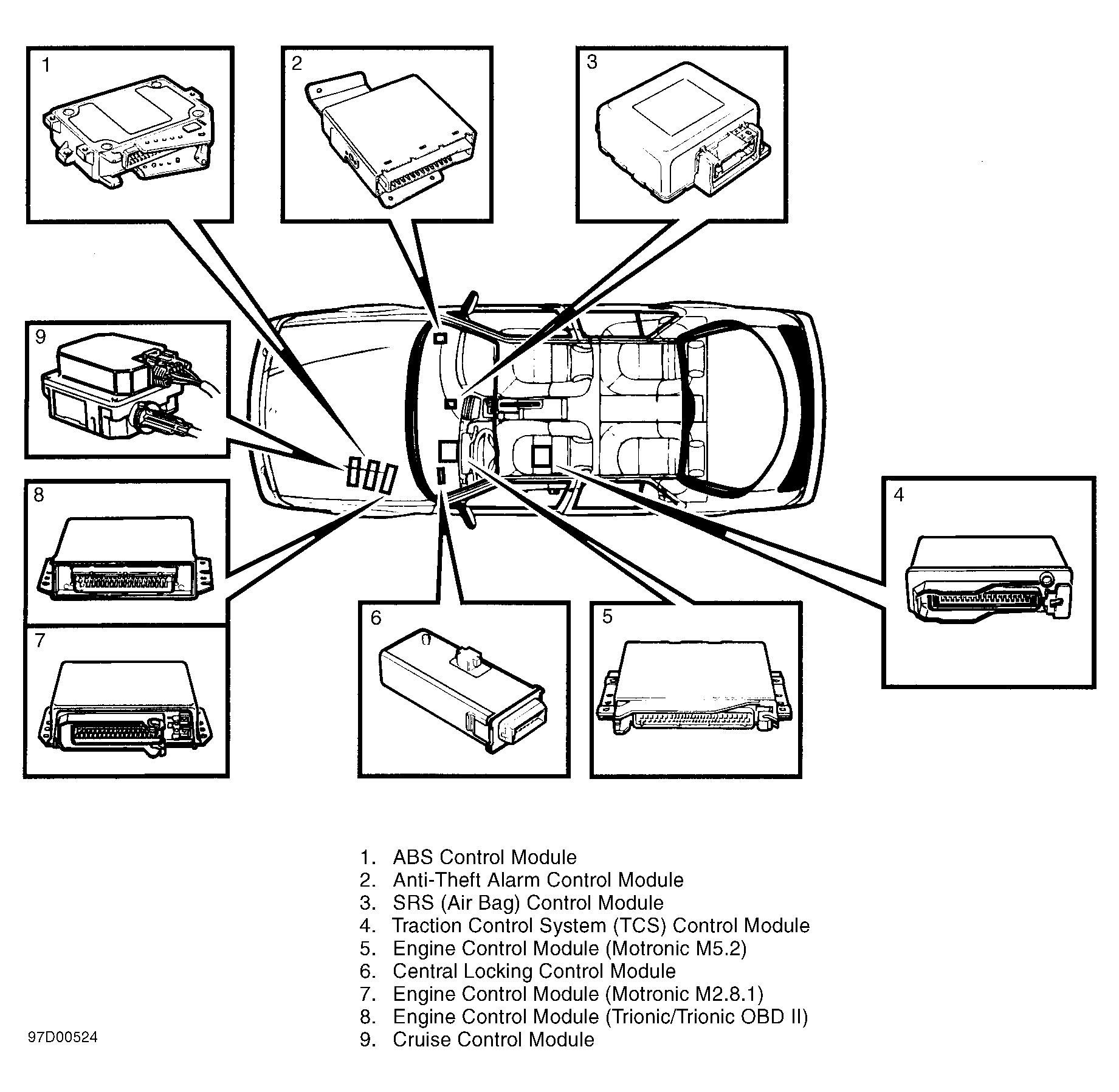

| Component | Component Location |
|---|---|
| ABS Control Module | On left side of engine compartment, on battery tray. See Figure . |
| ABS-TC Control Module | On left side of engine compartment, on battery tray. |
| Anti-Theft Alarm Control Module | Behind right side of dash. See Figure . |
| Automatic Climate Control (ACC) Fan Speed Control Unit | On evaporator housing. |
| Automatic Climate Control (ACC) Module | Part of ACC control panel, on center of dash. |
| Central Locking Control Module | Behind left side of dash. See Figure . |
| Cruise Control Module | Near battery tray. See Figure . |
| Engine Control Module (Motronic M2.8.1) | On upper left side of firewall. See Figure . |
| Engine Control Module (Motronic M5.2) | Behind left side of dash. See Figure . |
| Engine Control Module (Trionic/Trionic OBD II) | On upper left side of firewall. See Figure . |
| Ignition Coil Module | On left side of engine. |
| Seat Adjustment Control Unit (With Memory Function) | Under driver's seat. |
| SRS (Air Bag) Control Module | Behind front of center console. See Figure . |
| Traction Control System (TCS) Control Module | Under driver's seat. See Figure . |
