Generator & Regulator: Overhaul

NOTE: Refer to illustration for generator overhaul. See Fig 1.

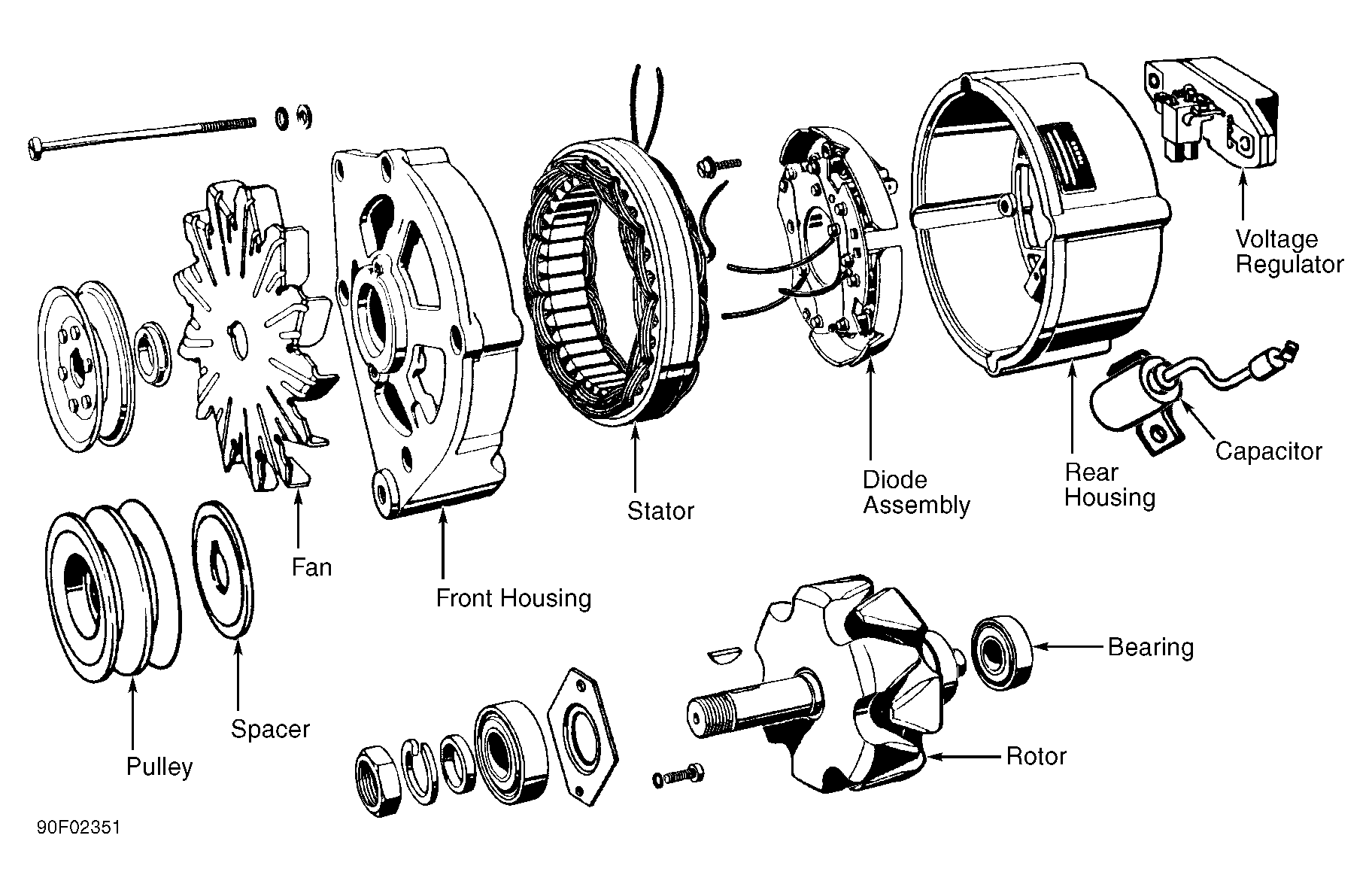

Fig 1: Exploded View Of Bosch 80-Amp Generator
G90F02351Courtesy of SAAB-SCANIA OF AMERICA, INC.
