To remove

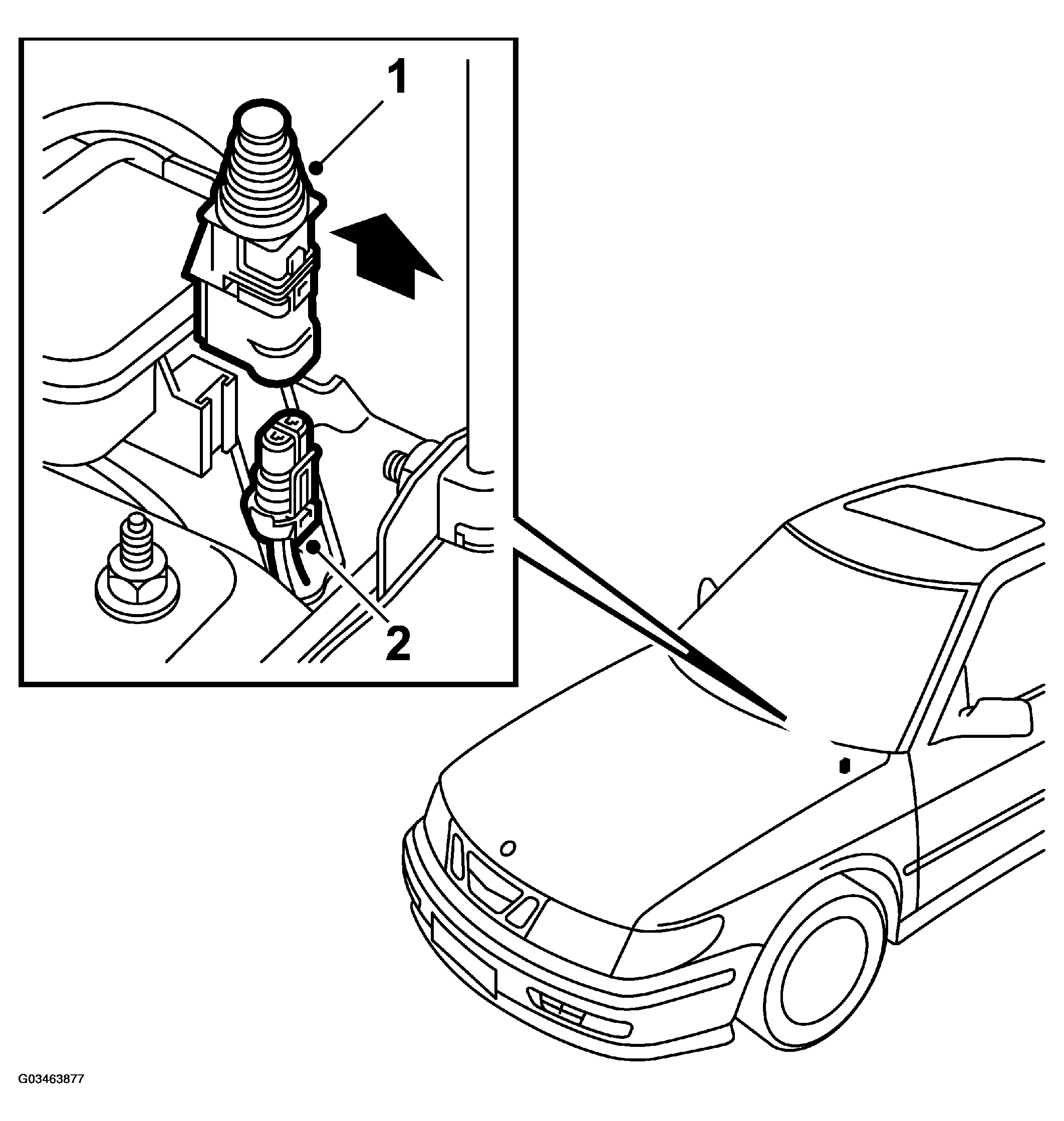

Fig 1: Removing Bonnet Switch
G03463877Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Withdraw the bonnet switch from the holder.
  2. Undo the connection and remove the bonnet switch.
