Receiver, remote control: Notes

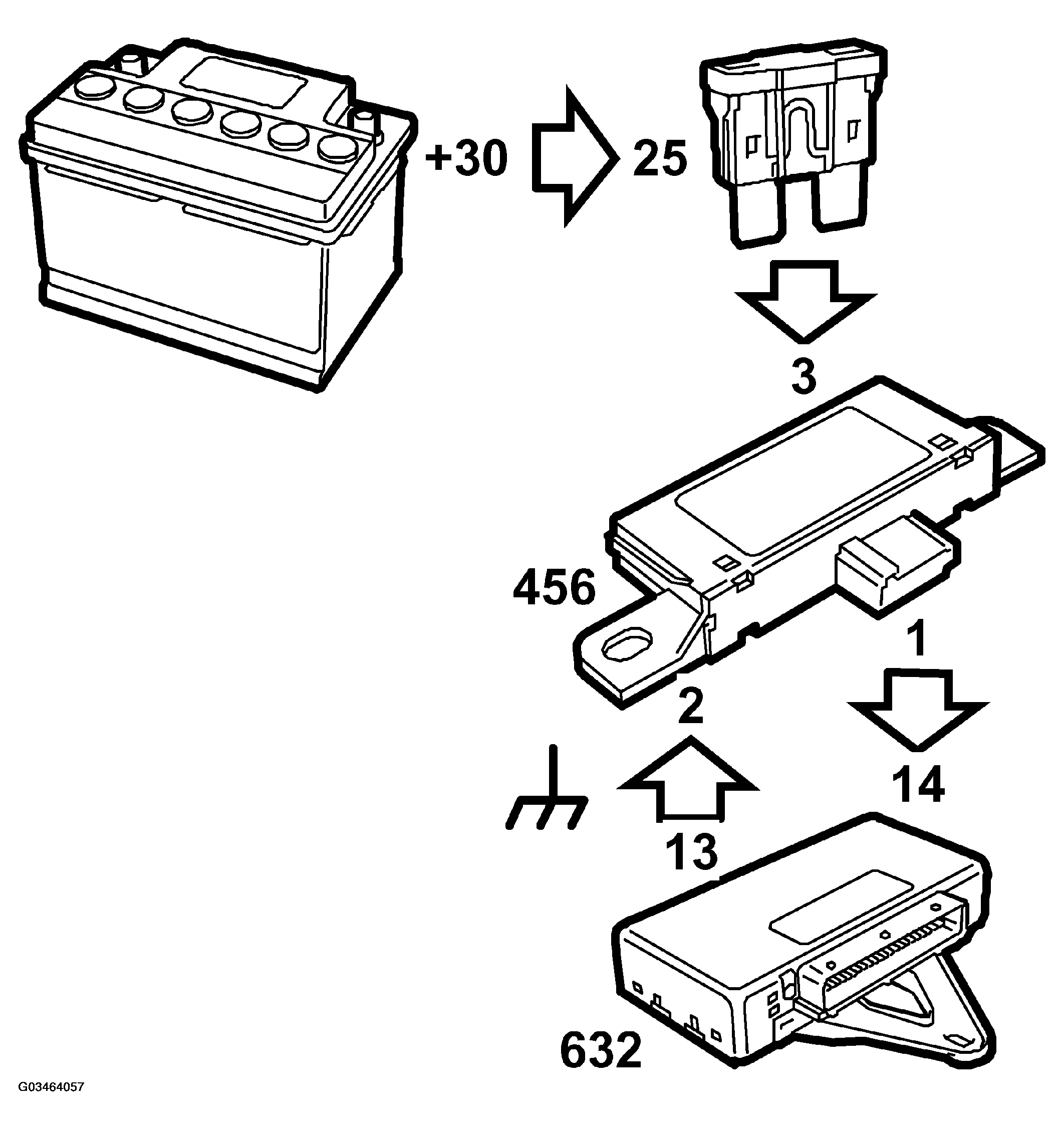

Fig 1: View Of Receiver, Remote Control
G03464057Courtesy of SAAB-SCANIA OF AMERICA, INC.

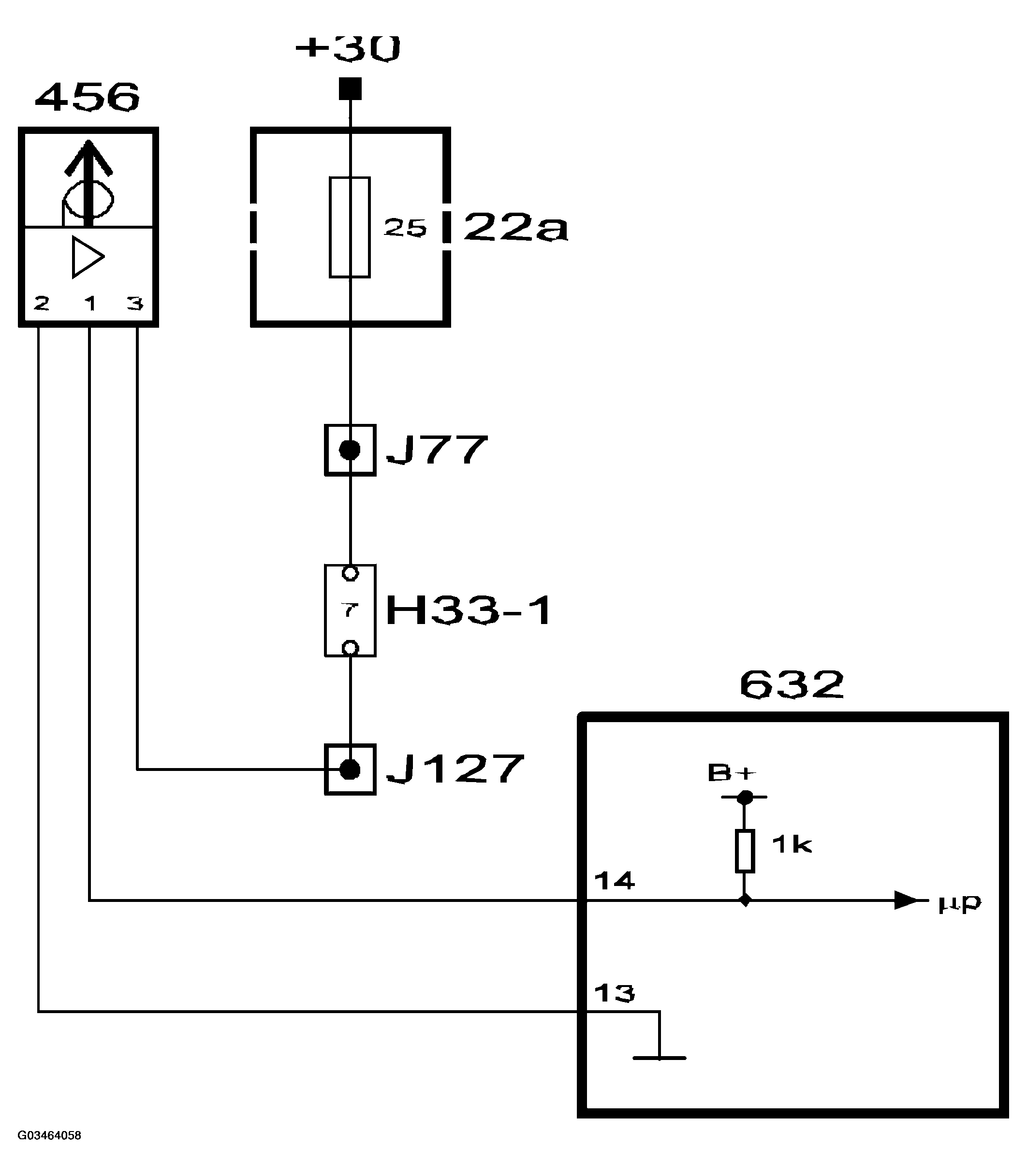

Fig 2: Receiver, Remote Control - Circuit Diagram
G03464058Courtesy of SAAB-SCANIA OF AMERICA, INC.
