Starting system with immobilizer: Notes

For wiring diagram, see

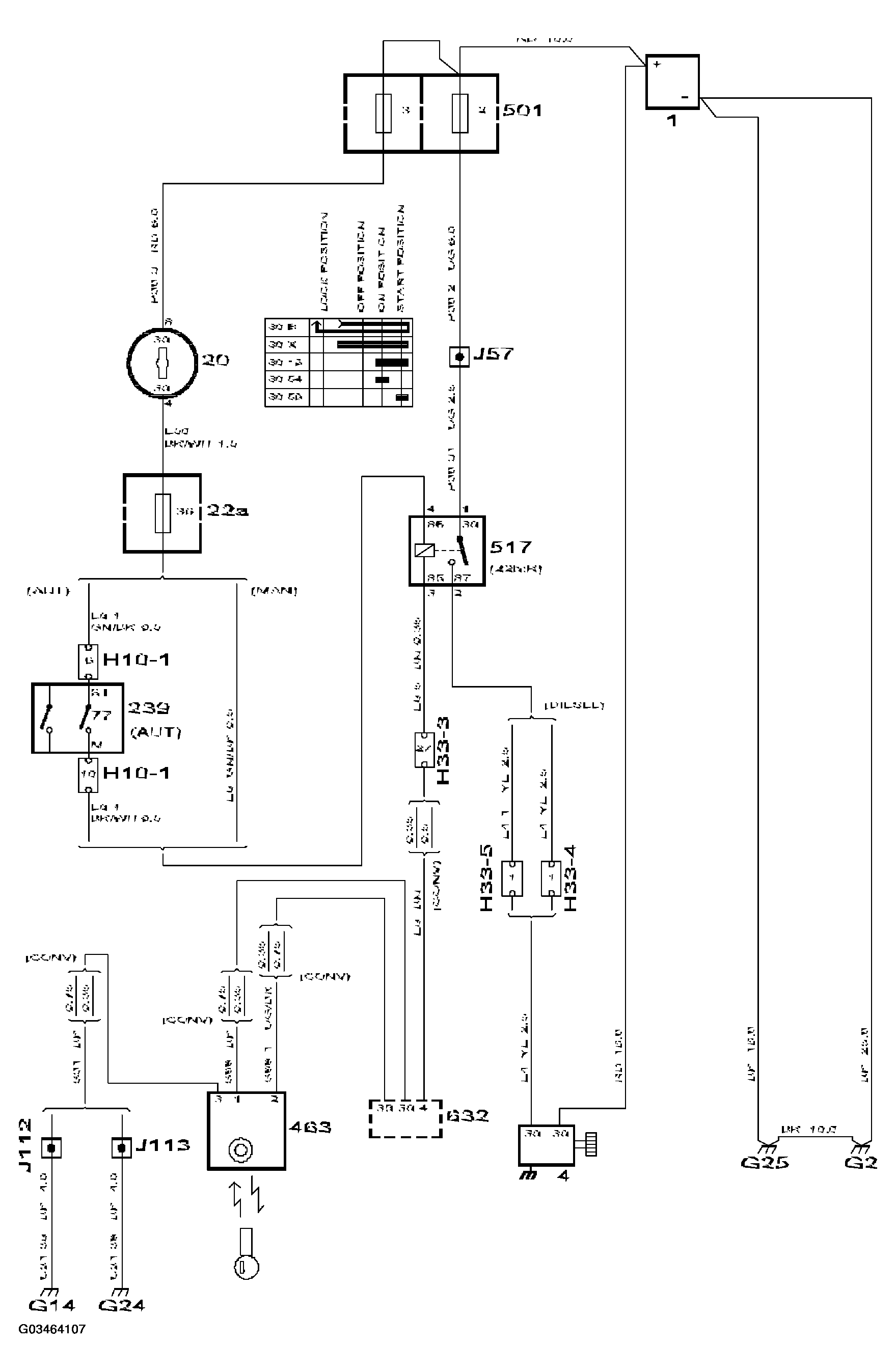

Fig 1: Starting System With Immobilizer - Circuit Diagram
G03464107Courtesy of SAAB-SCANIA OF AMERICA, INC.
