To remove

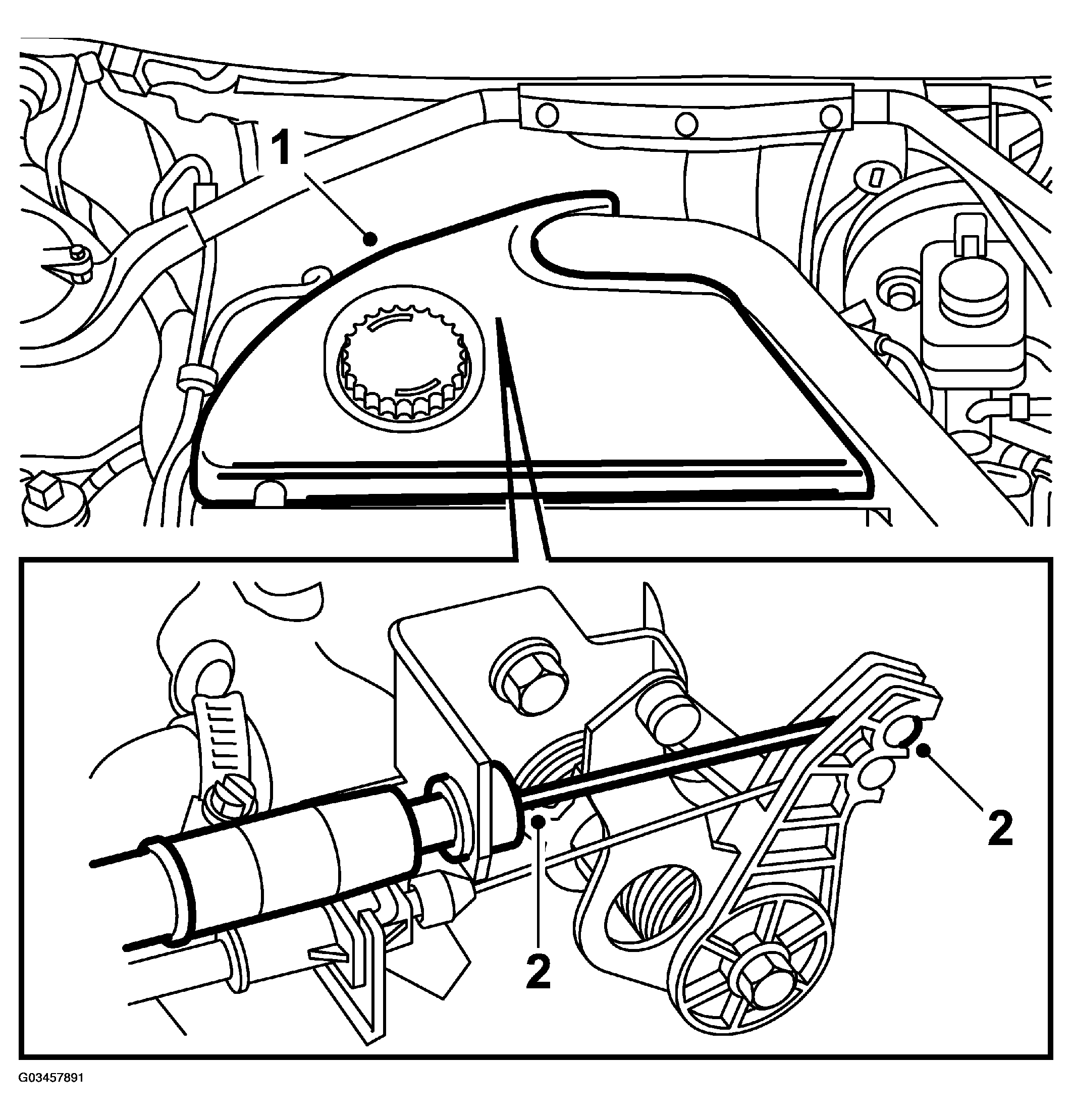

Fig 1: Removing Resonating Chamber Or Cover Over Intake Manifold
G03457891
  1. Remove the resonating chamber or the cover over the intake manifold.
  2. Undo the clip and unhook the throttle cable from the cable mounting. Remove the clip and cable from the link arm.
  3. Remove the lower section of the dashboard and unhook the throttle cable from the accelerator.

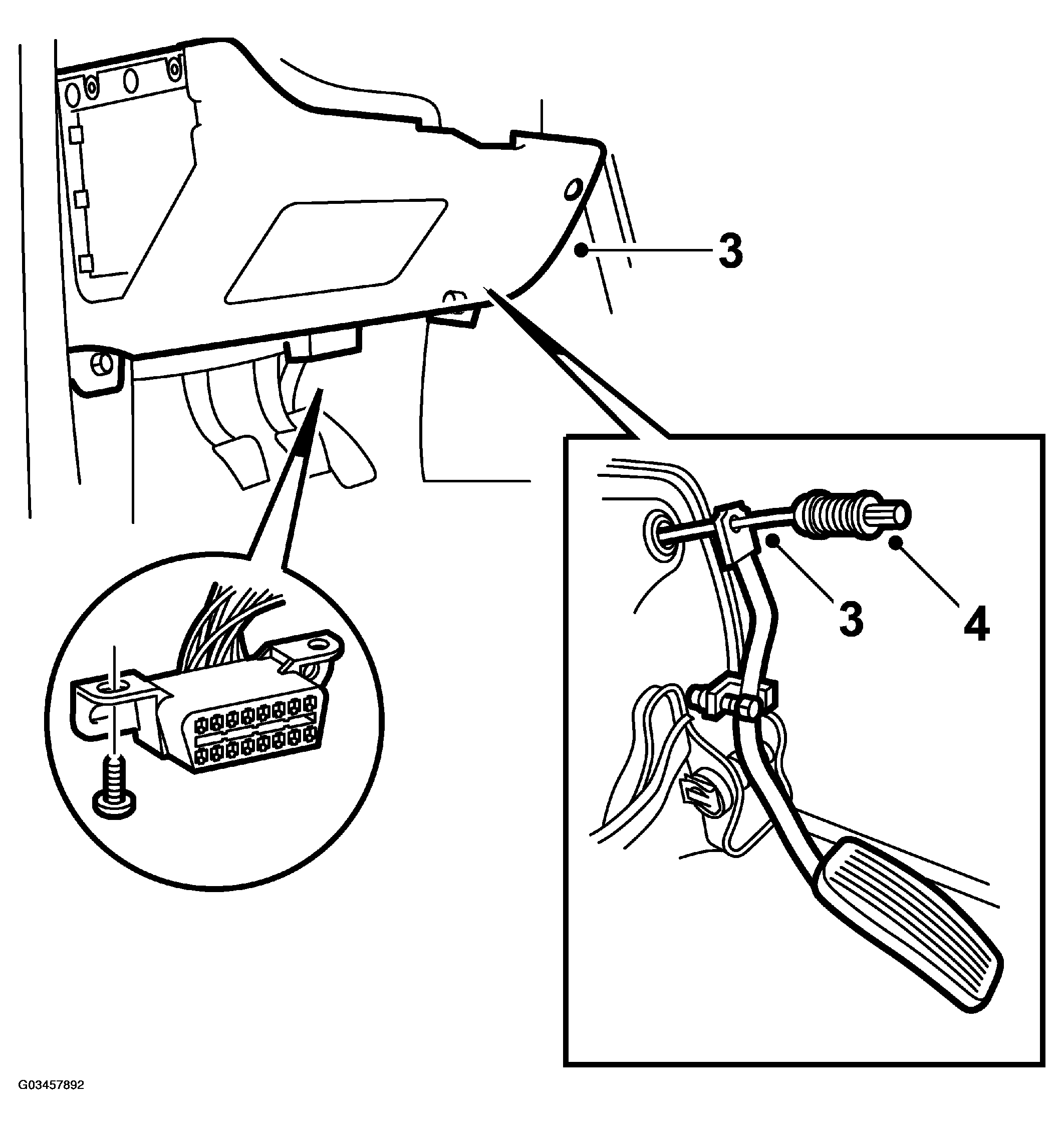

    Fig 2: Unhooking The Throttle Cable From The Accelerator
    G03457892
  4. Grasp the plastic sleeve and pull the throttle cable through the bulkhead partition and into the engine bay.
