Key switch in front doors

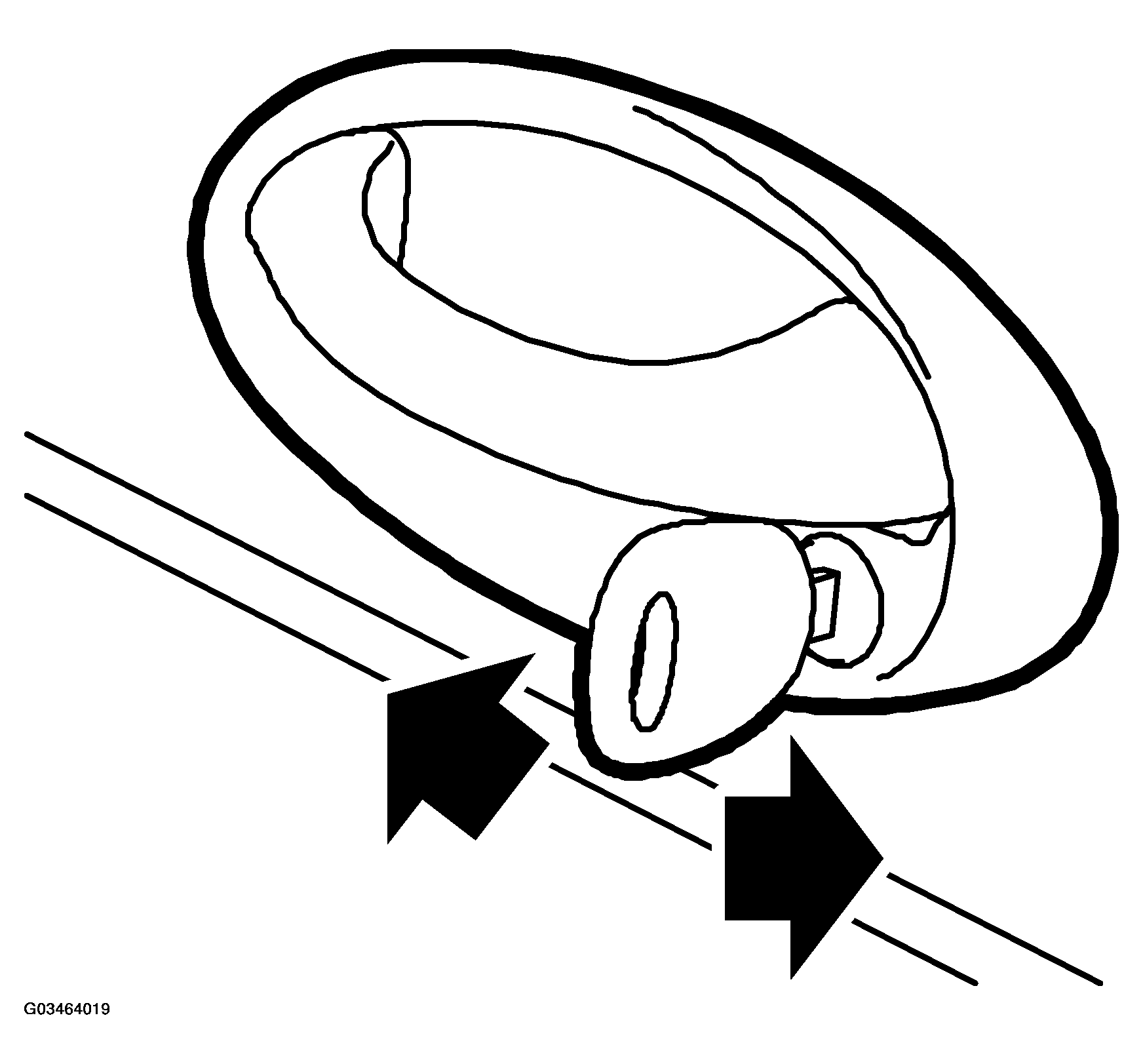

Fig 1: View Of Key Switch In Front Doors
G03464019Courtesy of SAAB-SCANIA OF AMERICA, INC.
FRONT DOOR KEY SWITCH LOCATION AND TYPE

Location   In lock unit
Type   Normally open
Lock: Pin No. 6
Unlock: Pin No. 2
Ground Pin No. 5
