Bonnet switch

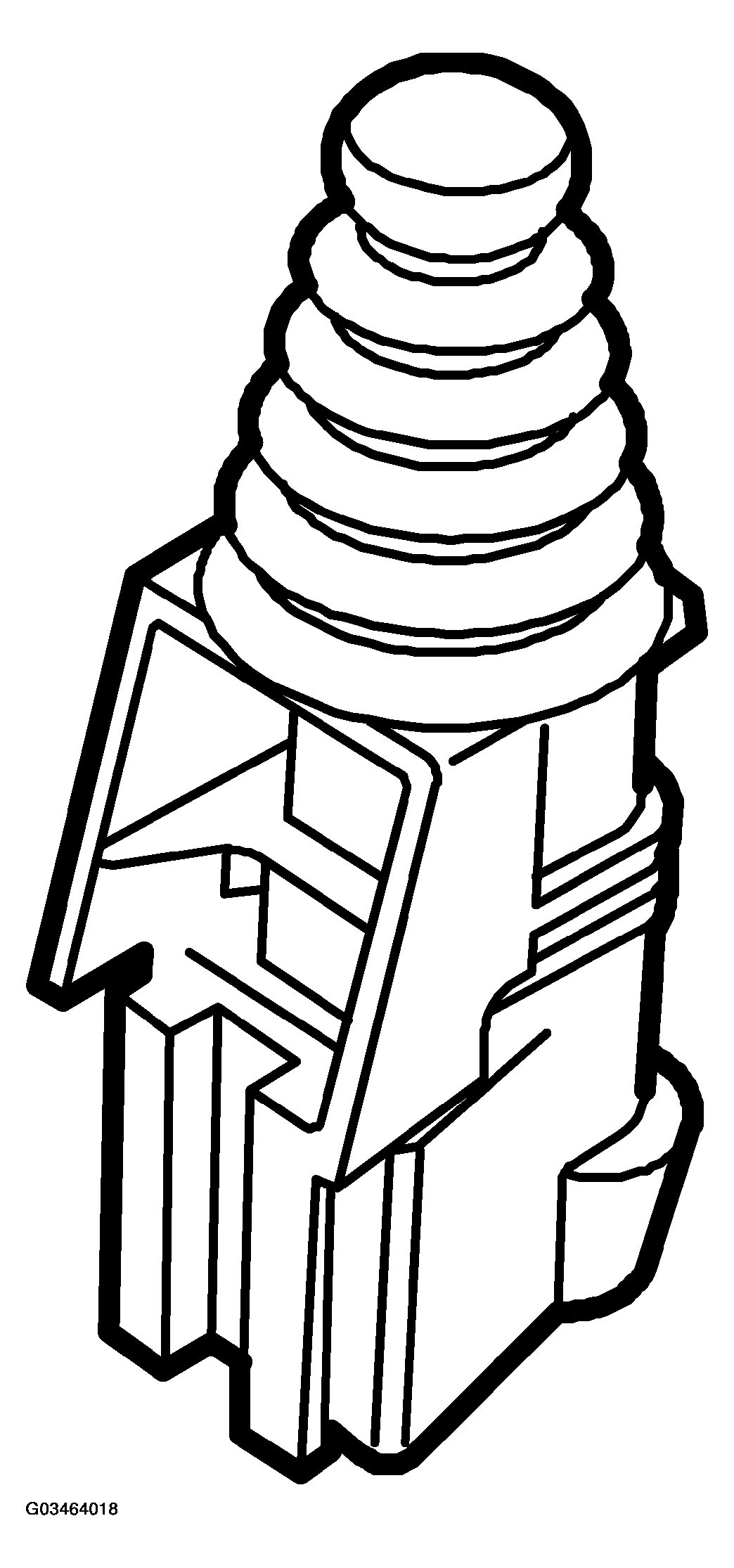

Fig 1: View Of Bonnet Switch
G03464018Courtesy of SAAB-SCANIA OF AMERICA, INC.
BONNET SWITCH LOCATION AND TYPE

Location   Bonnet rear edge
Type   Normally open when bonnet is closed
Power supply PWM approx. 3.5%: Pin No. 2
Ground: Pin No. 1
