Direction indicators: Notes

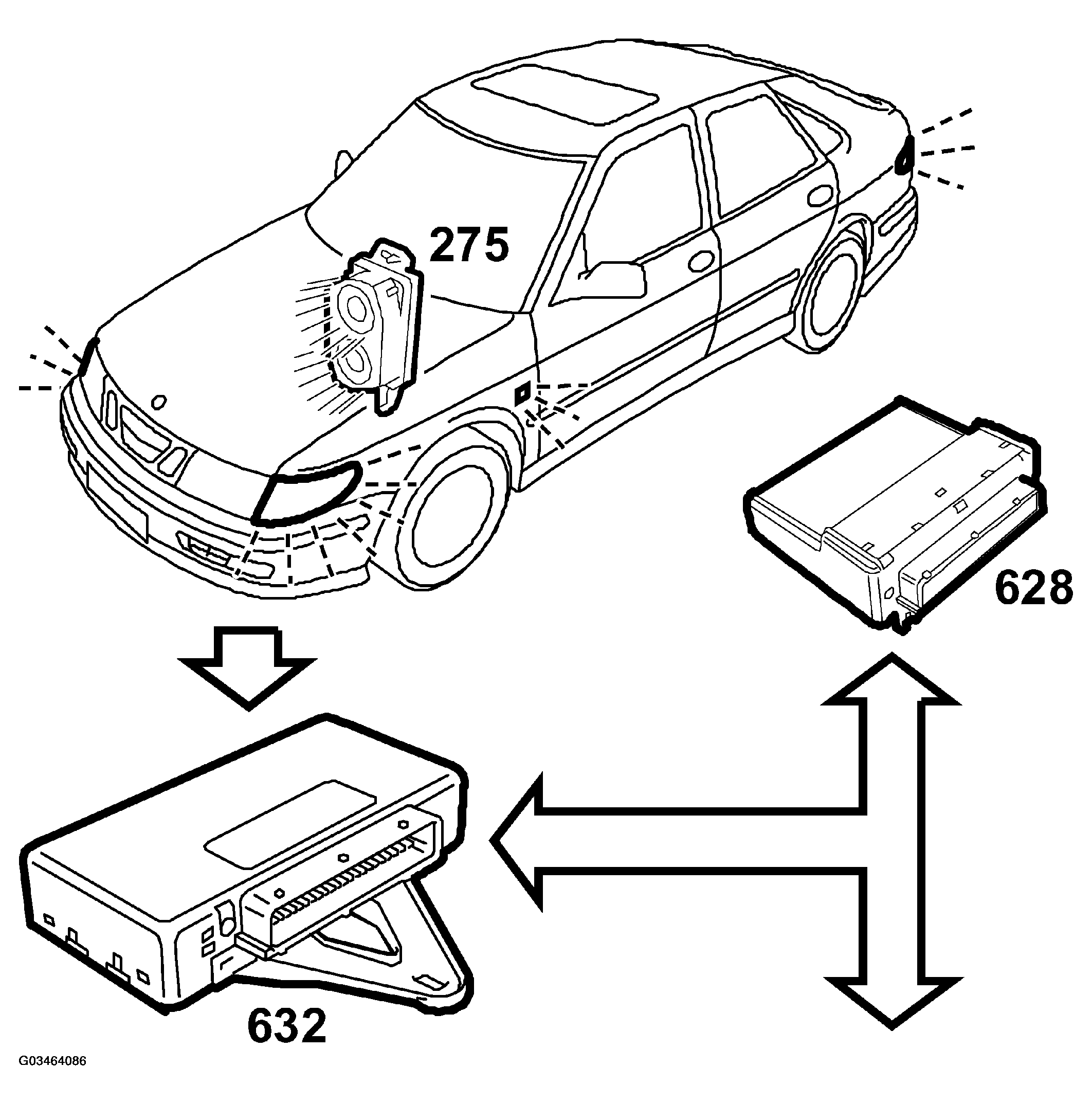

Fig 1: Identifying Direction Indicators
G03464086Courtesy of SAAB-SCANIA OF AMERICA, INC.

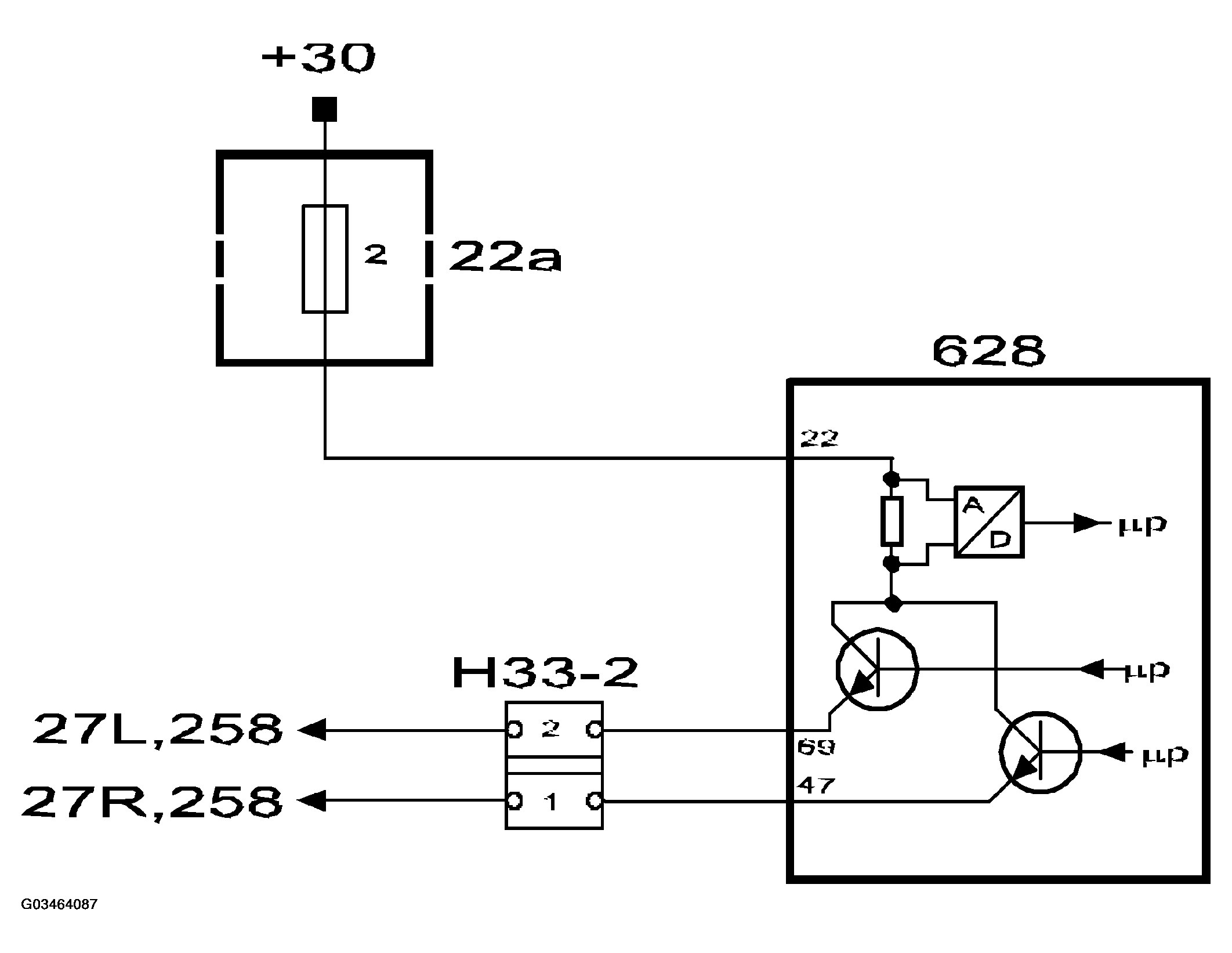

Fig 2: Direction Indicators - Circuit Diagram
G03464087Courtesy of SAAB-SCANIA OF AMERICA, INC.
