To Remove

  1. Detach the wire from the control module.

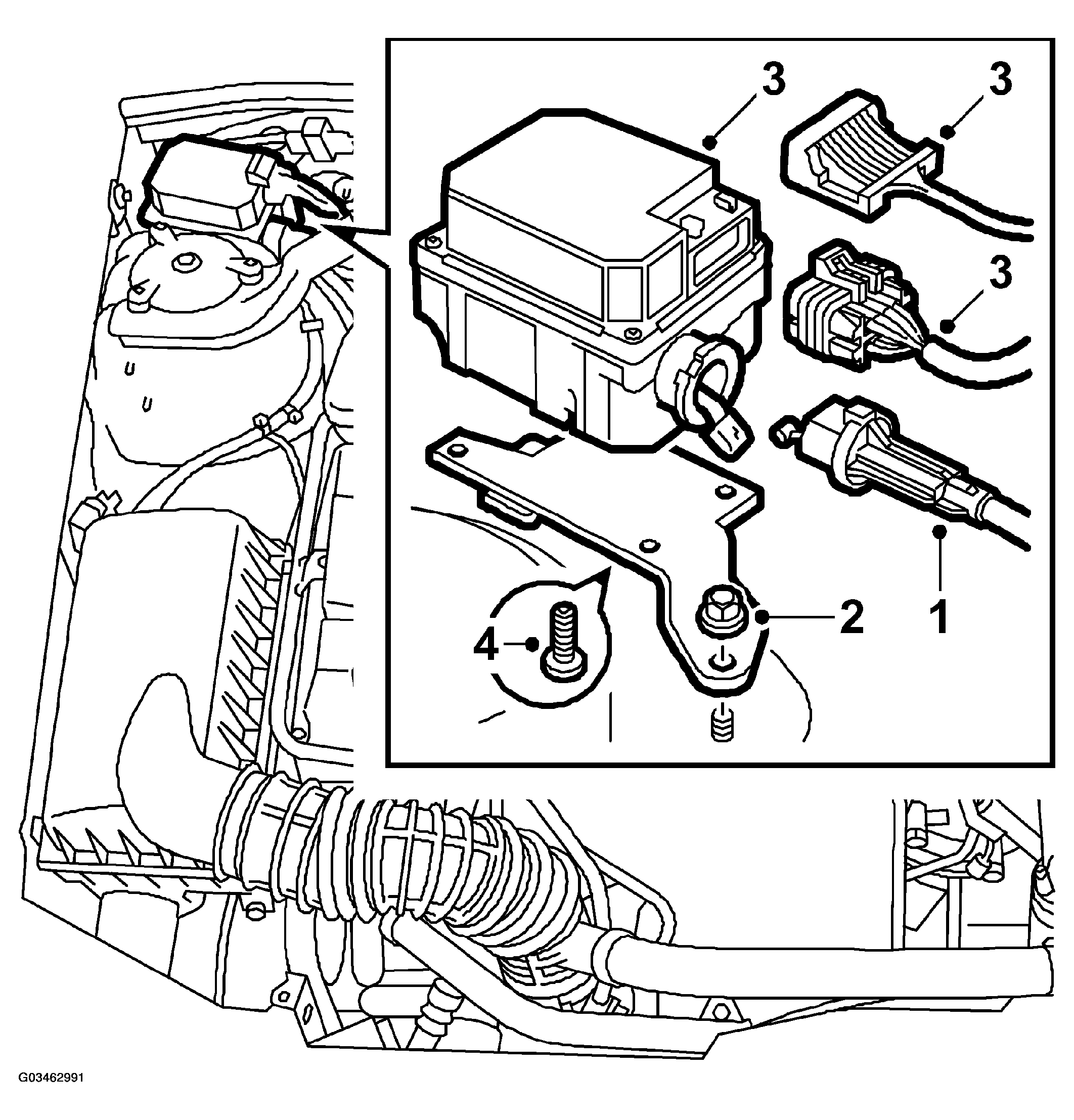

    Fig 1: Detaching Wire From Control Module
    G03462991
  2. Remove the bolt securing the control module mounting bracket.
  3. Unplug the connector and lift out the control module and mounting bracket.
  4. Remove the screws securing the control module to the bracket.
