Control module inputs for the immobilizer

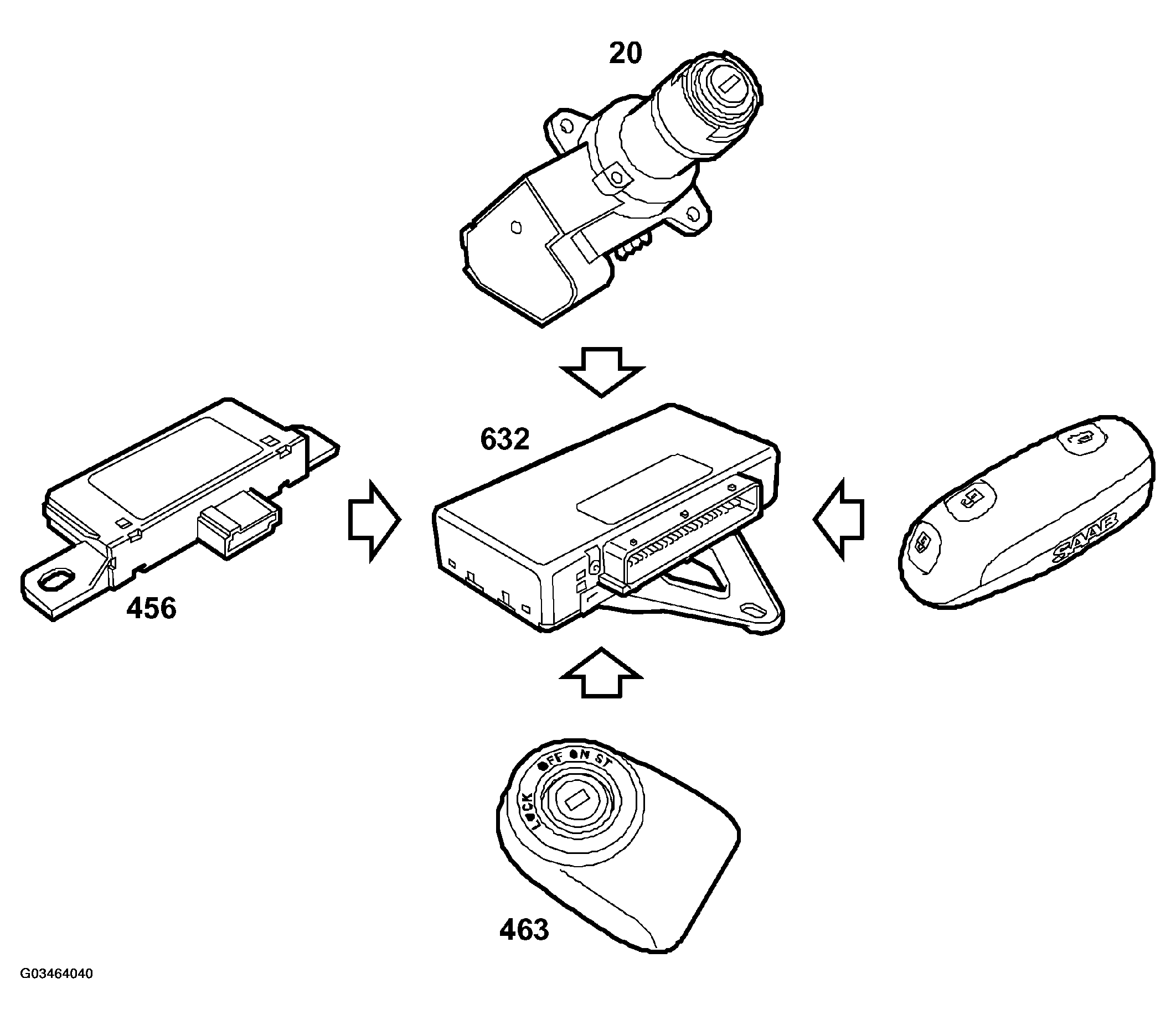

Fig 1: Identifying Control Module Inputs For Immobilizer
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Car key
Antenna unit, immobilizer (463)
Antenna, remote control, central locking system (456)
Ignition switch (20)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
