Control module inputs

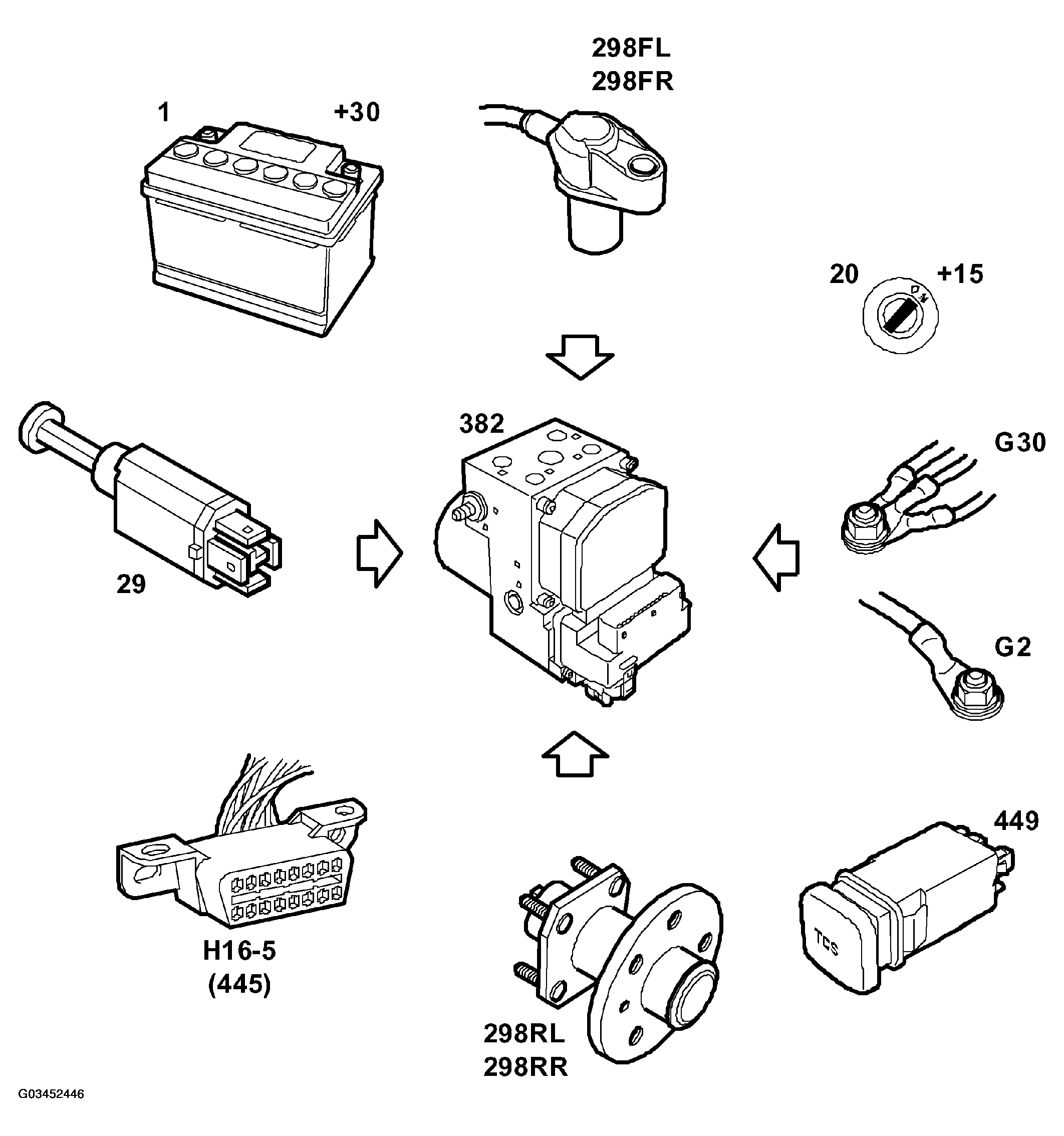

Fig 1: Identifying Control Module Inputs

G03452446

BATTERY VOLTAGE (+30 CIRCUIT) (1)
BATTERY VOLTAGE (+15 CIRCUIT) (20)
CONTROL MODULE GROUND (G30, G2)
FRONT-WHEEL SENSORS (298)
REAR-WHEEL SENSORS (298)
BRAKE-LIGHTS SWITCH (29)
DIAGNOSTICS COMMUNICATION (445)
SWITCH, TCS ON/OFF (449)
