User Programming

The ACC control module can have manual selections programmed by user that activate when vehicle is started. Functions not programmed by user will activate automatically according to ACC system parameters. ACC control module processor is active for 10 minutes after ignition is turned off. If ignition is turned on within 10 minutes of being turned off, any manual selections made during the last trip will be retained. After 10 minutes the ACC control module will use user-programmed selections.

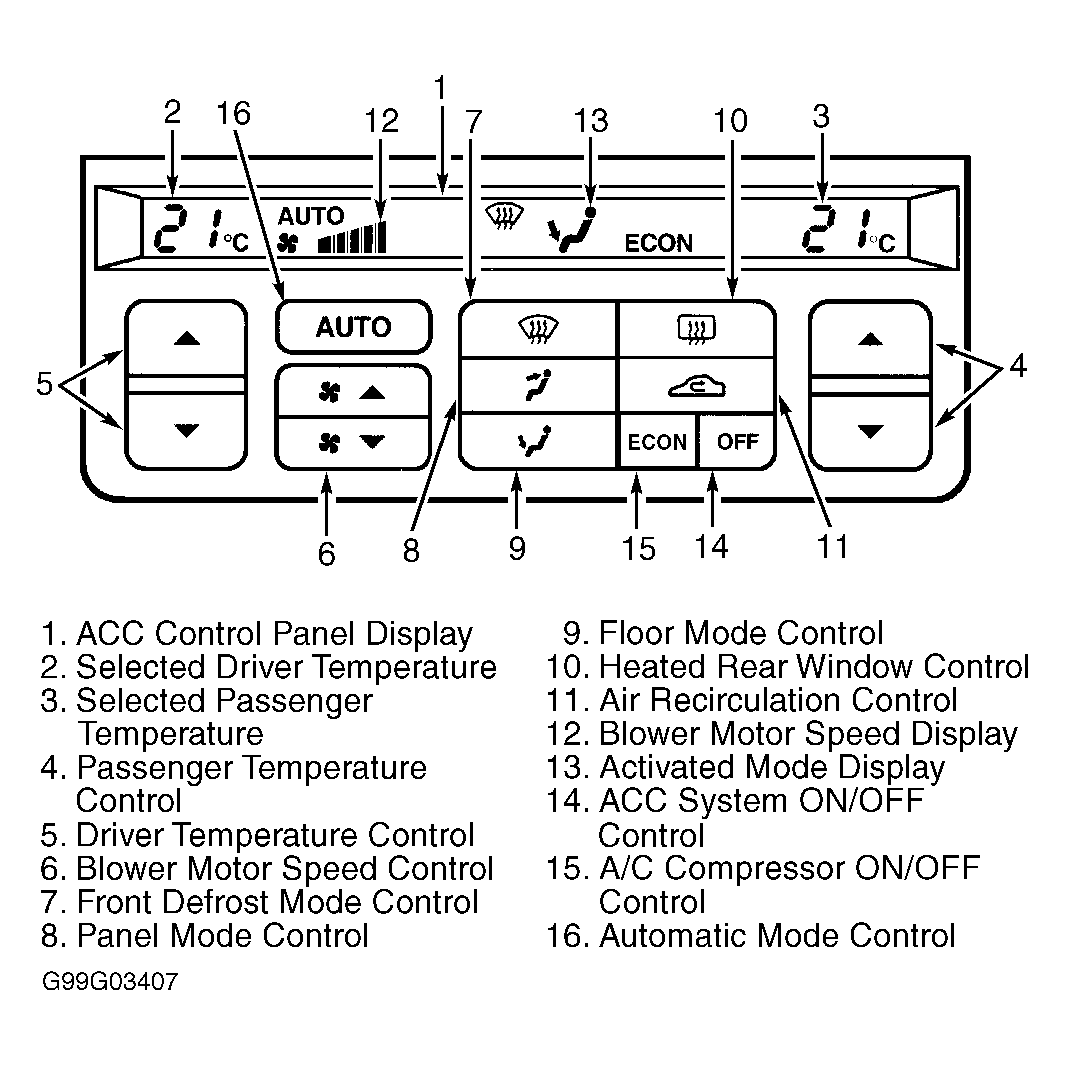

To access ACC control module user programming, turn ignition on and press function button corresponding to desired function. See Figure. Press OFF and heated rear window buttons simultaneously to save selection. Selected function will flash on ACC display. When user programming is complete, turn ignition off for at least 10 minutes to save selections in ACC system memory.

To cancel user programming, press AUTO and blower motor speed down buttons simultaneously. ACC display will flash to confirm selections have been cancelled. ACC control module can be programmed using a scan tool to always start with any manual selections made during the last trip.
