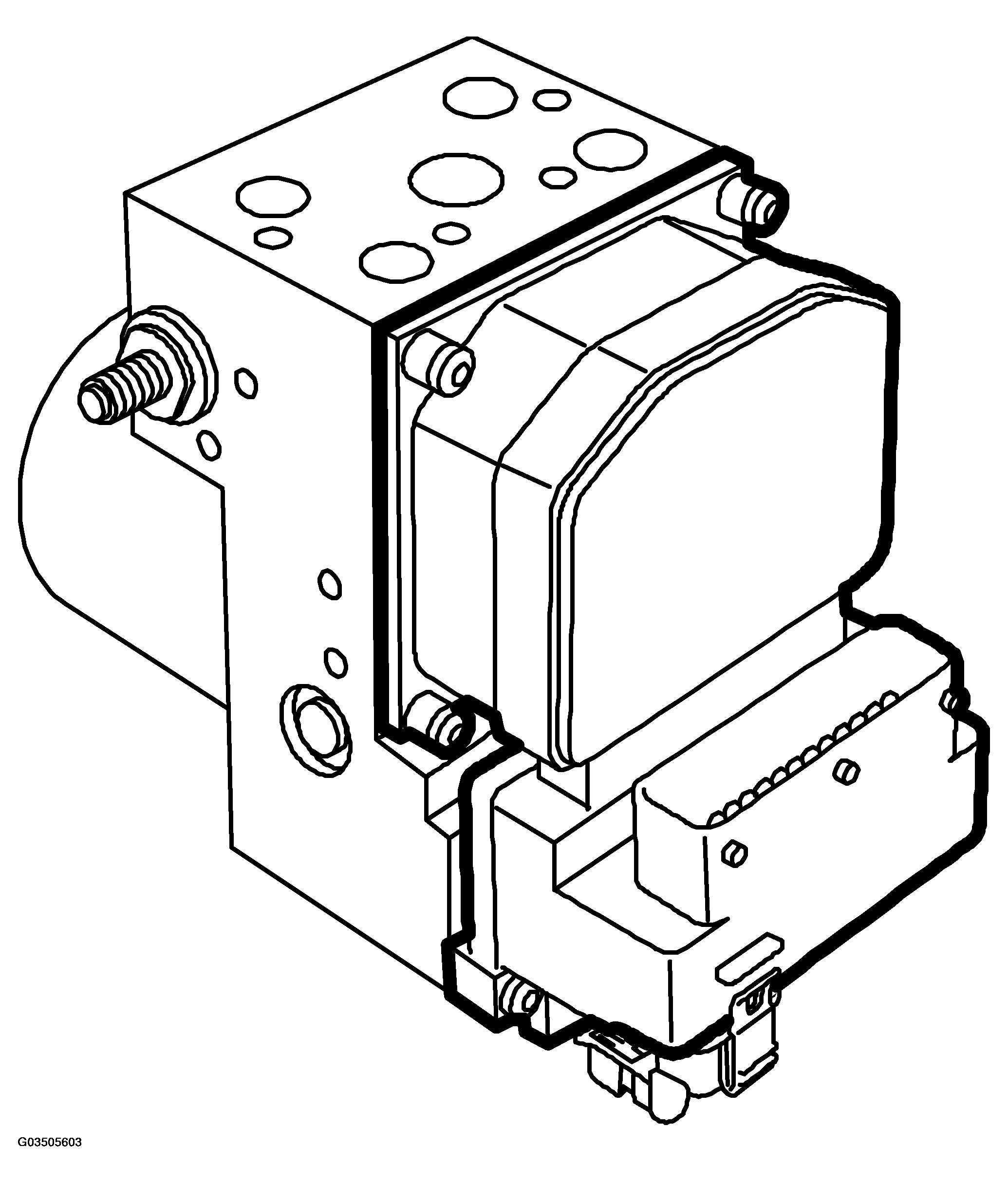

Control module
Courtesy of SAAB-SCANIA OF AMERICA, INC. CONTROL MODULE - TECHNICAL DATA
| Number of terminal pins |
31 pcs. |
| Power supply +30 |
pins 17 and 18 |
| Power supply +15 |
pin 15 |
| Main ground (G2) |
pin 19 |
| Ground, pump motor |
pin 16 |
| Working voltage |
9-16 volts |
| Power consumption, rest position |
<3 mA |
| The control module is integrated with the hydraulic unit. |
|
