Indicator lamp TCS OFF: Notes

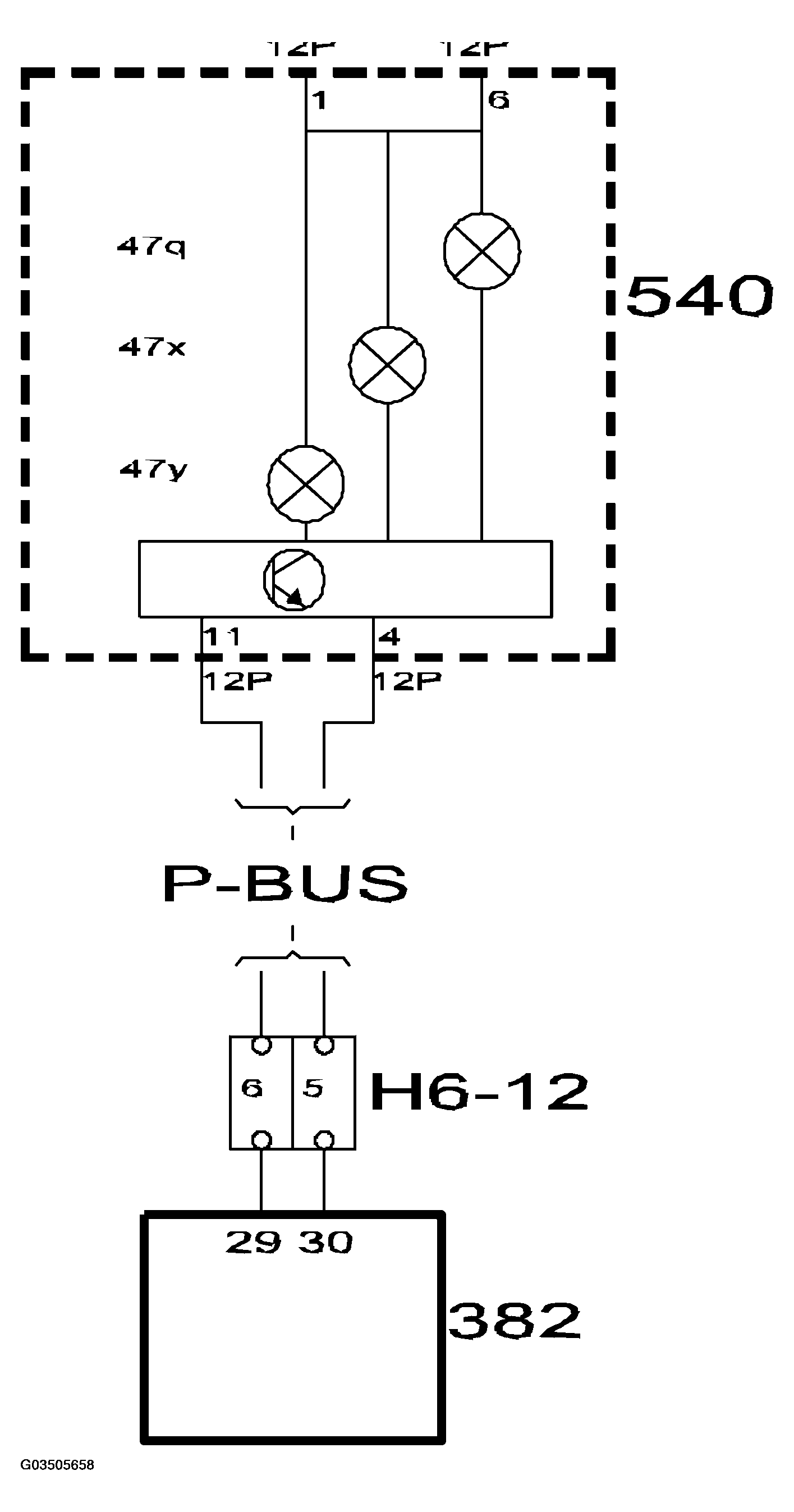

Fig 1: TCS Lamp - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

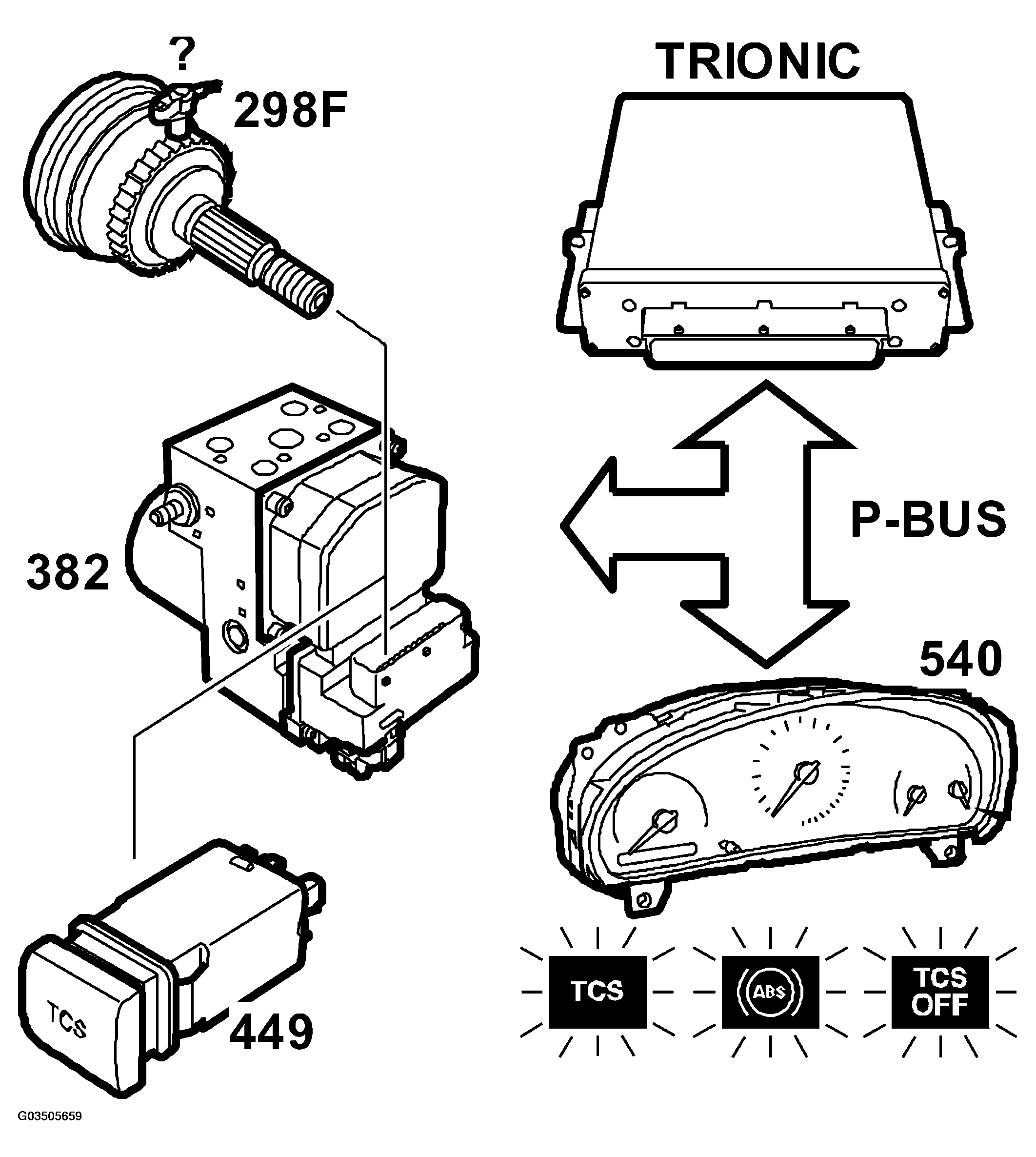

Fig 2: TCS Indicator Lamp OFF - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

If a fault should occur in the TC/ABS system, the TCS OFF lamp will be turned on via the P-bus. The warning lamp is also turned on when the system is disengaged manually, which can be done at speeds lower than 60 km/h (37.5 mph) by pressing in the TCS button. The system can be engaged by pressing in the TCS button at any speed, whereby the TCS OFF lamp will come on again.

The lamp lights up when the ignition is switched on. If no fault is detected it goes out after 3-5 seconds.
