Main components

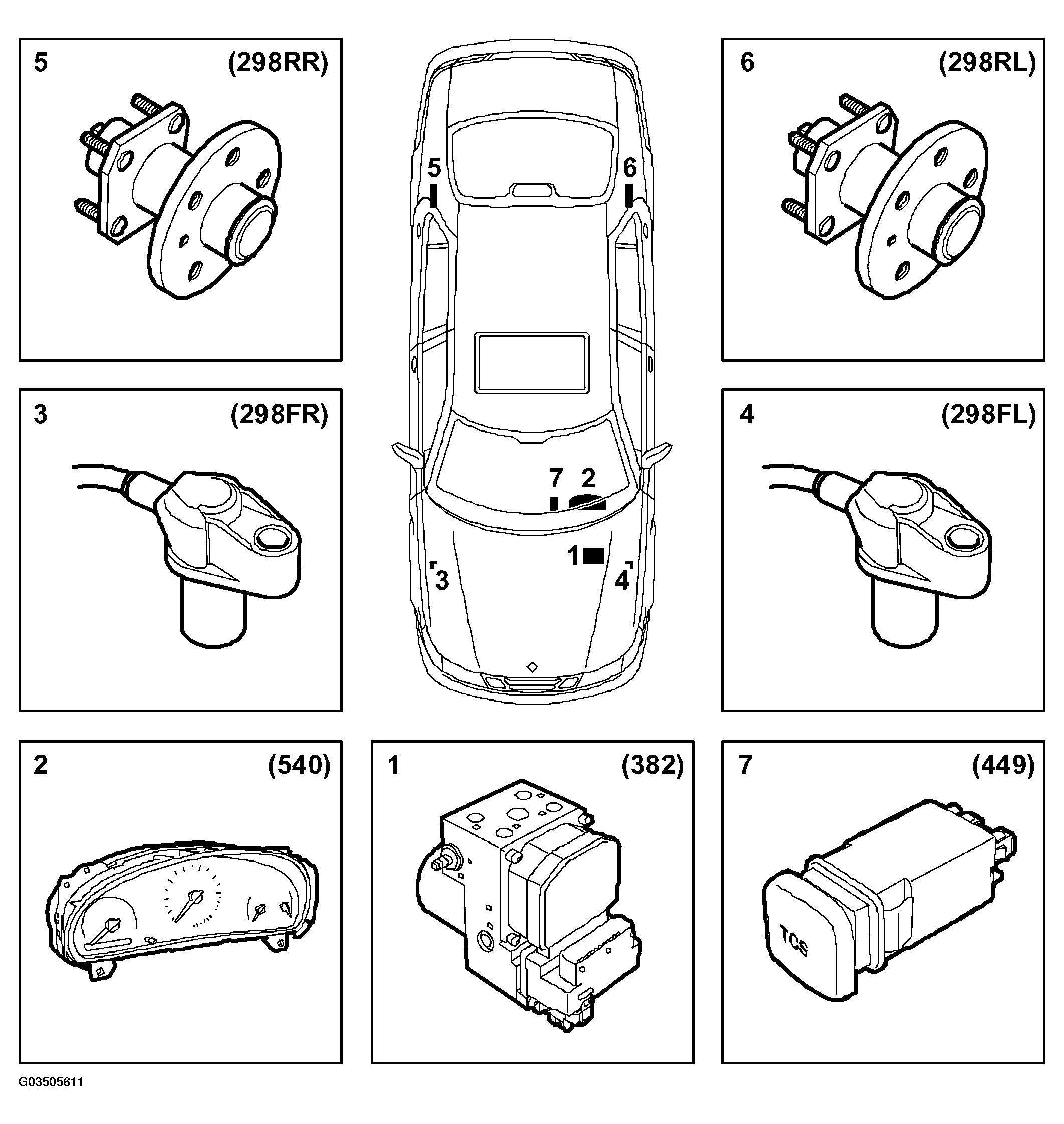

Fig 1: Identifying TC/ABS 5.3 Main Components
G03505611Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. HYDRAULIC UNIT  including control module, valve body and return pump (382)
  2. ABS WARNING LAMP , INDICATOR LAMP TCS OFF , TCS lamp (540)
  3. Wheel sensor, FR (298)
  4. Wheel sensor, FL (298)
  5. Wheel sensor, RR (298)
  6. Wheel sensor, RL (298)
  7. TCS ON/OFF switch (449
