Pedal position: Notes

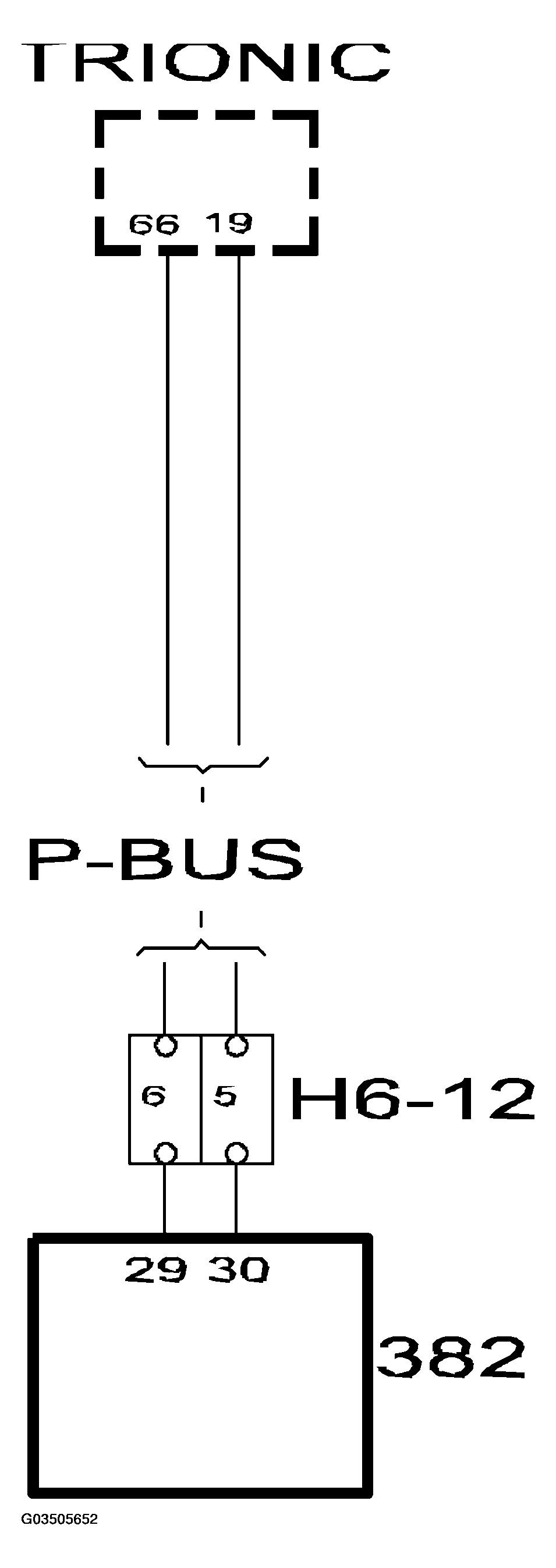

Fig 1: Engine Torque - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

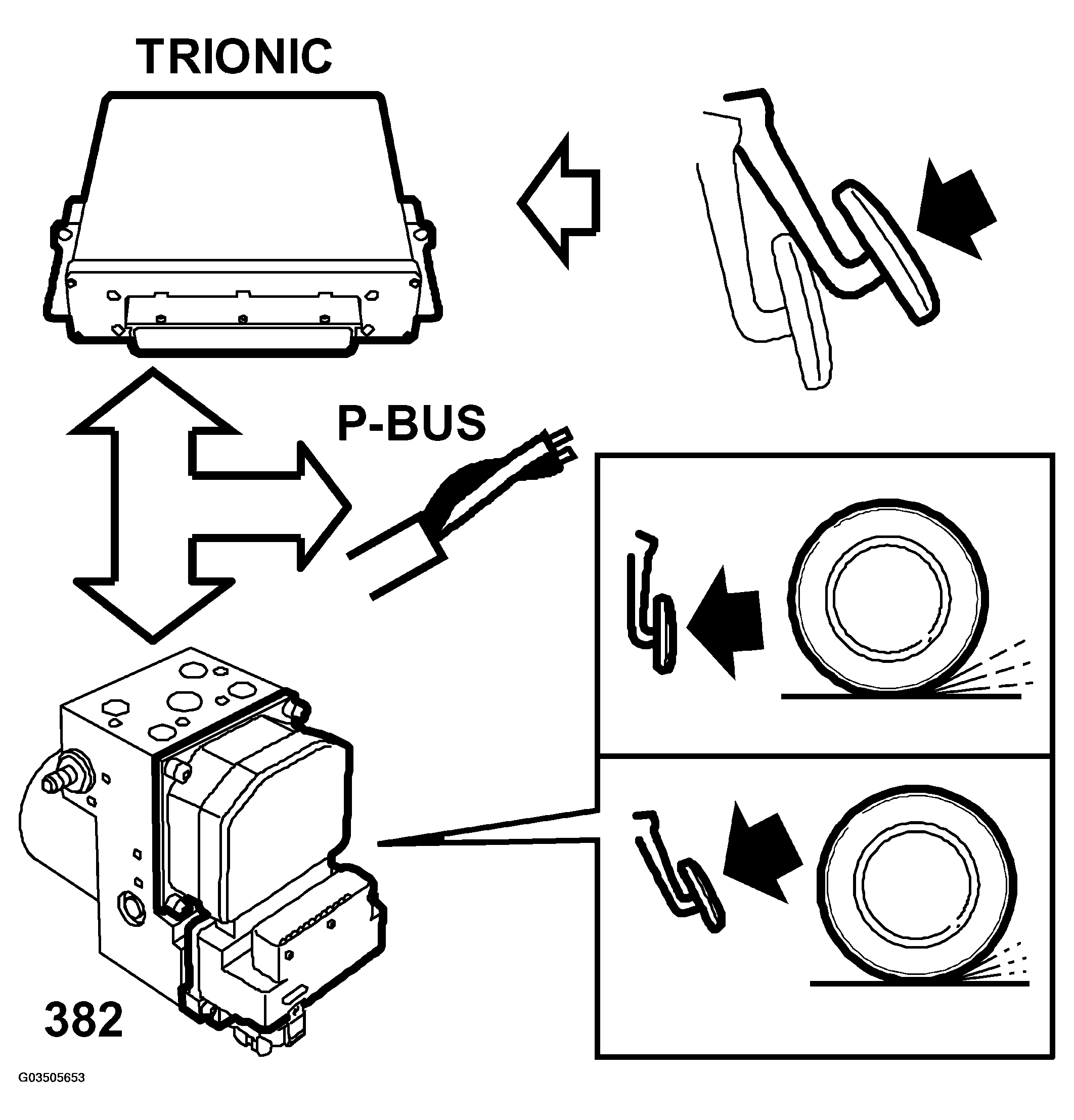

Fig 2: Pedal Position - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Information on the pedal position is sent on the P-bus by the engine management system. See also TRIONIC T7 .

The TC/ABS control module uses the information on pedal position to determine the degree of wheel spin to allow during TCS modulation. The system considers the pedal position to be the degree of aggressiveness the driver requests and allows a greater degree of wheel spin the more the pedal is depressed (pedal position increases as a percentage).

The TC/ABS control module uses the information on pedal position to determine the degree of wheel spin to allow during TCS modulation. The system considers the pedal position to be the degree of aggressiveness the driver requests and allows a greater degree of wheel spin the more the pedal is depressed (pedal position increases as a percentage).
