TCS lamp: Notes

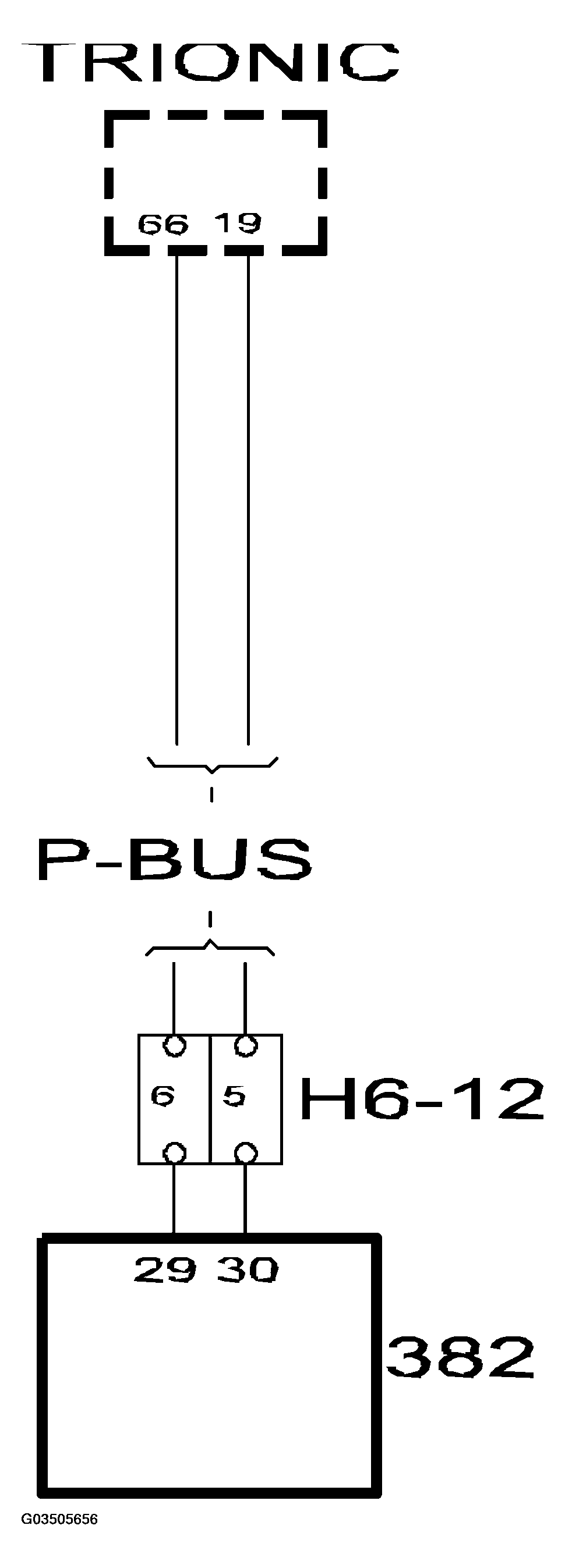

Fig 1: Engine RPM - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

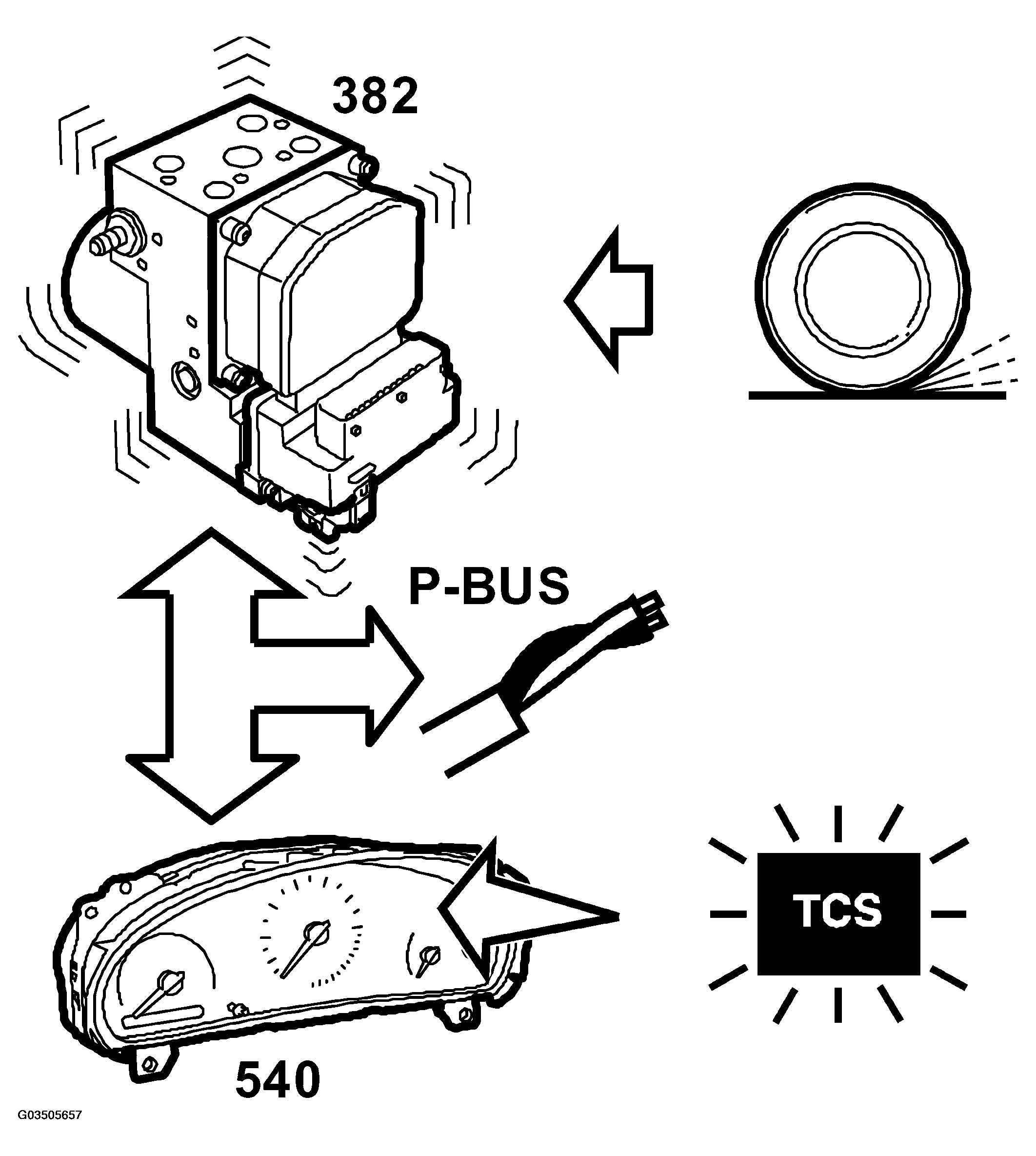

Fig 2: TCS Lamp - Communication Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The TCS lamp is situated on the left-hand side of the main instrument unit (in the tachometer). It comes on when the TCS function is active.

The lamp will by turned on by the information the TC/ABS control module sends on the P-bus.

The lamp comes on after a slight delay (300 ms) when TCS mode is enabled and then stays on as long as the system remains operative or for at least one second. When the ignition is switched on the lamp lights up for 3-5 seconds.
