Starter motor: Notes

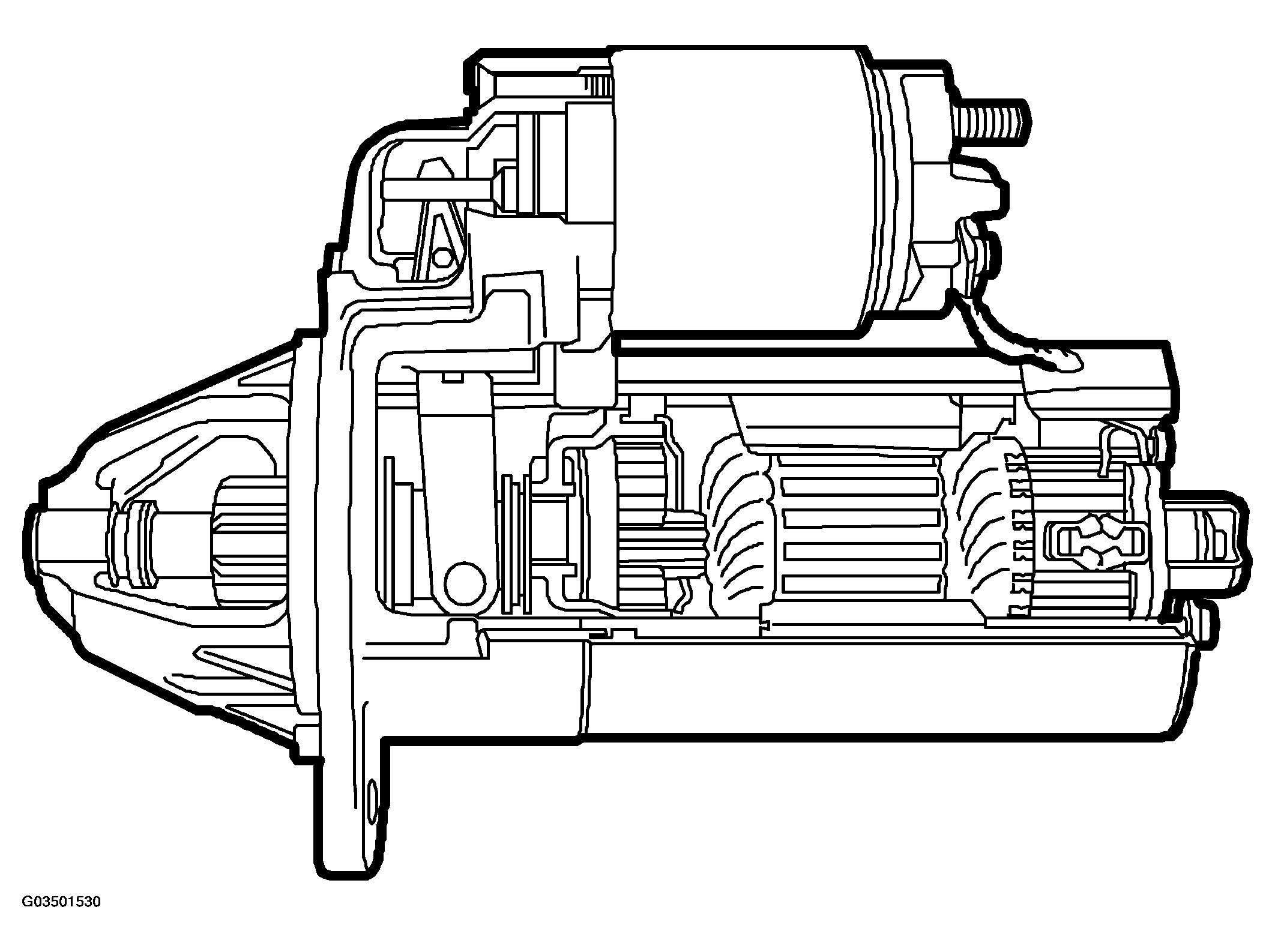

Fig 1: Cross Sectional View Of Starter Motor

The starter motor has permanent magnets to reduce strain on the battery.

A planetary gear increases the starting torque.

The starter motor circuit consists of tow sub-circuits:

• working circuit
• operating circuit
