Removal - Rear (V6)

  1. Remove the engine cover.
  2. Unplug the connector to the pressure sensor on the intake manifold. See Fig 1 .
  3. Remove the ignition discharge module. See Fig 2 .
  4. Unplug the ignition discharge module connector.

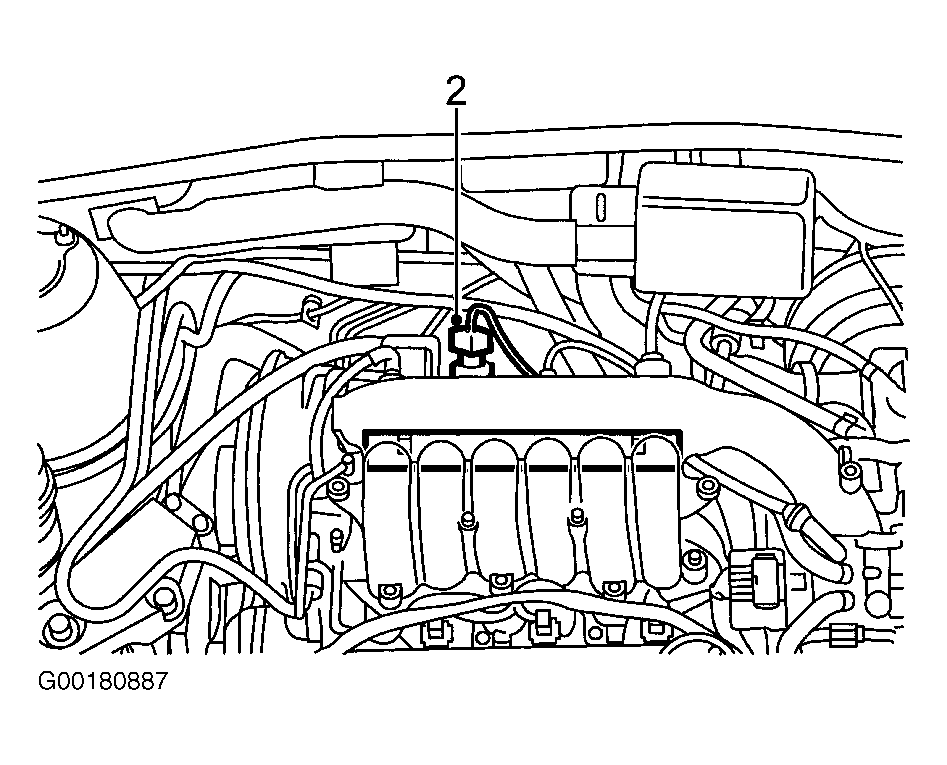

Fig 1: Detaching Pressure Sensor from Intake Manifold (V6)
G00180887Courtesy of SAAB-SCANIA OF AMERICA, INC.

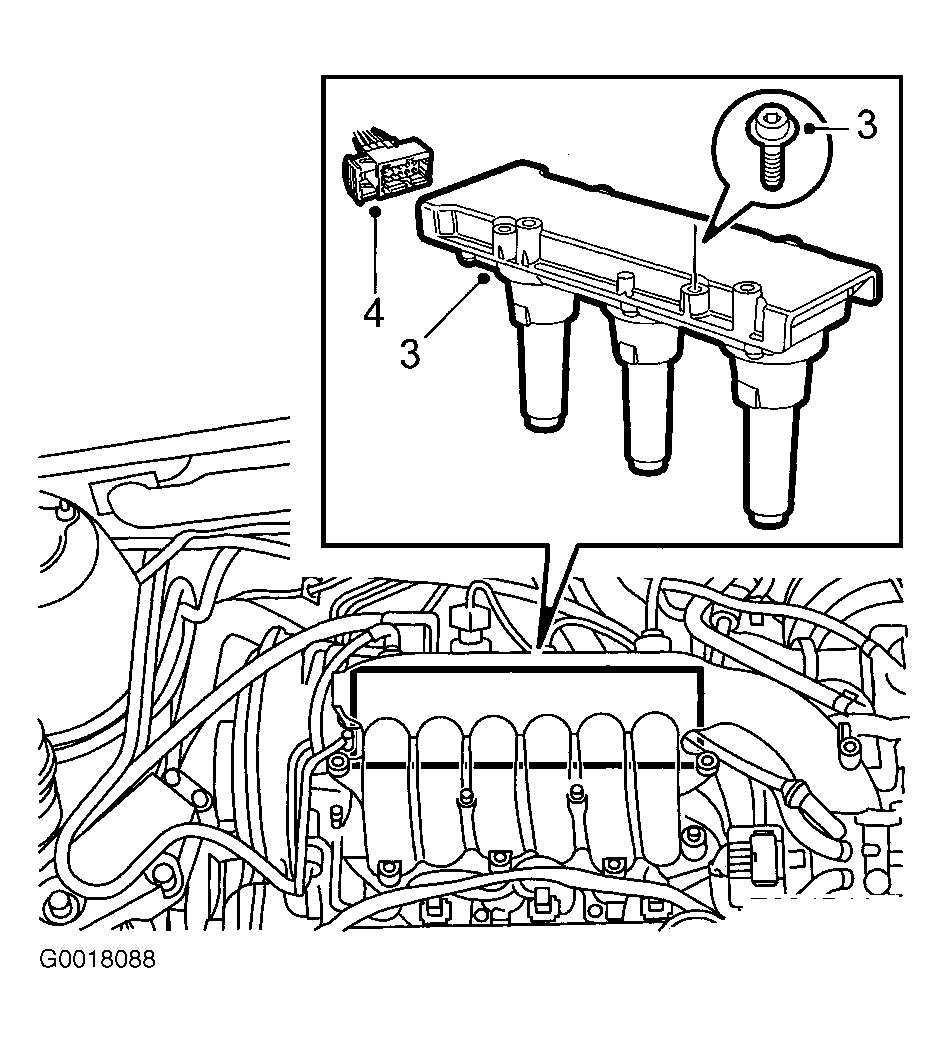

Fig 2: Removing Rear Ignition Discharge Module (V6)
G00180888Courtesy of SAAB-SCANIA OF AMERICA, INC.
