Control module, DICE (628): LHD

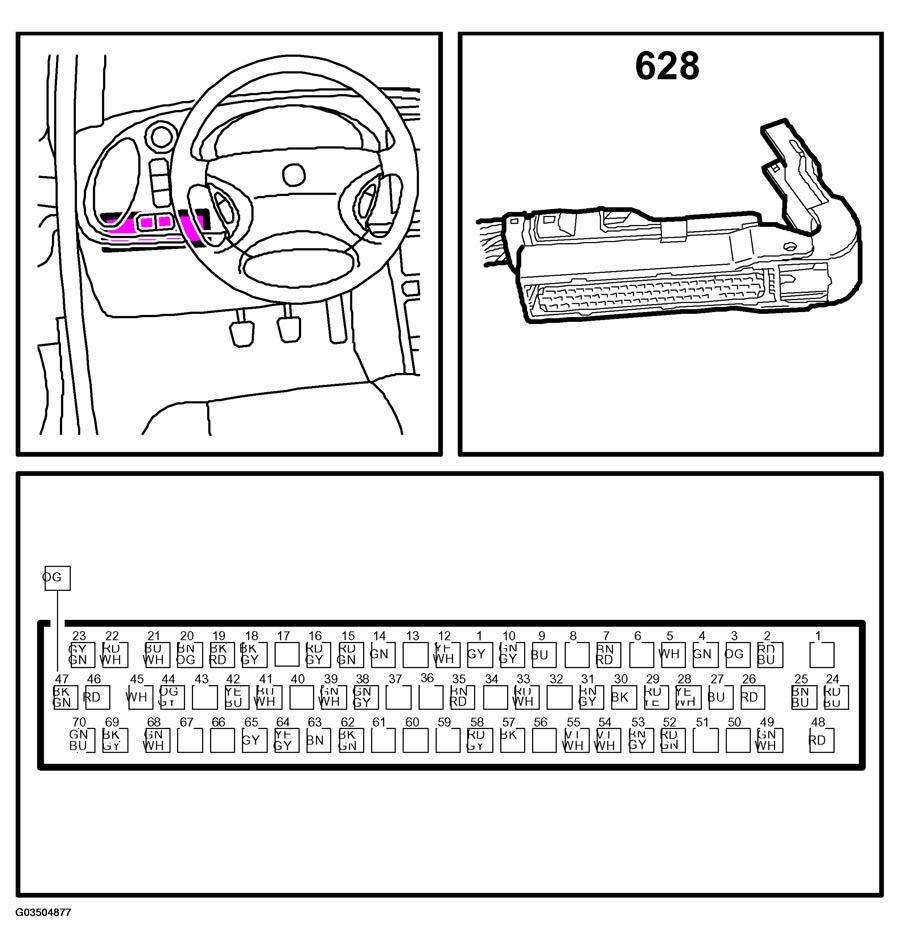

Fig 1: Identifying DICE Control Module Pinouts (LHD)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
